Summary of Contents for VocoPro UHF3200-6

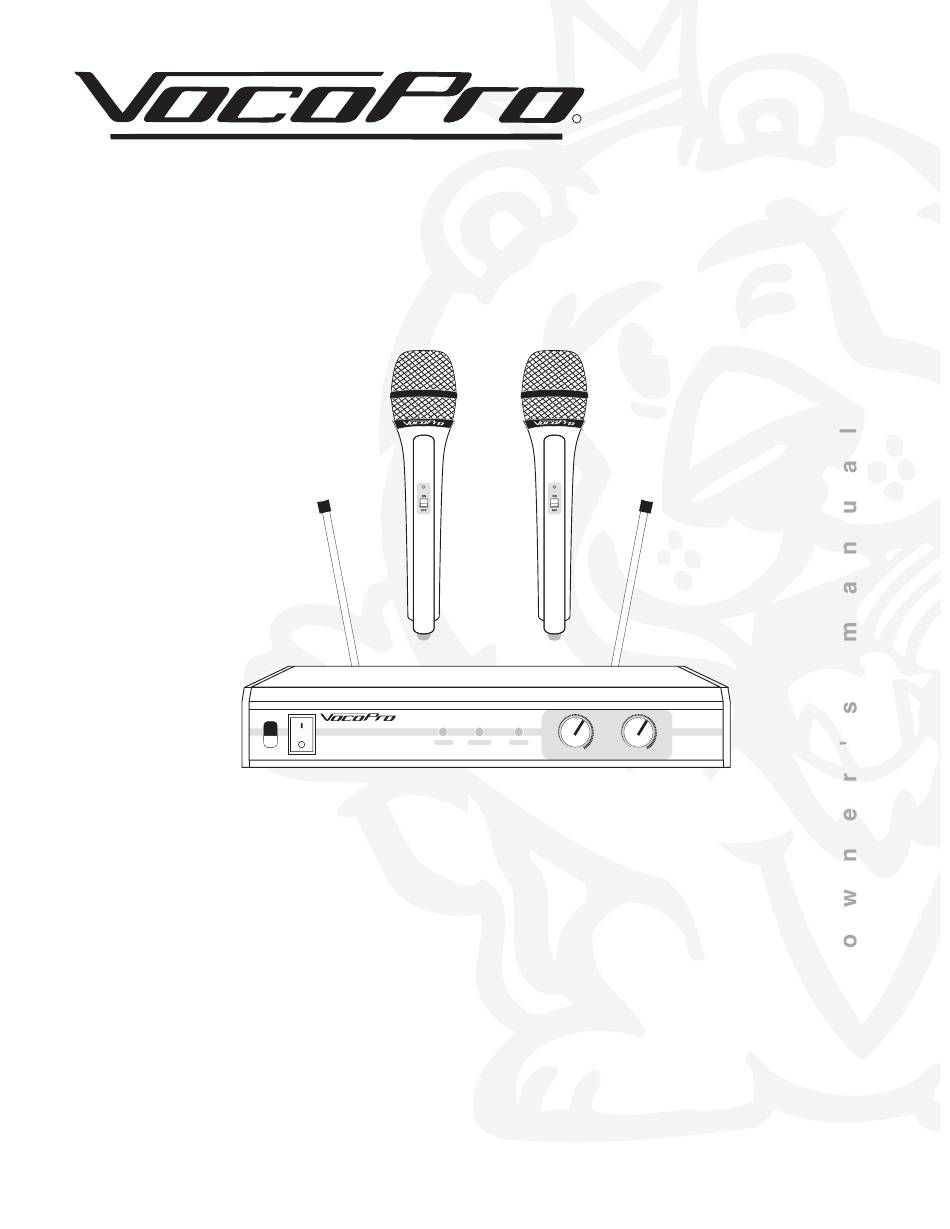

- Page 1 THE SINGER'S ULTIMATE CHOICE UHF-3200 VOLUME UHF DUAL CHANNEL WIRELESS CH. A POWER CH. B MICROPHONE SYSTEM UHF-3200 UHF-DUAL CHANNEL WIRELESS MICROPHONE SYSTEM...
- Page 2 Table of contents Safety instructions ......................2 FCC information ......................... 3 Welcome ........................... 4 Listening for a lifetime ......................5 Specifications and features ....................6 Getting started ........................7 Getting connected ......................8 Front and rear panel descriptions ..................9 Microphone descriptions ....................
- Page 3 Safety instructions 8. Ventilation - The appliance should be situated so its CAUTION location does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the RISK OF SHOCK ventilation slots.
- Page 4 FCC requirements. Modifications not expressly approved by 1. To ensure the finest performance, please read this Vocopro may void your authority, granted by the FCC, manual carefully. Keep it in a safe place for future reference. to use this product.
- Page 5 And while you're there don't forget to check out our Club VocoPro for Karaoke news and events, chat rooms, club directories and even a KJ Service directory! We look forward to hearing you sound like a PRO, with VocoPro, your ultimate choice in Karaoke entertainment. FOR YOUR RECORDS Please record the model number and serial number below, for easy reference, in case of loss or theft.
- Page 6 Now it s time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic Industries Association s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level.
- Page 7 Specifications and features SPECIFICATIONS Transmitter (microphones) Carrier Frequency: UHF 730~820 MHz Freq. Stability 0.002% Power Output 30mv Current Loss 55mA Maximum Distance 197’ (Approx.) Battery 1.5V (AA) x2 Dimensions 1.4” (W) x 9.5” (H) Receiver Sensitivity 2uV @ sinad=12dB Spurious rejection 75dB Image rejection 85dB...
- Page 8 Getting started Before starting any installation procedures, it is recommend that you completely unpack all of the package contents. The original packaging should be kept in the event that re-shipping is needed. Upon unpacking the UHF-3200, you should have received the following items: UHF-3200 receiver (1) AC power adapter (1) Handheld microphones (2)
- Page 9 RISK OF ELECTRICAL SHOCK DO NOT OPEN CAUTION: TO PREVENT ELECTRIC SHOCK, DO NOT REMOVE COVER SCREWS NO USER-SERVICEABLE PARTS INSIDE. DC INPUT REFER SERVICING TO QUALIFIED www.vocopro.com PERSONNEL 13V-18V .300mA SERIAL NO: CH. B OUT CH. A OUT MIX OUT...
- Page 10 DO NOT OPEN CAUTION: TO PREVENT ELECTRIC SHOCK, DO NOT REMOVE COVER SCREWS NO USER-SERVICEABLE PARTS INSIDE. DC INPUT REFER SERVICING TO QUALIFIED PERSONNEL www.vocopro.com 13V-18V .300mA SERIAL NO: CH. B OUT CH. A OUT MIX OUT LA VERNE CALIFORNIA...
- Page 11 Microphone descriptions Microphone MAINTENANCE PROCEDURES Handheld Microphone Battery Installation 1. To remove the lid, press down on the tab and slide the lid down towards the bottom of the mic. 2. Insert 2 fresh 1.5-volt AA alkaline batteries. Make sure the batteries are inserted in the right direction according to polarity (+/-).
- Page 12 Microphone basics Microphone Position The UHF-3200 is ideal for close-up vocals and can be held in the hand or mounted on a mic stand. The most common applications and placement techniques are listed below. Keep in mind that microphone technique is largely a matter of personal taste, and there is no one “correct”...
- Page 13 Operations If you will be using the UHF-3200 with stage monitors and/or P .A. system, try the following: • Place the stage monitor directly behind the microphone. • Locate the P .A. loudspeakers so that they point away from the rear of the microphone. (With the speakers located in these positions, the possibility of feedback is greatly reduced).
- Page 14 Troubleshooting PROBLEMS SOLUTIONS No sound; receiver RF light(s) and mic(s) not lit. Make sure POWER switches on transmitters and receiver are set to ON positions. Check microphone batteries to ensure they are providing power. Replace or charge batteries if necessary. Check receiver's AC power connection.
- Page 15 THE SINGER'S ULTIMATE CHOICE Vocopro 2005 V 1.0 WWW.VOCOPRO.COM...
