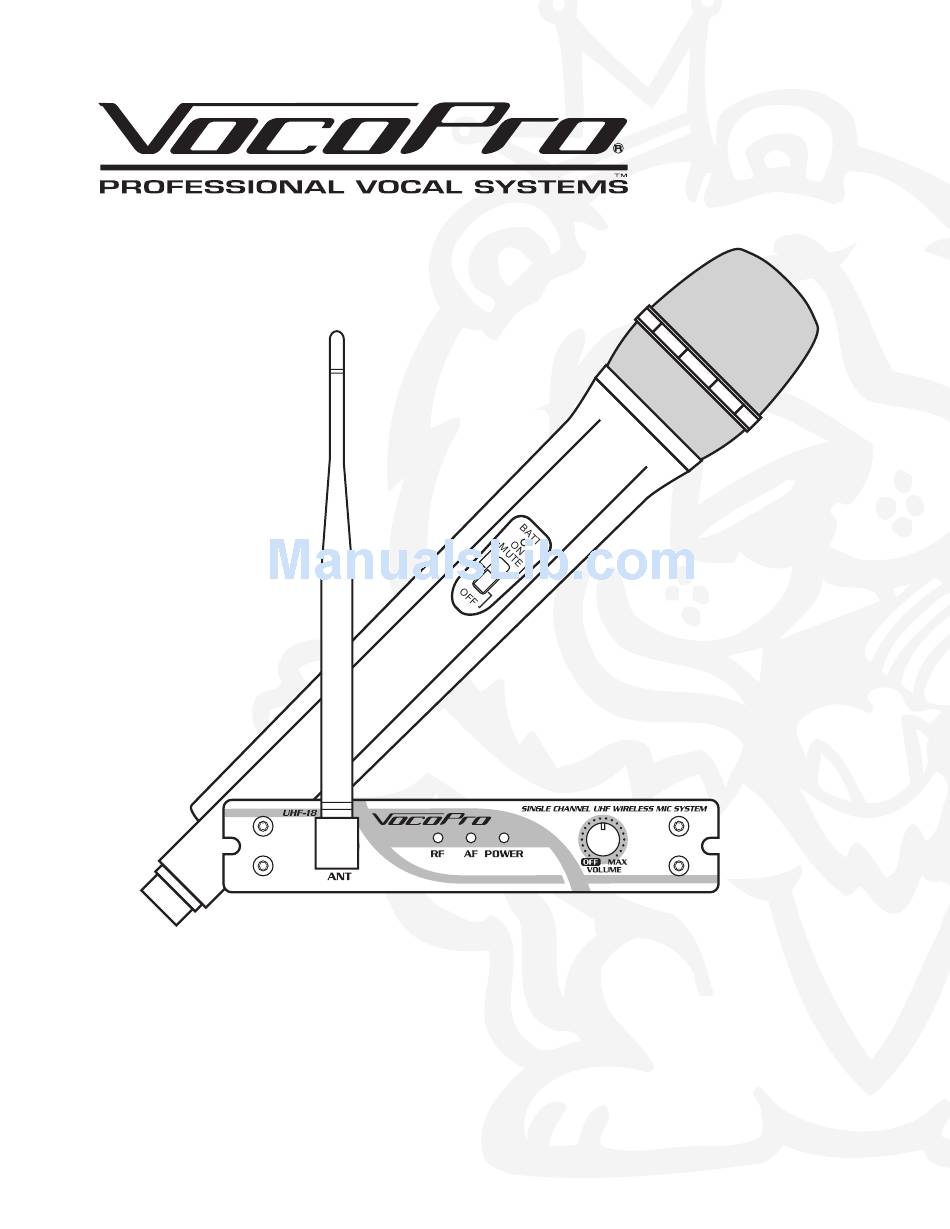

- Page 1 UHF-18 UHF-18 Single Channel Wireless Mic System Single Channel Wireless Mic System...
-
Page 3: Table Of Contents
Table of Contents Safety Instructions ....4 FCC Information ....5 Welcome..... 6 Listening for a Lifetime . -
Page 4: Safety Instructions
Safety Instructions 8. Ventilation - The appliance should be situated so its location does not interfere with its proper ventilation. CAUTION For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the RISK OF SHOCK ventilation slots. -
Page 5: Fcc Information
1. To ensure the finest performance, please read this requirements. Modifications not expressly approved by manual carefully. Keep it in a safe place for future Vocopro may void your authority, granted by the FCC, to reference. use this product. 2. Install your unit in a cool, dry, clean place - away from 2. -
Page 6: Welcome
And while you're there don't forget to check out our Club VocoPro for Karaoke news and events, chat rooms, club directories and even a KJ Service directory! We look forward to hearing you sound like a PRO, with VocoPro, the singer’s ultimate choice. FOR YOUR RECORDS Please record the model number and serial number below, for easy reference, in case of loss or theft. -
Page 7: Listening For A Lifetime
Now itʼs time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic Industries Associationʼs Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing. -
Page 8: Specifications And Features
The UHF-18 is a single channel UHF wireless microphone module that can add wireless capability to any system with a ¼” input. Designed as a plug-in module for VocoPro’s HERO-RV, CHAMPION-RV and SOUNDMAN series, the UHF-18 is also a stand alone module that can hook up to any audio system with a ¼”... -
Page 9: Before Getting Started
UHF-18 to ensure best performance. Unpacking the UHF-18: Carefully remove the UHF-18 from its carton. It is recommended that you store the original packaging materials in case you need to ship this equipment for any reason. Be sure you have the following parts and components included with your UHF-18:... -
Page 10: Getting Connected
To connect the UHF-18: 1. Use a 1/4” patch cable to connect the UHF-18 mic out to the 1/4” mic input on you mixer or other device. 2. Connect the power adapter cable to the DC power input of the UHF-18 and plug the adapter into the power source. A surge protector is recommended. - Page 11 Getting Connected Installing the UHF-18 in a compatible VocoPro unit The UHF-18 can be installed in a compatible VocoPro unit, such as the SOUNDMAN, DVD-SOUNDMAN, CHAMPION-RV and HERO-RV. To install the UHF-18: 1. Turn off the unit and unplug it from the power source.
-
Page 12: Descriptions And Functions
NOTE: Plugging in the power adapter when using the UHF-18 as a plug-in module may result in damage to the UHF-18. 2. 1/4” MIC OUT Jack - When using the UHF-18 as a stand-alone unit, connect a cable from this jack to the mic input on your mixer or other device. -
Page 13: Basic Operations
Basic Operations Using the UHF-18 The UHF-18 can be used as a plug-in module or as a stand-alone module. In both setups, the function of the UHF-18 is the same. To use the UHF-18: 1. Plug in all power sources. -
Page 14: Troubleshooting
• Make sure the UHF-18 is turned on by turning the Power/Volume knob clockwise. • Make sure all of your components are turned on. • When using the UHF-18 as a stand alone unit, make sure the power adapter is plugged in. There is no sound •... - Page 16 UHF-18 Owner’s Manual © VocoPro 2009 v1.1130 www.vocopro.com...
