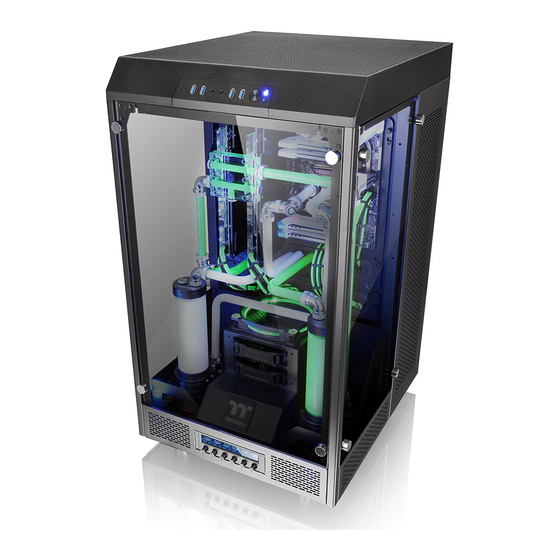

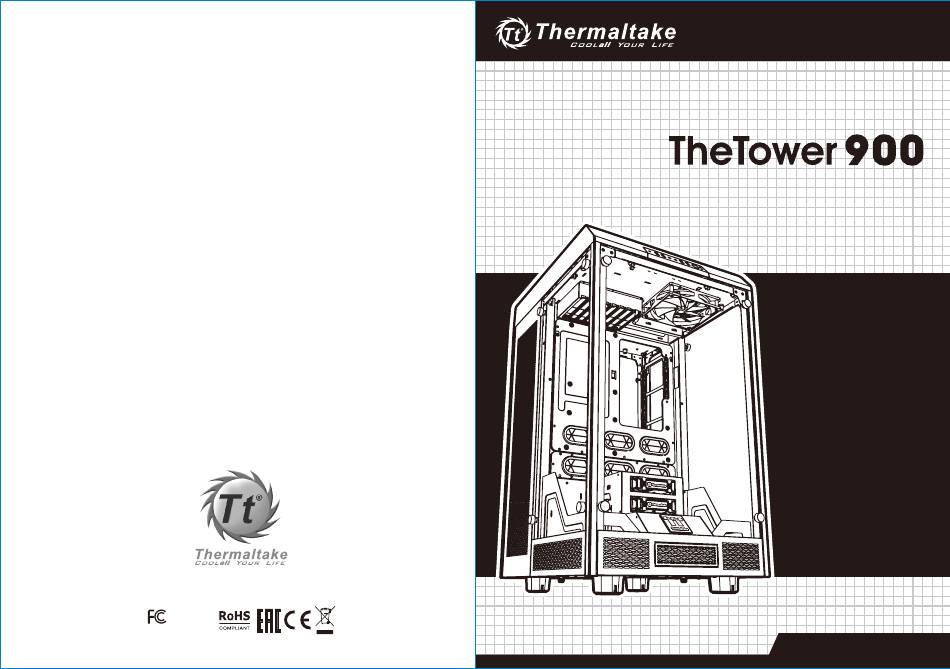

- Page 1 ユーザーズマニュアル Руководство пользователя kullanıcı elkitabı (EEE Yönetmeliğine Uygundur) คู ่ ม ื อ การใช้ © 2016 Thermaltake Technology Co., Ltd. All Rights Reserved. A-2016.10 All other registered trademarks belong to their respective companies. www.thermaltake.com Tested To Comply With FCC Standards FOR HOME OR OFFICE USE www.thermaltake.com...
- Page 2 Air Cooling Installation should be held to. The Tt LCS certification was created Liquid Cooling Installation so that we at Thermaltake can designate to all power users which chassis have been tested to be best Pump Installation compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
- Page 3 Specification Warning and Notice Case Type Super Tower Dimension (H*W*D) 752 x 423 x 483 mm (29.6 x 16.7 x 19 inch) Top (exhaust) : Cooling System 140 x 140 x 25 mm Turbo fan (1000rpm, 16dBA) x 2 1 x 5.25” Drive Bays - Accessible 6 x 3.5”...
- Page 4 Parts Disassembly Atenção!! Limite de altura para o dissipador do CPU: O limite de altura para o dissipador do CPU é 260 mm (10,2 polegadas). Limite de comprimento para VGA (placa gráfica): O limite de comprimento para VGA (placa gráfica) é 400 mm (15.7 polegadas). 警告！！...
- Page 6 Power Supply Unit (PSU) Installation Motherboard Installation English / 繁體中文 / 1. Place the PSU in proper location. 1. 將電源供應器放在正確的位置 2. Adjust the PSU supporting bridge to the proper 2. 將電源供應器支撐架調整到適當的位置，然後用螺絲 English / 繁體中文 / location and secure the PSU with screws. 固定電源供應器。...
- Page 7 Type B: HDD Installation (With HDD Tray) PCI Card Installation 3.5" HDD For 3.5" HDD: Secure 3.5" HDD from both side of the HDD tray by locking clips. 2.5" HDD/SSD For 2.5" HDD: Secure 2.5" HDD from the bottom of the HDD by screws. English / 繁體中文...
- Page 8 Air Cooling Installation Liquid Cooling Installation Top: 2 x 120mm 2 x 140mm Left / Right Side: 1 x 120mm or 1 x 240mm or 1 x 360mm or 1 x 480mm Rear: 1 x 140mm or 1 x 280mm or 1 x 420mm or 1 x 560mm 2 x 120mm or 2 x 140mm Rear HDD:...
- Page 9 Pump Installation Leads Installation English Leads Installation Guide Case LED Connection / On the front of the case, you can find some LEDs and switch leads. Please consult your user manual of your motherboard manufacturer, then connect these leads to the panel header on the motherboard. USB 3.0 connection / 1.
