DH Instruments RPM4 - RACK MOUNT KIT Installation Instructions

RACK MOUNT KIT, P/N 401929, INCLUDES
FIGURE
QTY PART NO CALLOUT
1 123699 1
2 124155 2
4 100972-Z 3
4 102668-Z 4
4 101016-Z 5
4 100918-Z 6
1 123703 7
1 123764 8
4 103448-Z N/A
INSTALLATION INSTRUCTIONS
Remove the four feet from the bottom of the
RPM4™ by removing the screw and then
removing the foot. Replace the screw with the
shorter M3 x 12 self-tapping screw included in this
kit. Repeat for the other three feet.
Place one side bracket (2) on each side of the RPM4.
Position each bracket
attachment flange (flange with two holes) facing
the front of the RPM4.
Attach the front panel (1) to the side brackets (2)
using four M4 split lock washers (4) and four M4
hex nuts (3). Recommended torque is 3 Nm.
Remove adhesive backing from foam strip (8).
Adhere the foam strip to the rear support bracket
(7), centering the foam as shown in figure 2.
Attach the rear support bracket (7) to the side
brackets (2) using four M4 flat washers (6) and
four M4 X 12 SHC screws (5). Recommended
torque is 3 Nm.
For adequate support of the RPM4, the rear
support bracket (7) shall be supported on the side
rails of the rack system or by other means.
Document 560061b
DH Instruments, Inc.
4765 East Beautiful Lane
Phoenix AZ 85044-5318
USA
DESCRIPTION
Front panel
Side bracket
M4 hex nut
M4 split lock washer
M4 x 12 SHC screw
M4 flat washer
Rear support bracket
Foam gasket
M3 x 12 self-tapping screw
with the front panel
RPM4 is a trademark, registered and otherwise, of DH Instruments, Inc.
RPM4™
Rack Mount Kit
P/N 401929
Installation Instructions

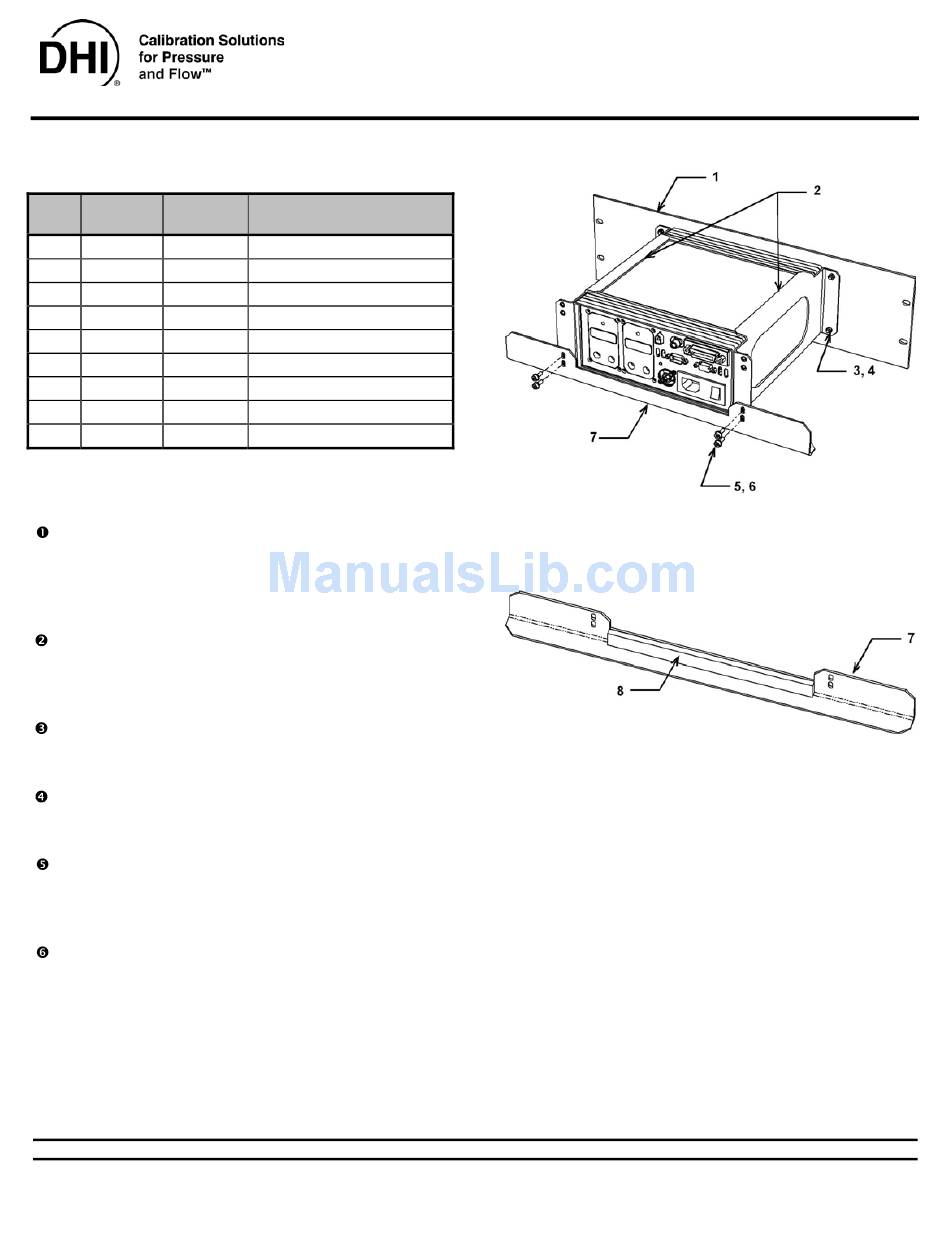

Figure 1. Rack Mount Kit
Figure 2. Rear Support Bracket and Foam
041124
