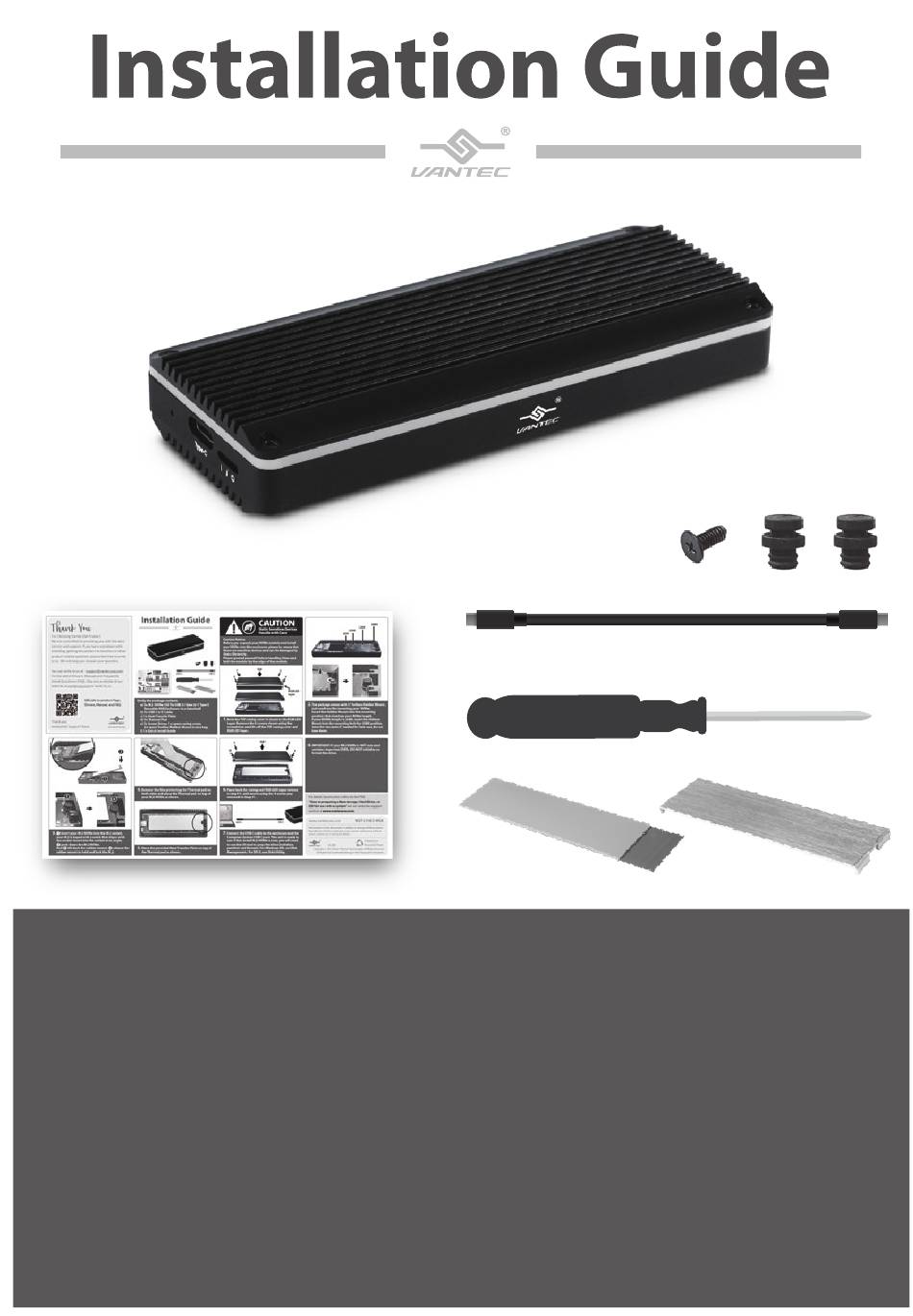

Verify the package contents.
a) 1x M.2 NVMe SSD To USB 3.1 Gen 2x1 Type C
Syncable RGB Enclosure in a clamshell
b) 1x USB C to C Cable
c) 1x Heat Transfer Plate
d) 1x Thermal Pad
e) 1x Screw Driver, 1 x spare casing screw,
2x spare Toolless Rubber Mount in one bag
f) 1x Quick Install Guide
USB-C
USB-C
Advertisement
Related Manuals for Vantec NST-210C3-RGB
Summary of Contents for Vantec NST-210C3-RGB
- Page 1 USB-C USB-C Verify the package contents. a) 1x M.2 NVMe SSD To USB 3.1 Gen 2x1 Type C Syncable RGB Enclosure in a clamshell b) 1x USB C to C Cable c) 1x Heat Transfer Plate d) 1x Thermal Pad e) 1x Screw Driver, 1 x spare casing screw, 2x spare Toolless Rubber Mount in one bag f) 1x Quick Install Guide...
- Page 2 CAUTION Static Sensitive Devices Handle with Care Caution Notice: Before you unpack your NVMe module and install your NVMe into the enclosure, please be aware that these are sensitive devices and can be damaged by Static Electricity. Please ground yourself before handling them and hold the module by the edge of the module.
- Page 3 2280 2260 2242 2230 . The package comes with 3 Toolless Rubber Mount, just need one for mounting your NVMe. Insert the Rubber Mount into the mounting position that matches your NVMe length. If your NVMe length is 2280, insert the Rubber Mount into the mounting hole for 2280 position.
- Page 4 ❶ Insert your M.2 NVMe into the M.2 socket, your M.2 is keyed with a notch that aligns with the socket. Insert into the socket at an angle, ❷ push down the M.2 NVMe. ❸ ❹ tilt back the rubber mount, release the rubber mount to hold and lock the M.2.
- Page 5 Remove the lm protecting the Thermal pad on both sides and place the Thermal pad on top of your M.2 NVMe as shown. Place the provided Heat Transfer Plate on top of the Thermal pad as shown.
- Page 6 . Place back the casing and RGB LED Layer remove in step #1, and secure using the 4 screws you removed in Step #1. USB-C USB-C . Connect the USB C cable to the enclosure and the Computer System USB C port. The unit is ready to use.
- Page 7 Information in this document is subject to change without notice. Reproduction of these materials in any manner whatsoever without written permission is strictly forbidden. Printed on v1.01 Recycled Paper. Copyright © 2021 Vantec Thermal Technologies. All Rights Reserved. All Registered Trademarks Belong to Their Respective Companies.
- Page 8 hank You For Choosing VantecUSA Product. We are committed to providing you with the best service and support. If you have a problem with installing, getting the product to function or other product related question, please feel free to write to us.
