Vantec NST-210S2-BK User Manual

User's Manual
M od el :NS T- 210S 2-BK
www.vantecusa.com
All Registered Trademarks Belong To Their Respective Companies. Copyright © 2011 Vantec Thermal Technologies. All Rights Reserved.
5.Installation
5-1 Connect the 2.5" hard drive to the SATA/Power connector.
(Note: Please place the clear plastic hard drive protector on the circuit board of the hard drive.)
Plastic
Protector
4
1.Introduction

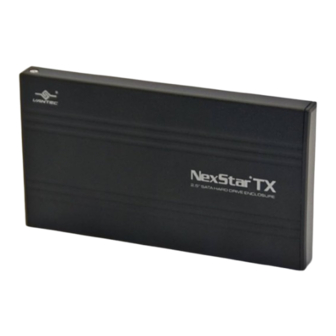

Vantec® introduces its NexStar® TX 2.5" External Hard Drive Enclosure. Ideal for anyone in
need of portable storage, the NexStar® TX's slim pocket design makes it a convenient way
to carry your data. The NexStar® TX turns any SATA 2.5" Hard Drive into a convenient hard
drive that can be used on any system with a USB port. In addition, the aluminum casing
protects the drive from overheating and vibration. The NexStar® TX supports USB 1.1 and
USB 2.0 to offer fast transfer speeds of up to 480MBPS. The Vantec® NexStar® TX 2.5" External
Hard Drive Enclosure is great for anyone who requires a high performance, lightweight, and
durable portable storage solution.
2.System Requlrements
Intel Pentium II 350 MHz Compatible or Mac G3 Processor & Greater
Microsoft Windows 2000/XP/Vista or Mac OS 8.6 & Greater
USB-Equipped System
For USB 2.0 Speeds, the System Must Support USB 2.0 Specifications
1
5-2 Insert the hard drive caddy back into the NexStar TX housing as the picture
below. Be sure to align the caddy with the guides within the housing.
5
3.Specifications/Features
Features：
Aluminum Casing Cools Down Your Hard Drive.
Transfer Rates Up to 480Mbps w/USB 2.0.
Easily Add Storage to Any System with USB.
Hot-Swappable: Plug & Play Without Rebooting.
Power & HDD Activity Light.
Supports 9.5 & 12mm HDD/SSDs
Specifications： Package Includes：
®
Device Support：SATA I/II Hard Drive 2.5" NexStar TX Enclosure
Device Size：2.5" (9.5 & 12mm Height) USB Y-Cable
Internal Interface：SATA User's Manual
External Interface：USB 2.0
Installation Screws
HD Capacity：Up to 1TB*
Carrying Pouch
Material：Aluminum
Dimension：129 x 78 x 16mm
*HD Capacity is subject to change. Please check our website www.vantecusa.com for most updated HD Capacity.
2
5-3 Secure the caddy to the housing using the screws provided.
6
4.Parts Layout
：
NexStar TX External 2.5" HDD Enclosure
SATA/Power Connector
USB 2.0
LED Light
3
6. Warranty
The NexStar® TX comes with a 1 year limited warranty (90 day parts). If your unit
become defective within that time frame, please go to http://www.vantecusa.com for
information on how to receive warranty exchange or repair. Cosmetic defects and
missing parts are not covered under this warranty. Please check the contents of the unit
to make sure you received all parts.Also,check for any cosmetic flaws. If any parts are
missing or if there are cosmetic defects, Please contact the retailer from which you
purchased the unit immediately and ask for a replacement.
Vantec Thermal Technologies
website: www.vantecusa.com
7
