Vantec External Hard Drive Enclosure NexStar CX Owner's Manual

Owner's Manual
M od el :NS T- 200S 2-BK
www.vantecusa.com
All Registered Trademarks Belong To Their Respected Companies. Copyright © 2007 Vantec Thermal Technologies. All Rights Reserved.
4.Installation
4-1 Connect the 2.5" hard drive to the SATA/Power connector.
4
1.Introduction
Vantec introduces its NexStar CX 2.5" External Hard Drive Enclosure. Ideal for anyone in
need of portable storage,the NexStar's slim pocket design makes it a convenient way to
carry your data. The NexStar CX turns any SATA 2.5" Hard Drive into a convenient hard
drive that can be used on any system with a USB port. In addition, the aluminum casing
protects the drive from overheating and vibration. The NexStar CX supports USB 1.1 and
USB 2.0 to offer fast transfer speeds of up to 480Mbps. The Vantec NexStar CX 2.5" External
Hard Drive Enclosure is great for anyone who requires a high performance, lightweight,
and durable portable storage solution.
2.System Requlrements
Intel Pentium II 350 MHz Compatible or Mac G3 Processor & Greater
Microsoft Windows 98SE/ME/2000/XP/Vista or Mac OS 8.6 & Greater USB-Equipped System
For USB 2.0 Speeds, the System Must Support USB 2.0 Specifications
1
4-2 Insert the hard drive caddy back into the NexStar CX housing as the picture
below. Be sure to align the caddy with the guides within the housing.
5
3.Specifications/Features
Features：
Aluminum Casing Cools Down Your Hard Drive.
Transfer Rates Up to 480Mbps w/USB 2.0.
Easily Add Storage to Any System with USB.
Hot-Swappable: Plug & Play Without Rebooting.
Attractive Blue LED Indicates Power & HDD Activity.
Specifications： Package Includes：
Device Support：SATA I/II Hard Drive 2.5" NexStar CX Enclosure
Device Size：2.5" USB Y-Cable
Internal Interface：SATA User Manual
External Interface：USB 2.0 Installation Screws
Material：Aluminum
Dimension：135 x 82 x 13mm
2
4-3 Secure the caddy to the housing using the screws provided.
6

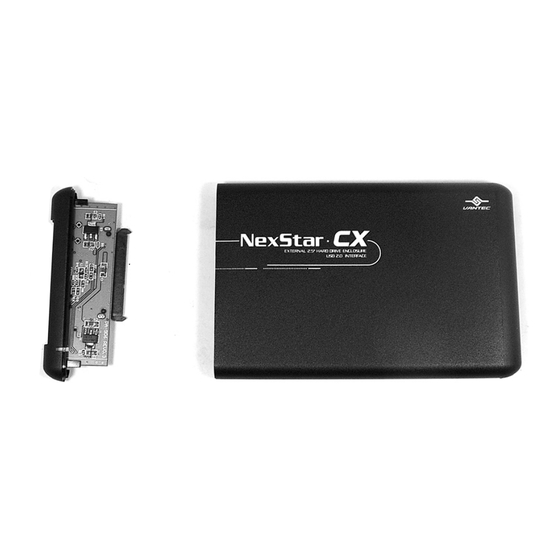

3.Parts Layout
：
NexStar CX External 2.5" HDD Enclosure
SATA/Power Connector
LED Light
3
5. Warranty
The Nexstar CX comes with a 1 year limited warranty (90 day parts). If your unit become
defective within that time frame, please go to http://www.vantecusa.com for
information on how to receive warranty exchange or repair. Cosmetic defects and
missing parts are not covered under this warranty. Please check the contents of the unit
to make sure you received all parts.Also,check for any cosmetic flaws. If any parts are
missing or if there are cosmetic defects, Please contact the retailer from which you
purchased the unit immediately and ask for a replacement.
Vantec Thermal Technologies
43951 Boscell Rd.
Fremont, CA 94538
tel: 510-668-0368
fax: 510-668-0367
website: www.vantecusa.com
