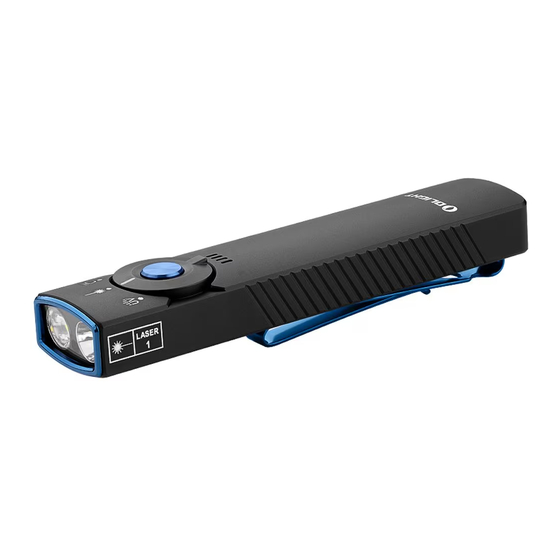

- Page 1 Three Light Sources Portable EDC Flashlight.
- Page 2 Max Output: 5mW @510nm~530nm Wavelength Caution: Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Above data are tested per ANSI/PLATO FL 1-2019 standard in Olight's labs for reference.
- Page 3 0.5m Cable length Input USB-A DC 5V 1A CC&CV 4.2V 1A Output About 2.5 hours Time to fully charge Figure 1 Lock/Unlock Press and hold >1 sec >2 sec Figure 2 Charging GREEN Charging Completed Charging Battery Level Indicator...
- Page 4 Figure 3 Selector---Switch Mode: Laser UV Light White Light Rotate the selector Rotate the selector counterclockwise clockwise Selector Button Mode change...
- Page 5 OPERATE IN WHITE LIGHT MODE Figure 4 ON/OFF Press Figure 5 Moonlight Press and hold 1 to 2 sec Moonlight...
- Page 6 Figure 6 Turbo Triple press TURBO Figure 7 Strobe Double press Strobe...
- Page 7 Figure 8 Change Brightness Level Press and hold Moonlight Turbo High Medium Figure 9 Timed shutdown Double press and hold Blink once : 3 min Blink twice : 9 min...
- Page 8 OPERATE IN LASER MODE Figure 10 ON/ OFF Press Figure 11 Turn on the white light while the laser on Double press OFF(white light) ON(High)
- Page 9 Figure 12 Turn off the white light while the laser on Double press ON (white light) Figure 13 When the laser and white light are turned on at the same time, change the brightness of the white light Press and hold High Medium...
- Page 10 OPERATE IN UV MODE Figure 14 ON/ OFF Press Figure 15 Battery Level Indicator Display Four green indicators (>75%) Three green indicators (50%-75%) Two green indicators (25%-50%) One green indicator (10%-25%) * One red indicator (＜10%)
- Page 11 （ EN ） English Multi-language dictionary, see Table 3; 1. Please refer to Table 1 and Table 2 for product specifications; 2. Lock/unlock, see Figure 1; When the light is off, press and hold the button (about 2 seconds) until you see moonlight mode, the laser (Laser mode), or UV light (UV mode) turn on and then quickly off, the flashlight has then been locked out.
- Page 12 7. In UV mode, turn on/off the flashlight, see Figure 14; Single press the button to turn on or off the UV light; 8. Battery level indicator display, see Figure 15; （ CN ） 简体中文 多语言字典，参见 Table 3; 1. 产品参数参见 Table 1与Table 2； 2.
- Page 13 The warranty covers defects in material and workmanship under normal use, excluding loss, theft, deliberate damage, or cosmetic damage. For complete warranty information, please visit Olight.com or your local Olight official website. Australia Customer Support: contact@olightstore.com.au Austria Customer Support: kontakt@olightstore.at Canada Customer Support: cs@olightstore.ca...
