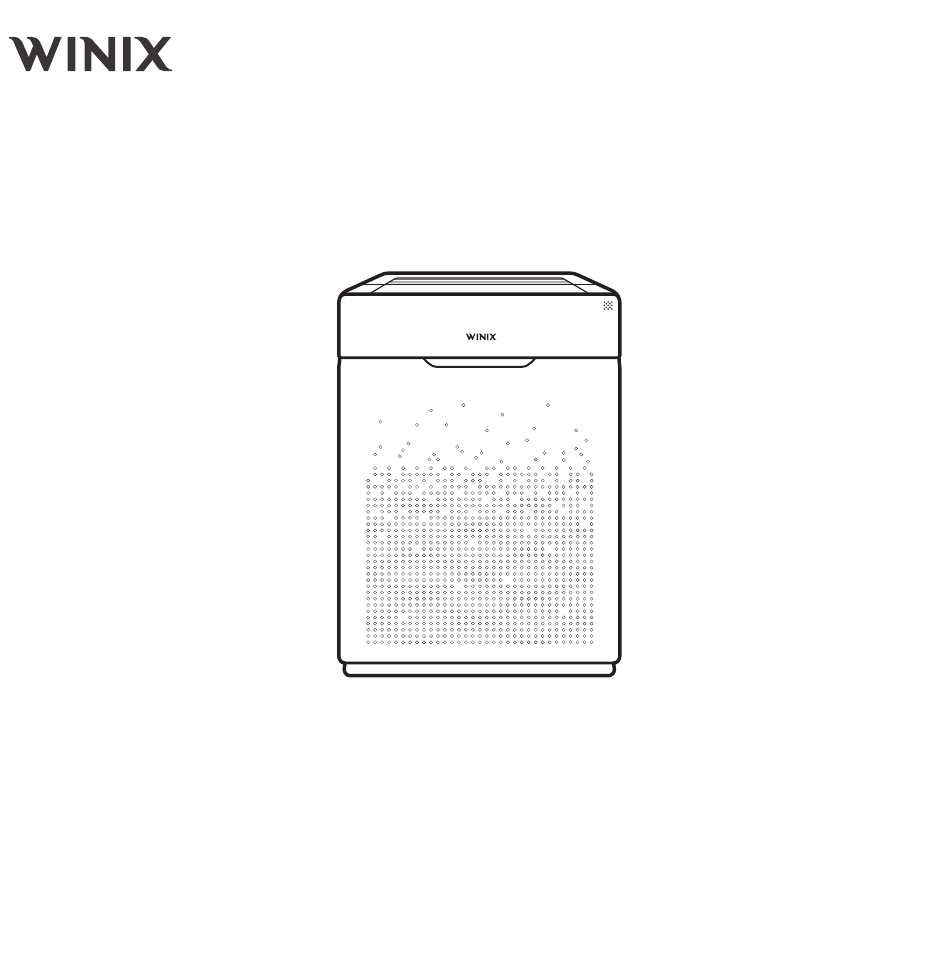

- Page 1 User Manual AIR PURIFIER Model HR900 Use & Care • The product warranty is printed on the back of this guide. Guide • This product is manufactured for use only in USA/CA. • This product is suitable for 120V only.
- Page 2 MODEL PART DIAGRAM FRONT BACK Control Panel Air Outlet Vent Handle Dust sensor Front Panel Power plug PACKAGE CONTENTS Pre-Filter / User Card 12 Pet Filter Unit AOC™ Carbon Filter/ Give Away Manual True HEPA Filter WHERE TO USE Allow 12 ~ 18 in. of space between TVs, radios, and other electronics Electromagnetic interference from certain electronics may cause product malfunction.
- Page 3 CONTROL PANEL 01. Odor Sensor 10. Mode button When in Auto Mode, detects the amount of odor in the Press to cycle through and set the desired mode of environment to adjust fan speeds. operation (Auto, Sleep, Manual mode). Set desired fan speed by using Auto, Sleep or Manual Mode.
- Page 4 Timer button for 3 seconds. for 3 seconds. For optimal performance, INSTALLING THE PET FILTER only genuine Winix filters should be used with your Winix Air Purifier Taps Taps Latch Latch Remove the front panel by grasping the upper edges Replace the front panel by first inserting the latch and gently pulling the front panel toward yourself.
- Page 5 5-STAGE AIR PURIFICATION Pet Filter Pre-Filter AOC™ Carbon Filter True HEPA Filter PlasmaWave® 01. Pet Filter 04. True HEPA Filter • First line of defense traps the largest particles, dander, Captures 99.97%* of airborne allergens including; and pet hair. pollen, mold spores, dust, pet dander, microbes, and smoke.
- Page 6 INITIAL OPERATION Latch Remove the front panel by grasping its upper Install the filters until they fit securely in place. edge and gently pulling forward. 04. True HEPA Filter (back) 03. AOC™ Carbon Filter (middle) 02. Pre-Filter (front) Latch Remove the Pre-Filter, then the plastic bag of After filters are installed close the front panel.
- Page 7 REPLACING FILTERS After replacing a filter, press the RESET button for at least 5 seconds. CLEANING CARE Cleaning the filters Cleaning the Exterior & Interior Use a vacuum cleaner or soft brush to clean the Pre-Filter. • If it is excessively soiled, rinse in room temperature water. Open the front panel and clean the interior with a •...
- Page 8 SAFETY AND CAUTIONS Before operating this equipment, carefully read and Do not pull on the power cord when unplugging the follow these safety cautions unit. Ensure filters are inserted before running unit Do not tie or knot the power cord when unit is in Running the unit without filters can shorten the unit operation.
- Page 9 SAFETY INSTRUCTIONS Thank you for purchasing a Winix air purifier. This product is for household use only. IMPORTANT CAUTIONS FOR USING YOUR AIR PURIFIER WARNING : Follow the instructions in this manual to reduce the risk of electric shock, short circuit, and/or fire.
- Page 10 Light Sensor detects that the room is dark. PRODUCT WARRANTY The terms of the warranty are as follows. Product Name Air purifier Model Name HR900 This product is manufactured under stringent Purchase Date quality control and inspections. Warranty period Two (2) years...
- Page 11 UNIT SPECIFICATIONS Model Name HR900 Power Voltage AC120V/60Hz Power Rate 90 W Verified Room Size 300 sq.ft. Dimensions 16.3 in(W) × 9.6 in(D) × 23.6 in (H) Weight 18.7 lbs Replacement Filter Filter T / SKU : 1712-0093-00 & Filter U / SKU : 1712-0094-00 The exterior, design, and product specifications may be changed without prior notice to improve product performance.
- Page 12 The energy efficiency of this ENERGY STAR certified model is measured based on a ratio between the model’s CADR for Smoke and the electrical energy it consumes, or CADR/Watt. Contact Winix for • Dedicated Call Center : (877) 699-4649 ☎...
