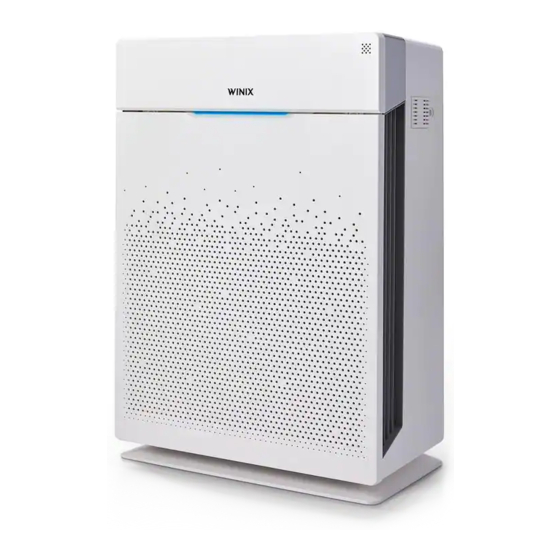

Winix HR900 User Manual

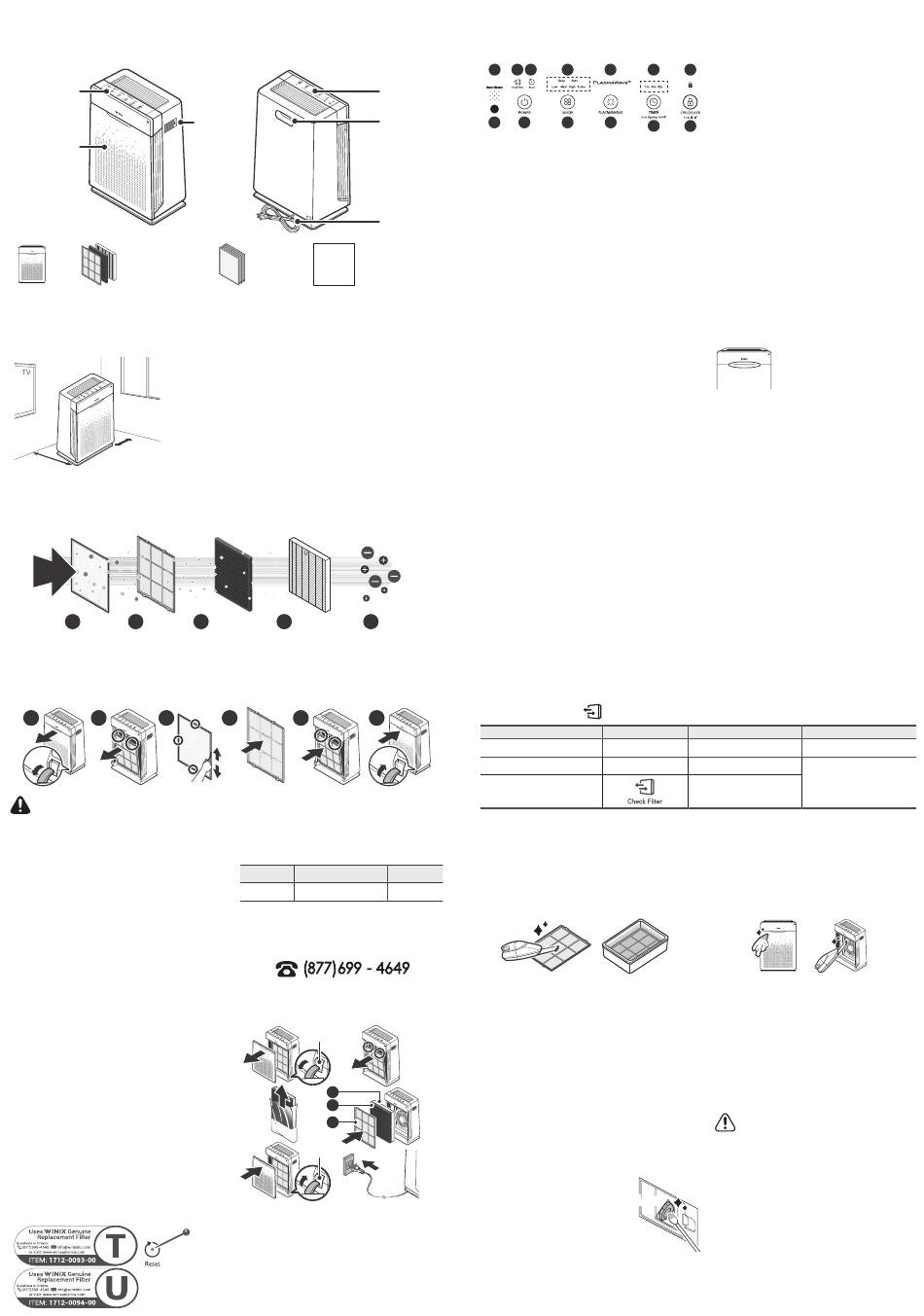

MODEL PART DIAGRAM
FRONT
Control Panel
Front Panel
PACKAGE CONTENTS
(1) Pre-Filter
(1) Washable AOC™
Unit
Carbon Filter
(1) True HEPA Filter
WHERE TO USE
Allow 12 ~ 18 in. of space between TVs, radios, and other
electronics
Electromagnetic interference from certain electronics may cause
product malfunction.
Place indoors away from direct sunlight
Direct exposure may cause product malfunction or failure.
Only place on hard, flat surfaces
12~18 in
Flimsy or slanted surfaces may result in abnormal noise and
vibrations.
12~18 in
Allow at least 12 ~ 18 in. from walls for maximum air flow
5-STAGE AIR PURIFICATION
Pet Filter Pre-Filter
01 02
INSTALLING THE PET FILTER
1 2 3
Tabs
Latch
For optimal performance, only genuine Winix filters
should be used with your Winix Air Purifier
1.
Remove the front panel by grasping the upper
edges and gently pulling the front panel toward
yourself. The latch at the lower edge of the
panel must be released from its position.
2.
Press the tabs on the top edge of the Pre-Filter
to remove it.
3.
Remove the liner around the outside of the
Pre-Filter to reveal the adhesive tape.
4.
Attach the Pet Filter to the front of the Pre-Filter.
Press the adhesive tape around the edge of the
Pet Filter to adhere it to the Pet Filter.
5.
Insert the Pre-Filter. Insert the bottom tabs into the
slots on both sides of the lower part of the unit.
Rotate the top of the filter upward and snap the upper
tabs into the slots securing the Pre-Filter in place.
INITIAL OPERATION
1.
Remove the front panel by grasping its upper
edge and gently pulling forward.
2.
Remove the Pre-Filter, then the plastic bag of
filters behind it.
3.
Remove filters from protective plastic bag.
4.
Install the filters until they fit securely in place.
04. True HEPA Filter (back)
03. Washable AOC™ Carbon Filter (middle)
02. Pre-Filter (front)
5.
After filters are installed, close the front panel.
6.
Insert the power cord into an electrical outlet.
REPLACING FILTERS
BACK
Smart
sensor
User Manual
12 Pet Filter
Air Purification means it
removes inanimate particles
Washable AOC™
True HEPA Filter
03 04 05
Carbon Filter
4 5
Tabs
6.
Replace the front panel by first inserting the latch
at the bottom edge into the base of the unit, then
rotate the panel upward toward the top of the
unit until it magnetically snaps closed.
Filter Replacement Period
Replacement Period
Filter Type
Pet Filter 1 Month
• The Replacement Period may be different
depending on the surrounding environment.
Customer Service and Purchase Inquiry
www.winixamerica.com l info@winixinc.com
Latch
04
03
02
Latch
Resetting Filter Life:
After replacing your True HEPA Filter, place the Pre-Filter back in and
close the Front Panel. While the unit is on, use a small, thin object (such
as a paperclip) to hold the Filter Reset Button for at least 5 seconds
until you hear the beep. After the beep, the Filter Replacement
Indicator will disappear. Your Winix True HEPA is now reset.
CONTROL PANEL
01 02 03
Air Outlet
Vent
Handle
08 09
01. Smart Sensor
Detects the amount of odorous gas in the
environment. When in Auto mode, the fan speed
adjusts according to the detected amount of gas.
02. Filter Replacement Indicator
LED light indicates when it is time to change the
filter.
Power Plug
03. Filter Reset Button
After replacing the filters, turn the unit on and use a
thin object, such as a paper clip, to press the Filter
Reset Button for 5 seconds.
04. Fan Speed Indicator
Indicates the current fan speed.
05. PlasmaWave
Indicates whether PlasmaWave
disabled.
06. Timer Indicator
If timer has been set, the LED light indicates the set
time of operation.
07. Child Lock Indicator
LED light indicates whether Child Lock Mode is
enabled or disabled.
08. Light Sensor
Detects the amount of ambient light in the
environment.
09. Power Button
Turns the unit on or off.
• During the first 4 minutes of powering up, the
Air Quality light will flash as the Smart Sensors
measure the air quality in the environment, after
which normal detect will begin.
10. Mode Button
Press to cycle through to set the mode of operation
(Auto, Sleep). The unit will default to Auto with
®
PlasmaWave enabled when first powered on.
Auto Mode:
• Auto Mode automatically adjusts fan speeds
according to your indoor air quality. The fan speed
will adjust to low when air quality is good, medium
PlasmaWave
®
when fair, and to high when poor.
MAINTENANCE
When to Replace Filters
6
Filter
Pre-Filter
Latch
Washable AOC™ Carbon Filter
True HEPA Filter
• When the Check Filter Indicator LED is on, it is time to replace the True HEPA Filter and Washable AOC™
Carbon Filter.
• Intervals between filter replacement may vary depending on environment.
* Filter performance may decrease after each wash and depending on contamination level prior to washing.
CLEANING CARE
Quantity
12 Per Pack
Cleaning the Filters:
Use a vacuum cleaner or soft brush to clean the Pre-
Filter
• If it is excessively soiled, rinse in room
temperature water.
• Do not use detergent or soap.
• Allow the filter to dry for 24 hours or more before
using.
• Intervals between filter cleaning may vary
depending on the air quality in the environment.
To clean the Washable AOC
from unit and rinse under lightly running room
temperature water.
• Do not use detergent or soap.
• Allow the filter to dry for 24 hours or more before
using.
• Do not use hot water over 104
Cleaning the Smart Sensor:
1.
Use a damp cotton swab to wipe
the lens and intake area of the
Smart Sensor.
• To clean the sensor area, use
only water. Do not use volatile
substances such as alcohol or acetone.
2.
Wipe away any remaining moisture with a dry
cotton swab.
Sleep Mode:
• When Sleep Mode is activated, the Air Quality
04 05 06 07
Indicator LED light is disabled.
• Fan speed will automatically set to minimum speed
(lower than 'Low') which will be nearly silent.
• When Sleep Mode is active, PlasmaWave
10 11
12 13 disabled, but it can be turned back on.
Manual Mode (Setting fan speed):
Users can opt to manually set the fan speed to Low,
Medium, High, or Turbo.
• Press the Mode Button to select the desired fan
speed.
• The Mode LED light will indicate the selected fan
speed and operation will begin.
11. PlasmaWave
Enables or disables PlasmaWave
• Press the PlasmaWave
on to enable or disable this feature.
• PlasmaWave
contaminants.
"When the unit is running, you may hear a chirping
or buzzing sound. The sound is from large particles
® Indicator
passing through PlasmaWave
®
is enabled or
not signify product failure."
13. Child Lock
Press and hold the Child Lock Button for 3 seconds
to enable or disable the feature.
• When the Child Lock indicator is lit, the feature is
enabled.
• When Child Lock is enabled, the control panel is
locked and the settings cannot be changed.
• To disable, press and hold the Child Lock Button
again for 3 seconds.
Indicator Light When to Service
none Clean once every 14 days
none * Clean once every 3 months
Can NOT be WASHED
Cleaning the Exterior & Interior:
1.
2.
3.
TM
Carbon Filter, remove
* For optimal performance, clean every 1 - 2 months.
• When cleaning the unit, always unplug the
o
F.
• Never disassemble, repair, or modify the unit
Lens Lens
• Do not use flammable sprays or liquid
• Do not allow children to clean or maintain the
Cotton
swab
• Before cleaning or maintaining, ensure unit is
• Do not use benzene, alcohol, or other
®
will be
® Button
®
.
® button when the unit is
® works to remove harmful airborne
® , it is normal and does
12. Timer Button & Air Quality
LED Light
• Press to cycle through and set
Air Quality
desired length of operation.
Indicator
(1hr, 4hr, 8hr, [NO TIMER])
• To turn the Air Quality LED light
on or off, press and hold the
Timer Button for 3 seconds.
• When on, the LED light will
indicate the current indoor
air quality according to three
levels. BLUE(good), AMBER
(fair), RED (poor).
When to Replace
Permanent
Lasts Approx.12 months
Open the front panel and clean the interior with
a vacuum cleaner.
• A handheld vacuum or hose attachment will
work best.
Dampen a cloth with room temperature water and
wipe down the interior and exterior of the unit.
Wipe the unit down with a clean, dry cloth.
• Ensure no moisture remains before plugging
the unit back in.
N O T I C E
power cord first and then wait until the unit has
cooled down.
yourself.
detergents.
unit.
unplugged.
volatile fluids, which may cause damage or
discoloration.
