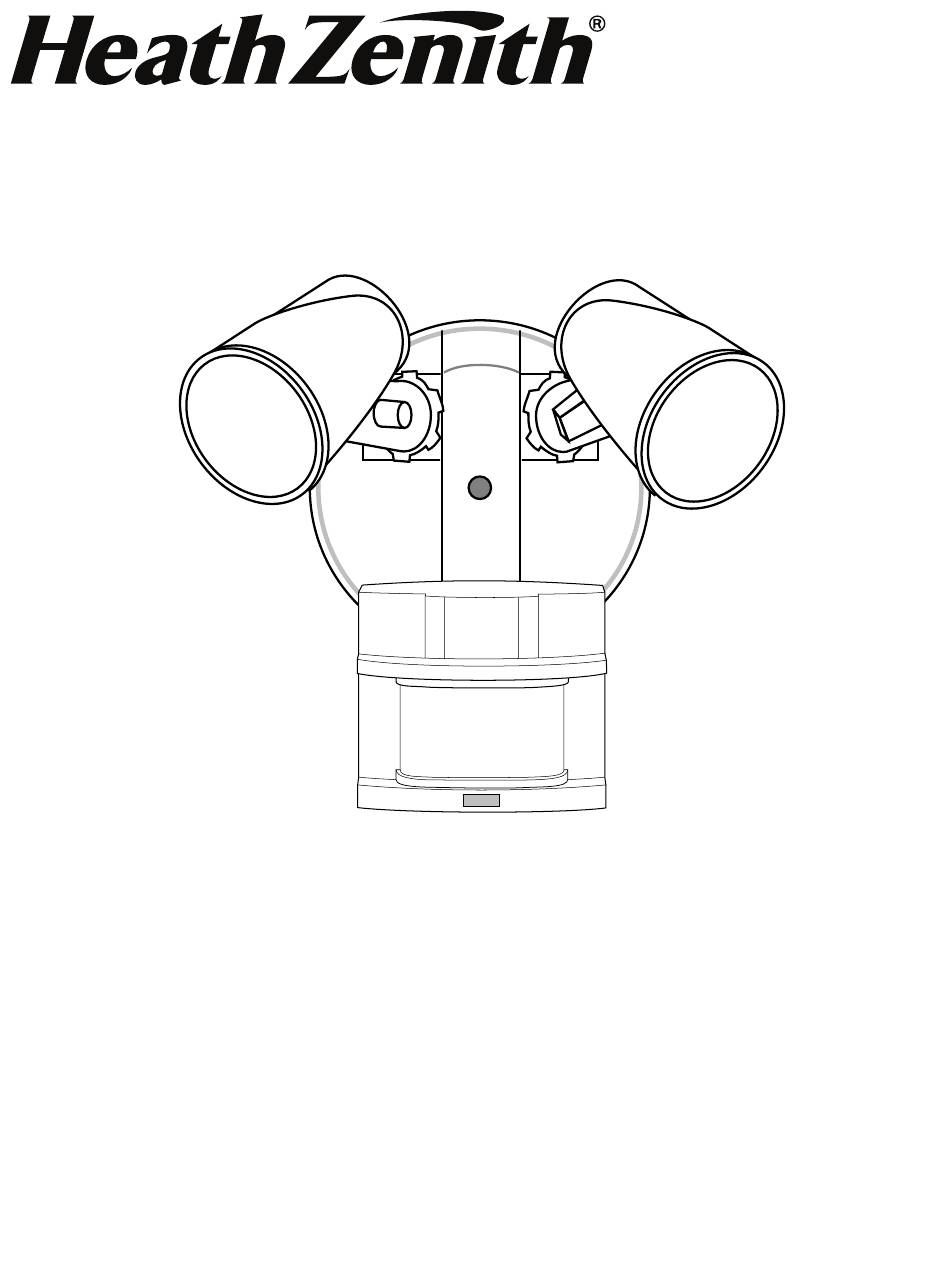

Model 5411
MOTION SENSOR LIGHT CONTROL
The illustrations may vary from the actual product.
Before returning to the store,
please contact our support team for assistance at 800-858-8501.
For additional information,
download the full manual at
www.heath-zenith.com/support/owners-manuals.
Advertisement
Related Manuals for Heath Zenith 5411
Summary of Contents for Heath Zenith 5411
- Page 1 Model 5411 MOTION SENSOR LIGHT CONTROL The illustrations may vary from the actual product. Before returning to the store, please contact our support team for assistance at 800-858-8501. For additional information, download the full manual at www.heath-zenith.com/support/owners-manuals.
- Page 2 SAFETY INFORMATION • This light fixture requires 120-volts AC. • Some codes require installation by a qualified electrician. • WARNING: Turn the power off at the circuit breaker or fuse. Place tape over the circuit breaker switch and verify power is off at the light fixture.
- Page 3 HARDWARE CONTENTS Note: Illustrations may vary from actual unit. 1x – Rubber 2x – Wire Connectors Plug 1x – Gasket 6x – Mounting Bracket Screw (3 sizes) 1x – Mounting 1x – Mounting Bolt Strap 1x – Plastic Hanger...
- Page 4 INSTALLATION WARNING: Turn power off at circuit breaker or fuse when wiring fixture or replacing bulbs. Place tape over circuit breaker switch and verify power is off at the fixture. 1. Adjust the motion sensor for proper operation and to avoid the risk of electrical shock.
- Page 5 • Route the light control’s wires through the large gasket hole. • Connect black to black • Connect white to white • Connect the junction box ground wire to the green screw on the back of the canopy. 4. Mounting the light fixture •...
- Page 6 TESTING AND ADJUSTMENTS 1. Testing Setup • Set the “ON-TIME” switch to the “TEST” position. RANGE SENS ON-TIME • Turn the “RANGE” dial to the “MIN” position. 10 5 1 TEST • Aim the motion sensor in the general direction of the area to be covered. •...
- Page 7 2. Final Setup • Adjust the sensitivity (RANGE) to increase or decrease the range as needed. Too much sensitivity may cause false triggering due to heat sources in the coverage area. • The “ON-TIME” switch determines the amount of time the light will stay on full bright after all motion has stopped.
