INSTALLATION INSTRUCTION
20
SPECIFICATIONS
Voltage...................................................................... 120VAC, 60HZ
Load(Single Pole Circuit)
Incandescent lamp.......................................................... 0-800Watt
Fluorescent lamp................................................................0-800VA
Fan Motor............................................................................... 1/4 HP
Time Delay.................................................1, 5, 10, 15, 20, 30 minutes
Environment.............................................Commercial Indoor use only
Humidity.................................................. 95% RH, non-condensing
Operating Temperature................
INTRODUCTION
The Timer Switch replaces standard single-pole wall switch for energy
savings throughout the home. It turns controlled lights or fans off when
the selected time expires.
Turning lights on with the HET06A-R is accomplished by pressing the
desired time selection or on/off button. Lights will remain on for the
duration of the time-out setting that was last used and turn on the indicator
light for that active time interval. Lights can be turned off before the
time-out setting expires by pressing the on/off button. To change the
time-out setting, press the desired time selection button and the HET06A-R
will reset to that countdown interval. The LED will flash for the last
10s of the desired time. When the Timer Switch is power on, all the
LED'S flash three times, it indicates that the Timer Switch is ready to set.
Features:
·
Seven-button Preset Timer Switch
·
Adjustable time delay:1, 5, 10, 15, 20, 30 minutes
·
Replace a standard light or fan single pole switch
·
Work with most common lighting types
·
Ideal for closet, pantry, garage, laundry room, outdoor lighting and spa

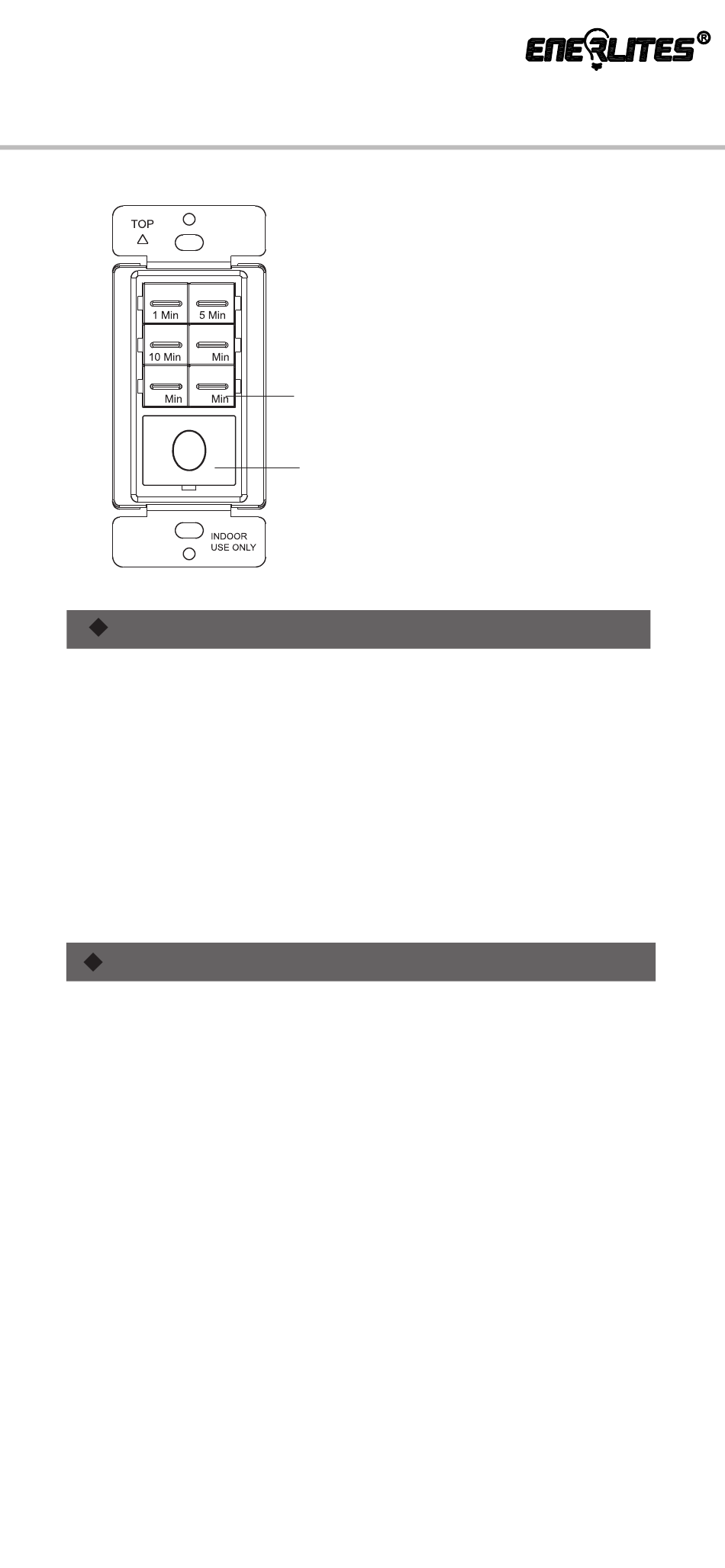

HET06A-R
7-BUTTON PRESET
TIMER SWITCH
15
6 time selection buttons with
30
activation indicator lights
ON/OFF Button
with hold on function
.......
................32
-01-
°
°
°
to 131 F(0 to 50
℃
)
