ENGLISH

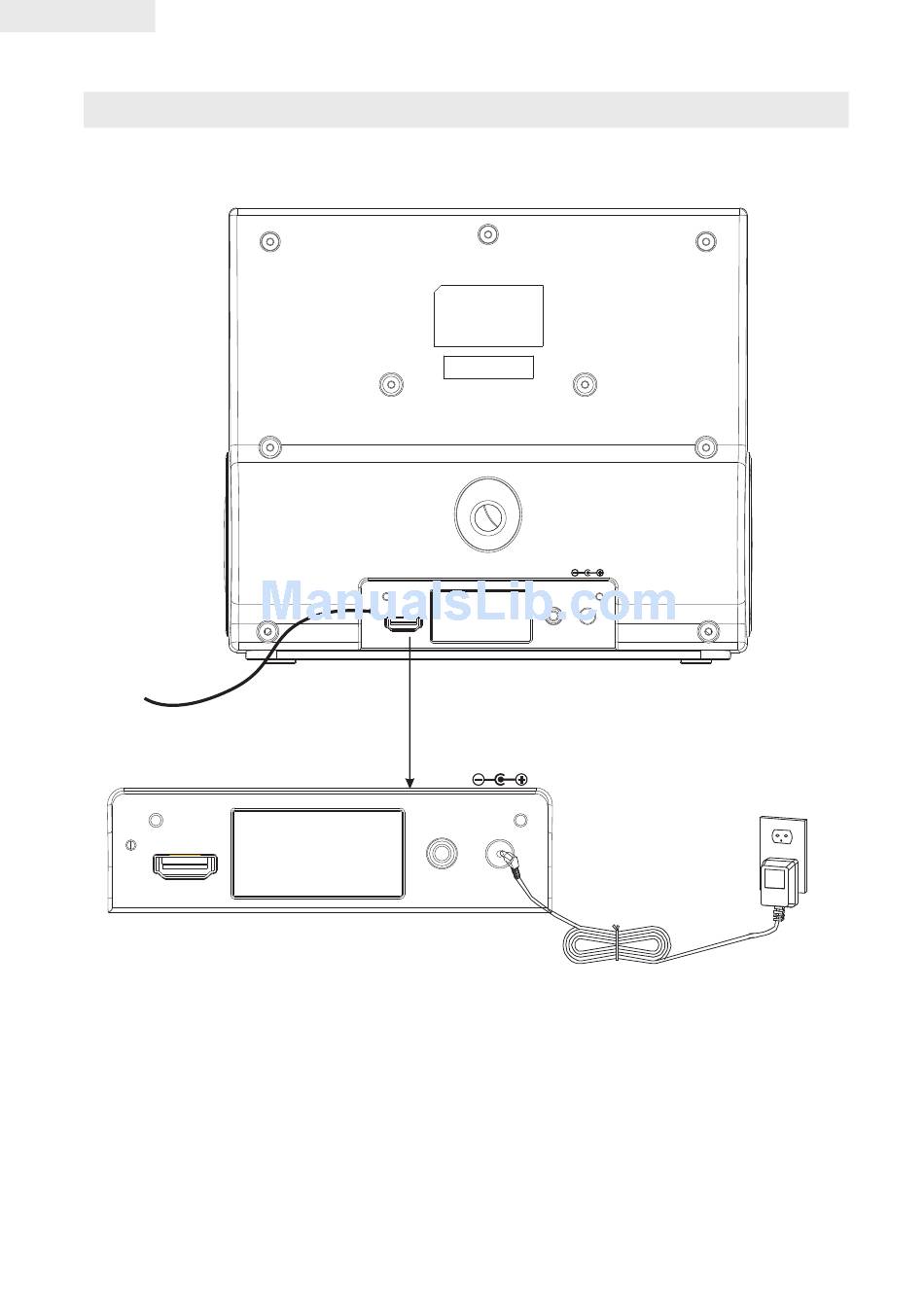

Connect the single plug into the "DC IN" jack on the unit's back panel. Then, connect the AC
Adaptor into the 120V AC outlet.
FM ANT.
HDMI
NOTES:
•
The housing of the AC adaptor may become warm during operation. This is normal.
•
To reduce the risk of electric shock, never connect or disconnect the AC adaptor while
your hands are wet.
•
Please use original AC adaptor supplied with the unit, to avoid damage to the unit.
•
Ensure the "DC IN" plug is connected to the unit BEFORE connecting to the mains socket.
5
USING THE AC ADAPTOR
FM ANT.
HDMI
DC IN 8.5V
AUX IN
DC IN 8.5V
AUX IN
