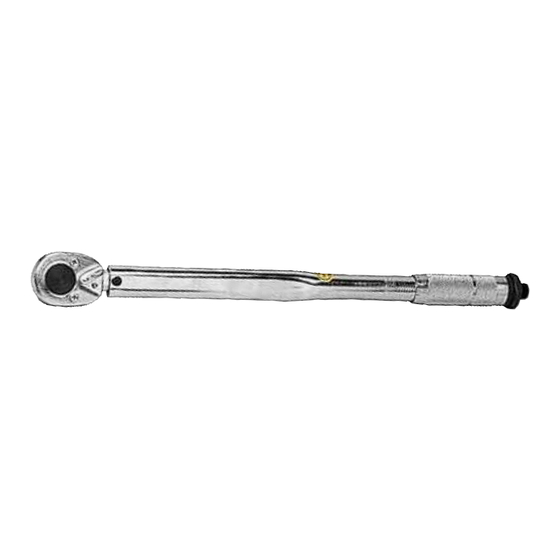

Performance Tool M200DB Adjustment

ADJUSTMENT OF TORQUE SETTING
HOW TO USE YOUR NEW
TORQUE WRENCH

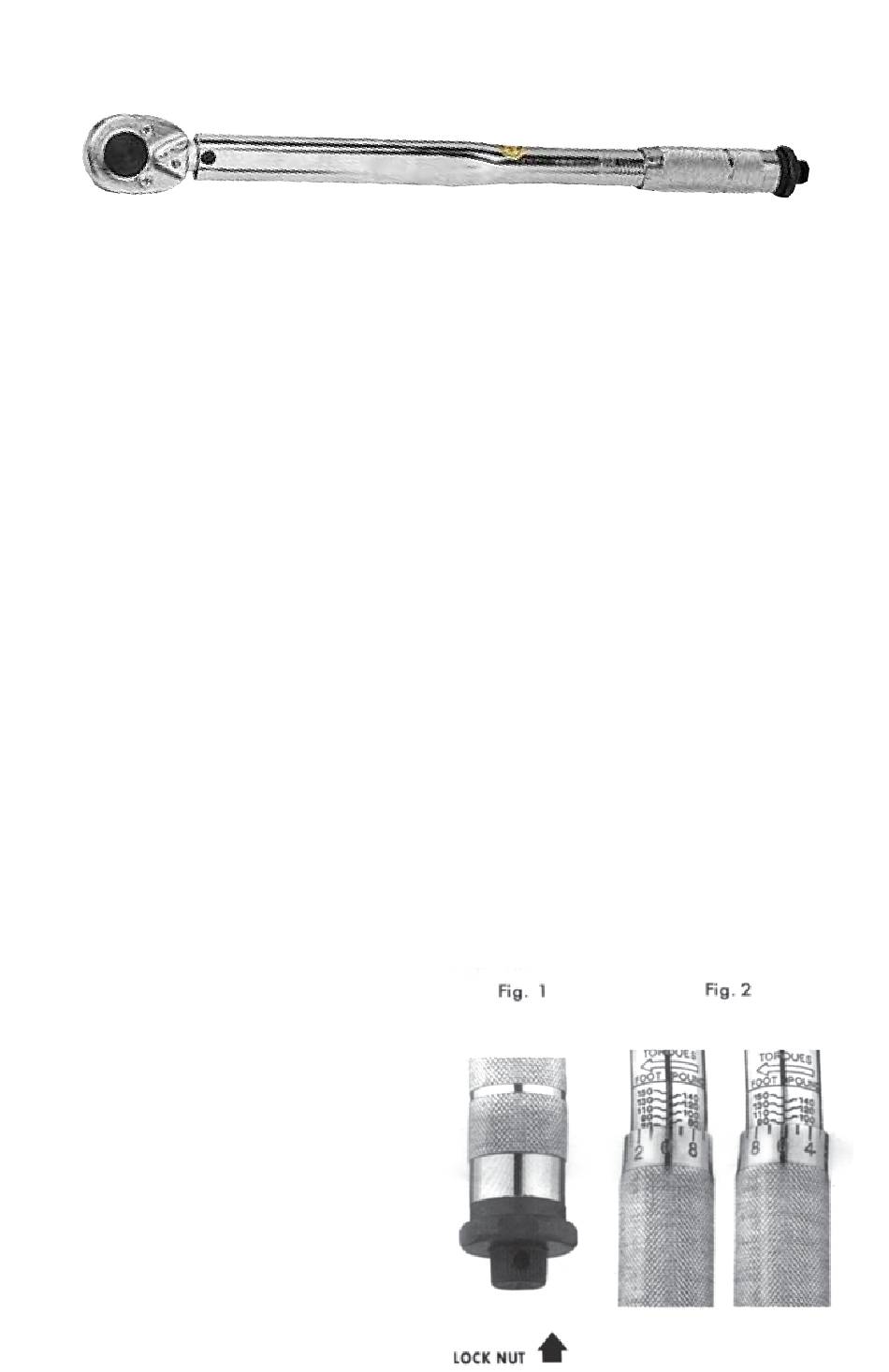

A. Balancing wrench in hand with
graduations visible unlock knurled handle
by turning lock nut counter clockwise.
(see fig. 1)
B. Set amount of torque required by turning
knurled handle to read exact amount on
case graduations. Example: 86 ft. lbs.
1. Turn knurled handle until the zero
graduation on the beveled edge of the
knurled handle is lined up with the
vertical mark on the case and is even
with the 80 ft. lbs. graduations.
2. Turn knurled handle clockwise until
the 6 ft. lbs. graduation on the beveled
edge of the handle is in line with the
vertical line on the case.
3. Lock handle securely by turning lock
Nut clockwise wrench. Wrench is now
set at 86 ft. lbs. and is ready to use.
(see fig. 2 )
C. When setting for metric ( KpM ), use same
procedures as setting for ft. lbs.
D. Install the proper socket or attachment to
the square drive and apply to nut or bolt
and pull handle until you feel and/or here
wrench click. Release, pull and wrench
automaticaly resets for next operation.
CAUTION:
DO NOT CONTINUE TO PULL AFTER
WRENCH RELEASES. USE SPECIAL
CARE AT LOW TORQUE SETTINGS
THAT PULL STOPS WHEN WRENCH CLICKS.
1. If wrench has not been used or has
been in storage for some time, operate
it several times at a low torque setting
which permits special internal
lubricants to recoat internal
working parts
2. When wrench is not in use, keep
adjustment at lowest torque setting.
3. Do not turn handle below lowest
torque setting.
4. Do not continue pulling on the wrench
after pre-set torque has been reached
and the wrench has released. Pressure
must be taken off the handle and the
wrench allowed to automatically reset
itself, continuing to apply pressure
after the wrench has released, will
result in damage to the part being
torqued by applying more than the
specified amount of torque.
5. Tool is rugged and designed for shop
use, but is also a precision measuring
instrument and should be treated
as such.
6. Clean wrench by wiping: Do not
immerse in any type of cleaner which
may affect special high pressure lube
with which the wrench is packed at
the factory.
7. This torque wrench was calibrated and
tested before leaving the factory and is
accurate to ± 4%.
THIS IS A PRECISION MEASURING
INSTRUMENT, CALIBRATION AND
SERVICING MUST BE DONE REGULARLY
AND IS THE OWNERS RESPONSIBILITY.
