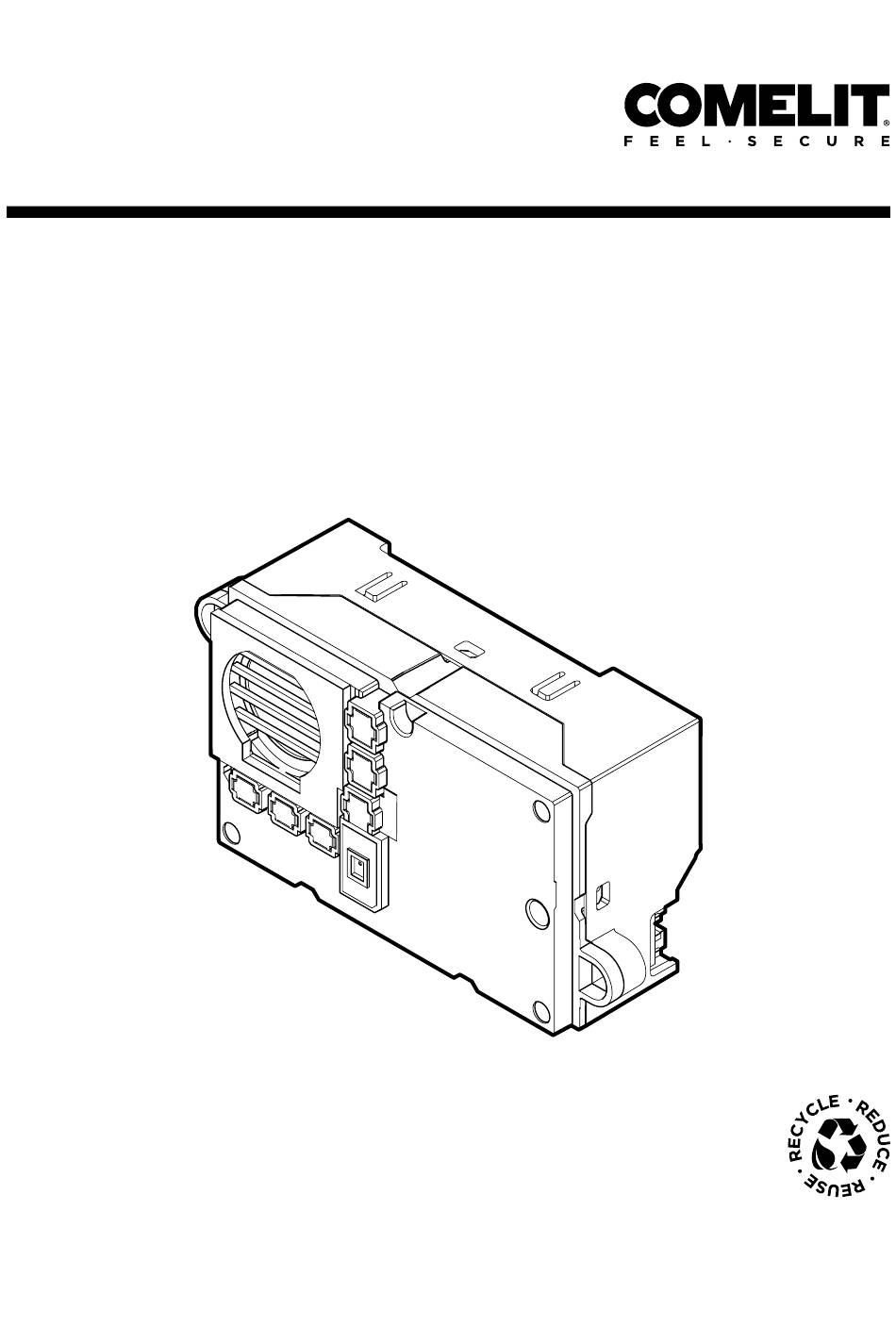

  • Page 1 Ultra EU2010VC F U L L T E C H N I C A L M A N U A L Join us in taking care of our planet...
  • Page 2 | Table of contents | Simplebus 2 audio unit for remote camera Audio unit for use in the creation of Comelit and/or third-party single- piece entrance panels, designed for the connection of a PAL-standard analogue remote camera, Simplebus 2 system.
  • Page 3 | Table of contents | Table of contents Description Technical specifications Installation Installation with EU1250A accessory Installation with EU1250AM accessory Button connection Addressing buttons Addressing buttons directly connected to the audio unit Addressing buttons connected via art. 3061MU Addressing buttons connected via interface art. 3063U Programming specific user codes Table of user codes Programming via PC...
  • Page 4 | Table of contents | Light-me function Light-me function behaviour on the basis of the LED backlighting mode Replacing the audio unit with programming restore backup 37 System performance Wiring diagrams Basic diagram with standard buttons Variant with standard buttons and separate power supply Variant with 3061S and 3061MU buttons Variant with 3061S and 3061MU buttons and separate power supply 42 Connection of art. 3457U...
  • Page 5 | Table of contents | Description S1 S2 EU2010VC 1. Loudspeaker 2. Twilight sensor 3. Digital microphone 4. Indicator LED call sent (green) / system busy (red) lock-release enabled call in progress 5. Screwdriver for adjusting the volume 6. Loudspeaker volume adjustment 7.
  • Page 6 RTE Programmable RTE (local lock-release input) or DO input (door open indication) 17. Connector for connecting additional Ultra modules or master button art. 3061MU It is NOT possible to simultaneously connect standard buttons to terminals C P1 P2 P3 P4 and slave buttons art.

  • Page 7: Technical Specifications

    | Table of contents | Technical specifications GENERAL DATA Height (mm) 65 Width (mm) 110 Depth (mm) 50 Product weight (g) 200 Product colour White RAL9003 Coating material type Polycarbonate Makrolon 2407 COMPATIBLE SYSTEMS Simplebus 2 audio/video with power supply unit art. 1210/1210A AUDIO SPECIFICATIONS Microphone MEMS digital audio sensor, omnidirectional Loudspeaker 28 mm (ø), 4 Ohm, 2W...
  • Page 8 | Table of contents | MAIN FUNCTIONS Lock-release Yes Number of auxiliary relays (no.) 1 Input for local key button Yes Input for door open indication Yes System status visual indications Yes System status audio indications Yes System status voice synthesis Yes...

  • Page 9: Installation

    | Table of contents | Installation The product art. EU2010VC can be installed: • on single-piece entrance panels (Comelit and/or third-party) with adapter art. EU1250A • on single-piece entrance panels (Comelit and/or third-party) with “full metal” look and adapter art. EU1250AM EU2010VC EU2010VC EU1250A EU1250AM...
  • Page 10 | Table of contents | Installation with EU1250A accessory MEASUREMENTS FOR CREATING CUSTOM SINGLE-PIECE ENTRANCE PANELS ART. EU1250A 102 mm 82 mm 10 mm M3×16 120 mm The entrance panel plate should be 2.5 mm thick. The area marked by the symbol should be left free to allow fixing of art.
  • Page 11 | Table of contents | Installation with EU1250AM accessory MEASUREMENTS FOR CREATING CUSTOM SINGLE-PIECE ENTRANCE PANELS ART. EU1250AM 102 mm 12,8 76,4 mm 10 10 10 mm M3×16 6,4 mm 120 mm The entrance panel plate should be 2.5 mm thick. The area marked by the symbol should be left free to allow fixing of art.
  • Page 12 | Table of contents | Button connection The following can be connected to the audio unit: 1. Buttons art. 3061S: directly to the audio unit using the relevant connectors. 2. Buttons art. 3061S and art. 3061MU: master button art. 3061MU can be used in addition to or as an alternative to the direct connection of buttons art. 3061S to the audio unit.
  • Page 13 | Table of contents | Addressing buttons Addressing buttons directly connected to the audio unit There are 2 programming methods: • Smart programming of consecutive user codes (described below): allows quick programming of buttons with consecutive user codes (e.g: 1, 2, 3, 4) •...
  • Page 14 | Table of contents | f Press the button you want to associate with the code set using the DIP-switches. Press the following buttons to assign consecutive codes. S1 S2 S1 S2 f Set the DIP-switches back to their initial position S1 S2 S1 S2...
  • Page 15 | Table of contents | Addressing buttons connected via art. 3061MU To program the buttons correctly, follow the instructions below in the correct order: A. Address master buttons art. 3061MU. When addressing master button art. 3061MU, in case of replacement of art. 3061MU, it is possible to program only the address of the replaced product, without having to reprogram all the buttons connected to it.
  • Page 16 | Table of contents | S1 S2 B. PROGRAMMING CONSECUTIVE SMART USER CODES f Make a note of the DIP-switch S1 S2 settings S1 S2 S1 S2 S1 S2 S1 S2 S1 S2 1 2 3 4 f Set the user code of the apartment you wish to call S1 S2 (for example: 1) using the DIP-switches (see Table of user codes on page 23)
  • Page 17 | Table of contents | f Press the button you want to associate with the code set using the DIP-switches. Press the following buttons to assign consecutive codes. S1 S2 S1 S2 f Set the DIP-switches back to their initial position S1 S2 S1 S2...
  • Page 18 | Table of contents | Addressing buttons connected via interface art. 3063U To program the buttons correctly, follow the instructions below in the correct order: A. Address interface art. 3063U. When addressing master button art. 3063U, in case of replacement of art. 3063U, it is possible to program only the address of the replaced product, without having to reprogram all the buttons connected to it.
  • Page 19 | Table of contents | B. PROGRAMMING CONSECUTIVE SMART USER CODES f Make a note of the DIP-switch S1 S2 settings S1 S2 S1 S2 S1 S2 S1 S2 S1 S2 1 2 3 4 f Set the user code of the apartment you wish to call S1 S2 (for example: 1) using the DIP-switches (see Table of user codes on page 23)
  • Page 20 | Table of contents | S1 S2 S1 S2 f Set the DIP-switches back to their initial position S1 S2 S1 S2...
  • Page 21 | Table of contents | Programming specific user codes f Make a note of the DIP-switch S1 S2 settings S1 S2 S1 S2 S1 S2 S1 S2 S1 S2 1 2 3 4 f Set the user code of the apartment you wish to call S1 S2 (for example: 25) using the DIP-switches (see Table of user codes on page 23).
  • Page 22 | Table of contents | f Repeat steps 5 and 6 to assign a specific user code to each button. example code 37 example code 70 example code 58 1 2 3 4 1 2 3 4 1 2 3 4 S1 S2 S1 S2 f Set the DIP-switches back to their initial...
  • Page 23 | Table of contents | Table of user codes code DIP ON 1,2,3,4,5 1,3,4,5,6 1,2,4,5,7 1,4,5,6,7 1,2,3,5,8 1,3,5,6,8 1,2,5,7,8 2,3,4,5,6 3,4,5,7 2,4,5,6,7 4,5,8 2,3,5,6,8 3,5,7,8 1,2,3,4,5,6 1,3,4,5,7 1,2,4,5,6,7 1,4,5,8 1,2,3,5,6,8 1,3,5,7,8 2,3,4,5,7 3,4,5,6,7 2,4,5,8 4,5,6,8 2,3,5,7,8 1,2,3,4,5,7 125 1,2,6 1,3,4,5,6,7 1,2,4,5,8 1,4,5,6,8 1,2,3,5,7,8...

  • Page 24: Programming Via Pc

    | Table of contents | Programming via PC All device configurations can be implemented via PC and ViP Manager configuration software, which is available to download free of charge from the website pro.comelitgroup.com (See programming manual). For example: • programming the user codes associated with the buttons •...
  • Page 25 | Table of contents | Special programming via DIP-switch f Make a note of the DIP-switch S1 S2 settings S1 S2 S1 S2 S1 S2 S1 S2 S1 S2 1 2 3 4 1. Set the DIP-switches S1 S2 in accordance with the function you S1 S2 wish to program (see...
  • Page 26 | Table of contents | Special programming table CODE DIP-SWITCHES ON FUNCTIONS Audio-visual messages 1,7,8 Czech 1,2,7,8 Hebrew 3,7,8 Polish 1,3,7,8 Catalan 2,3,7,8 Galician 1,2,3,7,8 Basque 2,3,4,7,8 Danish 1,2,3,4,7,8 Norwegian 1,2,5,7,8 Swedish 1,2,3,5,7,8 Italian 4,5,7,8 French 1,4,5,7,8 Spanish 2,4,5,7,8 Dutch 1,2,4,5,7,8 Greek 3,4,5,7,8...
  • Page 27 | Table of contents | CODE DIP-SWITCHES ON FUNCTIONS System functions 4,6,7,8 Awaiting response time: 60 sec (default) 1,4,6,7,8 Awaiting response time: 120 sec 2,4,6,7,8 Awaiting response time: 30 sec 1,2,4,6,7,8 Talk time: 90 sec (default) 3,4,6,7,8 Talk time: 180 sec 1,5,8 RTE input set as local lock-release input (default) 2,5,8...
  • Page 28 | Table of contents | CODE DIP-SWITCHES ON FUNCTIONS Light-me ON: the button LEDs for the audio unit are always on and when the button is pressed all button LEDs light up (see: Light-me 1,2,6,8 function behaviour on the basis of the LED backlighting mode on page 2,3,5,8 Light-me time: 30 sec 1,2,3,5,8...
  • Page 29 | Table of contents | Programming the voice message language The audio unit can be configured to play back voice messages, providing the user with instant feedback relating to the action that is taking place. Voice messages may be played: •...
  • Page 30 | Table of contents | TAB B DIP-SWITCH DIP-SWITCH DIP-SWITCH LANGUAGE LANGUAGE LANGUAGE 1,7,8 Czech 2,3,4,7,8 Danish 2,4,5,7,8 Dutch 1,2,7,8 Hebrew 1,2,3,4,7,8 Norwegian 1,2,4,5,7,8 Greek 3,7,8 Polish 1,2,5,7,8 Swedish 3,4,5,7,8 English 1,3,7,8 Catalan 1,2,3,5,7,8 Italian 1,3,4,5,7,8 German 2,3,7,8 Galician 4,5,7,8 French 2,3,4,5,7,8 Portuguese...
  • Page 31 | Table of contents | Programming dual language voice messages f Make a note of the DIP-switch S1 S2 settings S1 S2 S1 S2 S1 S2 S1 S2 S1 S2 1 2 3 4 1. Set the DIP-switches S1 S2 for the first desired language (see TAB B) S1 S2...
  • Page 32 | Table of contents | TAB B DIP-SWITCH DIP-SWITCH DIP-SWITCH LANGUAGE LANGUAGE LANGUAGE 1,7,8 Czech 2,3,4,7,8 Danish 2,4,5,7,8 Dutch 1,2,7,8 Hebrew 1,2,3,4,7,8 Norwegian 1,2,4,5,7,8 Greek 3,7,8 Polish 1,2,5,7,8 Swedish 3,4,5,7,8 English 1,3,7,8 Catalan 1,2,3,5,7,8 Italian 1,3,4,5,7,8 German 2,3,7,8 Galician 4,5,7,8 French 2,3,4,5,7,8 Portuguese...

  • Page 33: Twilight Sensor

    | Table of contents | Twilight sensor Button backlighting management (only with buttons art. 3061S/3061MU) The twilight sensor is in AUTO mode by default: the button LEDs for art. 3061S/3061MU light up at night and switch off during the day. To change the setting to ON (LEDs always on) or OFF (LEDs always off), proceed as follows: f Make a note of the DIP-switch S1 S2 settings...
  • Page 34 | Table of contents | NOTE: when the OFF and AUTO lighting modes are active, every time the entrance panel is powered, the buttons light up for the duration of the start-up phase (10 seconds maximum). In AUTO mode the twilight sensor checks the ambient light level every 9 minutes; if the measured values exceed the specified minimum/maximum thresholds, it is activated/ deactivated accordingly.
  • Page 35 | Table of contents | Checking twilight sensor operation If it is daytime and you want to check AUTO mode operation for the twilight sensor, you can proceed as follows: 1. Enter programming mode S1 S2 S1 S2 S1 S2 S1 S2 2.
  • Page 36 | Table of contents | Light-me function With this function, button backlighting is only enabled on the user’s request, by pressing the LIGHT-ME button; this saves energy and reduces light pollution. The LIGHT-ME button must be connected to the first connector of the audio unit Backlighting management for this button depends on the twilight sensor setting.
  • Page 37 | Table of contents | Replacing the audio unit with programming restore backup If the audio unit is replaced, the following instructions must be observed. The procedure should be completed within one hour of removal of the old product. f Make a note of the DIP-switch settings f Wait for 90 seconds 90 sec...
  • Page 38 | Table of contents | S1 S2 S1 S2 f Set the DIP-switches back to their initial position S1 S2 S1 S2...

  • Page 39: System Performance

    1.5 mm² CAUTION! Using shielded cables can reduce distances by 50% A MAX B MAX C MAX H MAX art. 1216 Comelit Art. 4577/4579 1 mm² 260 m 130 m 130 m 50 m (Ø 1.2 mm AWG 17) (850 feet)

  • Page 40: Wiring Diagrams

    | Table of contents | Wiring diagrams Basic diagram with standard buttons 1216 CFP CFP 1214/2C CFP CFP S+ S- 1214/2C 230V 1210A 1210 12 VAC/VDC 18 Ω MAX SE NO P1 P2 P3 P4 C EU2010VC 3063U N°1 1172B 3063U MAX 6 N°6...
  • Page 41 | Table of contents | Variant with standard buttons and separate power supply 1595 1210A 1210 120-230 V 12 VAC/VDC 18 Ω MAX SE NO P1 P2 P3 P4 C EU2010VC JUMPER 3063U 1172B N°1 3063U MAX 30 N°30 MAX 30 1172B Use bulb art.
  • Page 42 | Table of contents | Variant with 3061S and 3061MU buttons 1210A 1210 12 VAC/VDC 18 Ω MAX SE NO P1 P2 P3 P4 C EU2010VC 3061S 3061S 3061S 3061S 3061MU 3061MU 3061MU MAX 8 P4 P3 P2 P4 P3 P2 P4 P3 P2 3061S 3061S...
  • Page 43 | Table of contents | Connection of art. 3457U 230V 1210A 1210 12 VAC/VDC 1596B 18 Ω MAX S1 S2 120-240 V SE NO P1 P2 P3 P4 C EU2010VC REMOVE D2 D2 D1 D1 D0 D1 NC IN 3457U...
  • Page 44 | Table of contents | Using the entrance panel relay 1210A 1210 12 VAC/VDC 18 Ω MAX SE NO P1 P2 P3 P4 C EU2010VC 12V/24V C.NC.NO relay activation: 2 sec. AC-DC 4A MAX (Default) Default 1 2 3 4 1 2 3 4 The SE output and the C-NO relay are The SE output and the C-NO relay are controlled by...
  • Page 45 C E R T I F I E D M A N A G E M E N T S Y S T E M S...
  • Page 46 w w w . c o m e l i t g r o u p . c o m 1st edition 05/2025 Via Don Arrigoni, 5 - 24020 Rovetta (BG) - Italy code 2G40003300...
