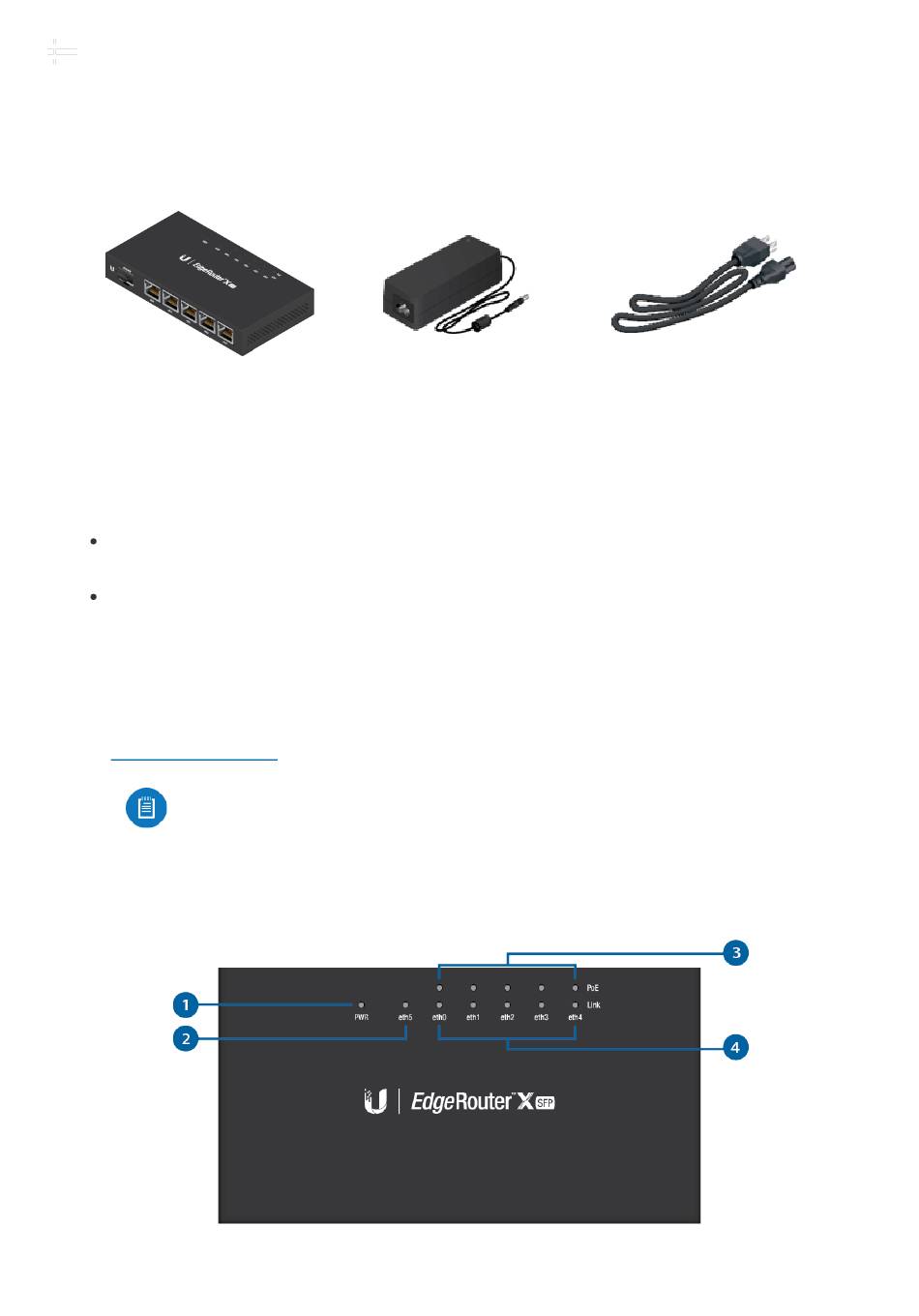

Package Contents

EdgeRouter X SFP

Installation requirements

For indoor applications, use Category 5 (or higher) UTP cabling certified for

indoor use.

For outdoor applications, Category 5 (or higher) shielded cabling must be used

for all Ethernet connections and must be connected to the AC ground of the

power supply.

We recommend that you protect your networks from harmful outdoor

environments and electrostatic discharge phenomena with Ubiquiti's industrial-

grade Ethernet shielded cable. For more details, please visit:

ui.com/toughcable

Note:

stored inside a protective enclosure.

Hardware Description

https://dl.ubnt.com/qsg/ER-X-SFP/ER-X-SFP_ES.html

ER-X-SFP Quick Start Guide

Power adapter (24V, 2.5A)

Although cabling can be routed outside, the EdgeRouter must be

ER-X-SFP Quick Start Guide

Power cable

1/10

Need help?

Do you have a question about the EdgeRouter X SFP and is the answer not in the manual?

Questions and answers

Summary of Contents for Ubiquiti EdgeRouter X SFP

Page 1 Ethernet connections and must be connected to the AC ground of the power supply. We recommend that you protect your networks from harmful outdoor environments and electrostatic discharge phenomena with Ubiquiti's industrial- grade Ethernet shielded cable. For more details, please visit: ui.com/toughcable...
Page 2 13/2/25, 14:49 ER-X-SFP Quick Start Guide ER-X-SFP Quick Start Guide Power LED Disabled Disabled Green Activated Link/Activity LED (eth5 port) Disabled Not connected 100/1000 Mbps (1 Gbps) Link Green Blinking indicates activity PoE LED (ports eth0-eth4) Disabled Without PoE Green 24V Passive Link/Activity LED (ports eth0-eth4) Disabled...
Page 3 13/2/25, 14:49 ER-X-SFP Quick Start Guide connections. ER-X-SFP Quick Start Guide Reset button Click here for information on how to reset the EdgePoint to factory defaults. Grounding ESD grounding for enhanced ESD protection. Ground wire and screw with washer are not included (Recommended screw size: M3-0.5x4mm). Power port Connect the power adapter.
Page 4 13/2/25, 14:49 ER-X-SFP Quick Start Guide ER-X-SFP Quick Start Guide Note: PoE is disabled by default. SFP connection (optional) https://dl.ubnt.com/qsg/ER-X-SFP/ER-X-SFP_ES.html 4/10...
Page 5 3. Launch your web browser. Enter the correct IP address in the address field. Press Enter (PC) or Return (Mac). 4. Enter ubnt in the username and password fields . Read the Ubiquiti license agreement and check the box next to I agree to the terms of this License https://dl.ubnt.com/qsg/ER-X-SFP/ER-X-SFP_ES.html...
Page 6 3. Launch your web browser. Type https://192.168.1.1 in the address bar and press Enter (PC) or Return (Mac). 4. Enter ubnt in the username and password fields . Read the Ubiquiti license agreement and check the box next to I agree to the terms of this License Agreement to accept it.
Page 7 13/2/25, 14:49 ER-X-SFP Quick Start Guide 1. On the Dashboard screen , go to Actions > PoE for the interface you want to ER-X-SFP Quick Start Guide configure. 2. Select Off or 24V from the PoE drop-down menu . 3. Click Save . For more information, see the EdgeOS User Guide, available at ui.com/download/edgemax Specs...
Page 8 13/2/25, 14:49 ER-X-SFP Quick Start Guide WARNING: To reduce the risk of fire or electric shock, do not expose the product to ER-X-SFP Quick Start Guide rain or moisture. WARNING: Do not use this product in a location where it may be submerged in water.
Page 9 13/2/25, 14:49 ER-X-SFP Quick Start Guide 2. This device must accept any interference received, including interference that may cause ER-X-SFP Quick Start Guide undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
