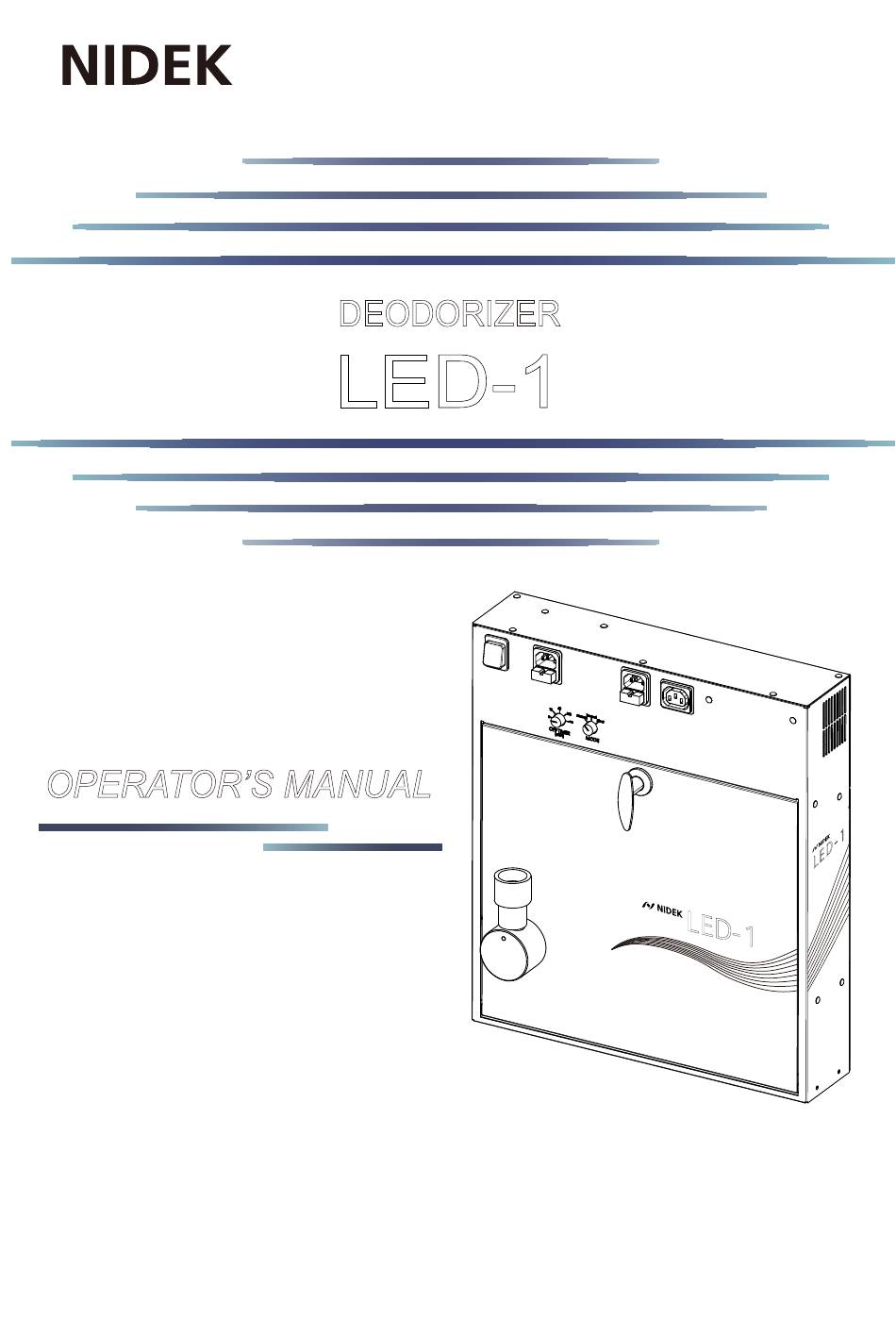

- Page 1 DEODORIZER LED-1 OPERATOR’S MANUAL - 1 ...
- Page 2 Original instructions NIDEK CO., LTD. : 34-14 Maehama, Hiroishi-cho, Gamagori, Aichi 443-0038, JAPAN (Manufacturer) Telephone: +81-533-67-6611 URL: https://www.nidek.com/ NIDEK INC. : 2040 Corporate Court, San Jose, CA 95131, U.S.A. (United States Agent) Telephone: +1-800-223-9044 (USA Only) URL: https://usa.nidek.com/ NIDEK S.A. : Ecoparc, rue Benjamin Franklin, 94370 Sucy En Brie, FRANCE (EU Authorized Representative) 2024-09-30...
- Page 3 Before Use This operator's manual includes information such as the operating procedure, safety precautions, maintenance, and specifications. Be sure to read this operator's manual before using this product. Keep this manual handy for reference. If you encounter any problems or have questions about the prod- uct, please contact Nidek or your authorized distributor.
- Page 4 Indications in This Manual ● Repeatedly used descriptions are expressed with the following indications. Indication Description Example A term enclosed in brackets indicates a [XXX] [Start], [Back] switch, button, and such. Indicates the reference page. “Indications in This Manual” (page 5) ●...
- Page 5 Table of Contents 1 SAFETY PRECAUTIONS - - - 5 1.1 Usage Precautions - - - 5 1.2 Labels and Symbols - - - 8 2 INTRODUCTION - - - 9 2.1 Intended Use - - - 9 2.2 Instrument Outline - - - 9 2.3 Instrument Configuration - - - 10 2.4 Connection with Lens Edger - - - 11 2.5 Connection with Pump Tank - - - 12...
- Page 7 SAFETY PRECAUTIONS In this manual, signal words are used to designate the degree or level of safety alerting. The defini- tions are as follows: WARNING Indicates a potentially hazardous situation which, if not avoided, may result in death or serious injury or serious property damage accident.
- Page 8 1. SAFETY PRECAUTIONS : Usage Precautions WARNING • Use the instrument under the specified conditions. Conditions during use Temperature: 5 to 40°C (41 to 104ºF) Humidity: 5 to 31°C (41 to 87.8ºF): 30 to 80% 31 to 40ºC (87.8 to 104ºF): The minimum acceptable relative humidity is 30%.
- Page 9 1. SAFETY PRECAUTIONS : Usage Precautions After use WARNING • After using the instrument, perform an after-use check. • If the instrument will not be used for an extended period of time, disconnect the power cord from the power outlet. Accumulation of dust or moisture may result in a short-circuit or fire.
- Page 10 1. SAFETY PRECAUTIONS : Labels and Symbols Labels and Symbols Refer to the operator’s manual. Alternating current Date of manufacture Manufacturer Warning (electricity) Fuse rating Background color: Yellow Indicates that this product must be dis- Serial number posed of in a separate collection of elec- trical and electronic equipment in EU.
- Page 11 Instrument Outline The Deodorizer LED-1 is connected to a Nidek lens edger to deodorize odors produced during the processing of spectacle lenses. The LED-1 consists of a deodorizer, a cartridge, and a moisture collection tank.
- Page 12 2. INTRODUCTION : Instrument Configuration Instrument Configuration - 1 Power switch Dials Operation mode select dial Sets the operation mode of the deodorizer to Manual mode, edger linkage mode (Normal), and edger linkage mode (Silent). Edger Edger starts...
- Page 13 2. INTRODUCTION : Connection with Lens Edger Connection with Lens Edger Connect the LED-1 exhaust hose connector and the lens edger exhaust vent (or intake/exhaust vent) with the exhaust hose. ♦ When the moisture collection tank is used...
- Page 14 Connection with Pump Tank ■ The pump tank connection kit (option) is required. Connect the LED-1 exhaust hose connector and the pump tank exhaust nozzle with the exhaust hose. Fasten the exhaust hose connected to the exhaust nozzle with the hose band.
- Page 15 Connect the inlet for edger connection of the LED-1 and the outlet for deodorizer connection of the lens edger with the provided extension cord. Connect the power inlet of the LED-1 and a power outlet with the provided power cord. ...
- Page 16 Connect the power cord of Pump 1 for feedwater to the outlet for pump connection of the LED-1. The power cord of Pump 1 for feedwater has the “PUMP1” tag on it. Connect the power inlet of the LED-1 and a power outlet with the provided power cord. ...
- Page 17 Attachment of Foot ASSY and Moisture Collection Tank Holder (Option) 2.7.1 Attachment of foot ASSY Remove the screws from the LED-1 main body. Fasten the foot ASSY with the screws. Attach the foot ASSY to the other side in the same manner.
- Page 18 2. INTRODUCTION : Attachment of Foot ASSY and Moisture Collection Tank Holder (Option) 2.7.2 Attachment of moisture collection tank holder Remove the screws from any of the 4 positions shown below. Fasten the moisture collection tank holder with the screws. Set the moisture collection tank in the holder.
- Page 19 OPERATING PROCEDURE Instrument Start-up and Shutdown ■ Use the checklist to inspect the instrument before and after use. “5.3 Checklist” (page 28) ♦ Starting the instrument Confirm that the power cord is connected. Press the power switch to turn on the power.
- Page 20 3. OPERATING PROCEDURE : Deodorization in Edger Linkage Mode Deodorization in Edger Linkage Mode ■ Edger linkage mode is a mode in which the deodorizer automatically operates in conjunction with the lens edger. ♦ Edger linkage mode (Normal) Turn the operation mode select dial to the “Normal” position.
- Page 21 MAINTENANCE Troubleshooting If the instrument does not work correctly, attempt to correct the problem according to the following table before contacting Nidek or your authorized distributor. Symptom Remedy • Check whether the power switch is turned on. • Check whether the power cord is connected properly. The deodorizer does not operate.
- Page 22 CAUTION • When disposing of used cartridges, follow the laws and local ordinances of your country. Inappropriate disposal may contaminate the environment. Vacuum any dust or processing waste that has accumulated inside the LED-1 with a vacuum cleaner.
- Page 23 Cover the area where the replacement dates are written in Step 1) with the laminate film. Attach the replacement time sticker to the lens edger to which the LED-1 is connected. The figure as shown to the right is an exam- ple.
- Page 24 Malfunction or fire may result. Turn off the power switch and disconnect the power cord from the power outlet. Disconnect the power cord and extension cord from the LED-1 inlets. Remove the fuse holder under the inlet. While holding the lever...
- Page 25 4. MAINTENANCE : Cleaning Cleaning ■ When the cover of the deodorizer is soiled, wipe it with a soft cloth. For persistent stains, soak the cloth in water, wring well, then wipe. ■ Empty the moisture collection tank before the accumu- lated water overflows.
- Page 26 4. MAINTENANCE : Consumable List...
- Page 27 SPECIFICATIONS AND TECHNICAL INFORMATION Specifications Instrument specifications Deodorization method Absorption of odorous gas using activated carbon • Installation in a table designed for a Nidek lens edger Installation type • Separate installation Power requirements Voltage 100 to 240 V AC Frequency 50/60 Hz Power consumption...
- Page 28 5. SPECIFICATIONS AND TECHNICAL INFORMATION : Specifications Transport environment Temperature -25 to 70°C (-13 to 158ºF) Humidity 20 to 85% (non-condensing) Atmospheric pressure 500 to 1,060 hPa Others 10 years from the date of initial operation (defined by manufacturer) Expected service life * Replacement of consumables is necessary.
- Page 29 5. SPECIFICATIONS AND TECHNICAL INFORMATION : Glossary Glossary Term Description A unit with a mechanism that sucks gas from the outside, passes it through Deodorizer the inside of the unit, and then exhausts it. With a cartridge set inside the unit, it is used as a deodorizer. A consumable unit with deodorizing function.
- Page 30 5. SPECIFICATIONS AND TECHNICAL INFORMATION : Checklist Checklist ♦ Pre-use checklist Item Check (date and by whom) The power cord is connected between the power inlet and outlet securely. The cables of the connected instruments are connected securely. The hoses are connected securely. The moisture collection tank is empty.
