Fisher & Paykel 9 Series User Manual
Integrated beverage centre
Hide thumbs
Also See for 9 Series:
- User manual (59 pages) ,
- Installation manual (48 pages) ,
- Quick reference manual (3 pages)
Subscribe to Our Youtube Channel
Related Manuals for Fisher & Paykel 9 Series
Summary of Contents for Fisher & Paykel 9 Series
- Page 1 INTEGRATED BEVERAGE CENTRE RS6009SBLT1 & RS6009SBL1 models USER GUIDE NZ AU UK IE HK SG...
-
Page 3: Table Of Contents
CONTENTS Safety and warnings Prior to installation Product overview Control panel Menu Using your beverage centre Adjusting your beverage centre Modes Light modes (glass door models only) Storage recommendations Wi-Fi connection Cleaning Troubleshooting Faults European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE) Customer care Registration To register your product visit our website: fisherpaykel.com/register... -
Page 5: Safety And Warnings
SAFETY AND WARNINGS WARNING! Electric Shock Hazard Failure to do so can result in death, electric shock, fire or injury to persons. • Read and follow the safety and warnings outlined in this user guide before operating this appliance. WARNING! Tip Hazard •... - Page 6 SAFETY AND WARNINGS READ AND SAVE THIS GUIDE WARNING! Read Safety Guide. Failure to follow all guides and rules could cause personal injury or property damage. When using this appliance, always exercise basic safety precautions including the following: Use this appliance only for the intended purpose as described in the user guide and installation guide of this appliance.
- Page 7 SAFETY AND WARNINGS When positioning the appliance, ensure the power cord is not trapped or damaged. If the power cord is damaged, it must only be replaced by your Fisher & Paykel trained and supported service technician. Do not operate electrical equipment or any other equipment that may produce arcs, sparks or flames in the area.
- Page 8 SAFETY AND WARNINGS Regularly clean accessible draining systems and surfaces. GLASS DOOR: Use only mild liquid detergent dissolved in warm water and a soft cloth. Rinse with clean water and dry with a clean, lint-free cloth. Disposal Extreme care must be taken when disposing of your old appliance to avoid hazards: The flammable refrigerant gas must be safely removed by a qualified service technician.
-
Page 9: Prior To Installation
PRIOR TO INSTALLATION The anti-tip bracket and fittings supplied must be fitted to the wall of the finished enclosure to withstand a 100kg load. Your appliance may include front and rear rollers designed for moving the appliance forward and backward. Do not move the appliance sideways as this may damage the rollers or the floor covering ... -
Page 10: Product Overview

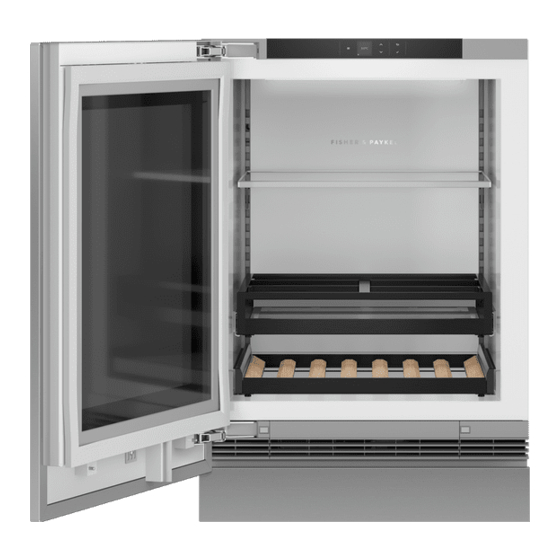

PRODUCT OVERVIEW Beverage 6.0°C RS6009SBLT1 illustrated with door panel and toe kick (not supplied). Features 1 Control panel 5 Wine rack 2 Adjustable glass shelf 6 Lighting 3 Beverage rack 7 Door contacts (glass door model only) 4 Beverage rack dividers... -
Page 11: Control Panel
CONTROL PANEL Beverage 6.0°C 1 Menu Press to access product features and settings, or to return to standby. If the display has been locked, hold for two seconds to unlock. 2 Display screen Displays product features and settings. 3 Scroll Press to select modes and adjust temperatures. -
Page 12: Menu
MENU Beverage 6.0°C TEMPERATURE SET Select a mode or adjust the temperature. Refer to ‘Modes’. MAX COLD Quickly cool down items that have just been added to the product. The product will temporarily drop to its coldest temperature. Available when set to Fridge or Beverage mode only. -
Page 13: Using Your Beverage Centre
USING YOUR BEVERAGE CENTRE Fridge Select a mode and a temperature to suit the beverages you will be storing. See ‘Modes’ and 3.0 °C ‘Storage recommendations’ for details. Adjust the settings as needed to suit your preferences. Accessing the menu Fridge Fridge 3.0 °C... - Page 14 3.0 °C 3.0 °C Fridge 3.0 °C USING YOUR BEVERAGE CENTRE Fridge 3.0 °C Selecting and adjusting modes and temperatures Fridge Fridge 3.0 °C 3.0 °C 1. Press to access Fridge Fridge 3.0 °C Temperature SET through the Fridge 5.0 °C Temperature Fridge 5.0 °C...
-
Page 15: Adjusting Your Beverage Centre
ADJUSTING YOUR BEVERAGE CENTRE This product is designed to store a selection of beverages such as cans, and bottles of beer or wine. For best results, take care not to overfill the product. Ensure you leave enough space for airflow. Glass shelf Adjust height or remove as needed. - Page 16 ADJUSTING YOUR BEVERAGE CENTRE Removing and refitting racks The wine and beverage racks are in fixed positions, but they can be removed to make space for larger items if required. 1. Pull the rack towards you and locate the pins at the base of the corners.
-
Page 17: Modes
MODES Modes provide the ideal storage and serving temperatures for a variety of beverage items. You can select a range of temperatures within each mode. When you change modes, the beverage centre will default to your previously selected temperature. BEVERAGE For a variety of alcoholic and non-alcoholic beverages. -
Page 18: Light Modes (Glass Door Models Only)
LIGHT MODES (GLASS DOOR MODELS ONLY) Light modes let you select the illumination level of beverages and the surrounding environment. Light mode will default to after 3 hours to ensure the best beverage care. LIGHT MODE Select to turn off all compartment lights. Best mode for long-term storage. -
Page 19: Storage Recommendations
STORAGE RECOMMENDATIONS RECOMMENDED ITEM TEMPERATURE Beaujolais, Merlot 12 – 14°C Burgundy, Pinot Noir, Chianti 14°C Fortified and dessert wines 11 – 14°C Gewurztraminer 12°C Chardonnay 10 – 12° Rose 10 – 12° Viognier 10°C Chablis 8 – 10°C Riesling 8°C Sauvignon Blanc, Pinot Gris 6 – 8°C All varieties 6 – 8°C Strong lagers, real and cask ales, Belgian Dubbels 10°C Stouts, Porters 6 – 8°C... -
Page 20: Wi-Fi Connection
WI-FI CONNECTION Your appliance may be connected to your home wireless network and operated remotely using the app. Getting started Ensure your home Wi-Fi network and Bluetooth on your mobile device are turned on. You will be given step-by-step guidance on mobile device. It may take up to 10 minutes to connect your appliance. -
Page 21: Cleaning
CLEANING Surfaces, glass shelf and beverage rack Remove racks, then wipe interior surfaces with a damp cloth and mild detergent. Dry with a clean, lint-free cloth. Use a small brush to clean difficult to reach spots if needed. We do not recommend using the following cleaning products as they may cause damage: Plastic or stainless steel scouring pads Abrasive, solvent, household cleaners Acid or alkaline cleaners... -
Page 22: Troubleshooting
TROUBLESHOOTING General use Fridge 3.0 °C Why will the product not turn on? No power. Make sure the product is connected to the power supply and switched on at the wall. Check the circuit breaker, or check if there is a power cut in your home or area. If the product still won’t turn on, call Customer Care or your Authorised Service Centre. - Page 23 TROUBLESHOOTING Why is the door not closing? Items in the product are preventing door from closing tightly. Rearrange items so door can close. Product is not installed correctly. Check Installation guide at www.fisherpaykel.com or call Customer Care or your Authorised Service Centre. Why is there condensation inside the product? Frequent or long door openings.
-
Page 24: Faults
FAULTS If a fault occurs, there will be 4 rapid beeps and the fault will be displayed on the control panel. Record the fault code and contact a Fisher & Paykel trained and supported service technician in order to repair the fault. You can do this by going online to fisherpaykel.com or by contacting our Customer Care Centre. -
Page 25: European Directive 2012/19/Eu On Waste Electrical And Electronic Equipment (Weee)
EUROPEAN DIRECTIVE 2012/19/EU ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE) EU This appliance is marked according to the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate handling of this product. - Page 26 MANUFACTURER’S WARRANTY AND SERVICE GUIDE To access your Warranty and Service Guide Scan the QR code with your smartphone to access your warranty and book a service, refer to your separate warranty and service book or view online at: New Zealand https://www.fisherpaykel.com/nz/help-and-support/warranty-information Australia https://www.fisherpaykel.com/au/help-and-support/warranty-information...
-
Page 27: Customer Care
CUSTOMER CARE Before you call for service or assistance Check the things you can do yourself. Refer to your User guide and check: 1 Your product is correctly installed. 2 You are familiar with its normal operation. 3 You have read the ‘Before you call for service or assistance’, ‘Faults’ and ‘Troubleshooting’. - Page 28 CUSTOMER CARE In UK or Europe if you need assistance Call the Fisher & Paykel Customer Care Centre and talk to one of our Customer Care Consultants. Toll Free: 08000 886 605 Website: fisherpaykel.com Postal address: Fisher & Paykel Appliances Ltd 420 Cob Drive Swan Valley Northampton NN4 9BB...
- Page 29 CUSTOMER CARE If you need service Fisher & Paykel has a network of Fisher & Paykel trained and supported service technicians that can carry out any service necessary on your appliance. Our Customer Care Centre can recommend a Fisher & Paykel trained and supported service technician in your area, or you can book one online at fisherpaykel.com.
- Page 30 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2024. All rights reserved. The models shown in this guide may not be available in all markets and are subject to change at any time. The product specifications in this guide apply to the specific products and models described at the date of issue.
