AFX • USER GUIDE
ACOUSTIC CHORUS PEDAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AFX CHORUS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fishman AFX CHORUS

Summary of Contents for Fishman AFX CHORUS

  • Page 1 AFX • USER GUIDE ACOUSTIC CHORUS PEDAL...
  • Page 2 clip | batt warm bright slow fast l e v el t o n e sp e e d chorus 1 rotary chorus 2 phaser chorus 3 flanger stereo tremolo narrow tremolo CHORUS A C O US T I C E F F E C T S...

  • Page 3: Quick Start

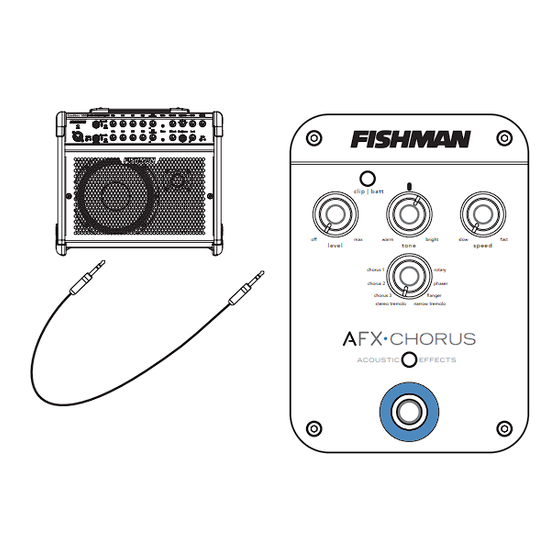

    Quick Start Power – Install a 9V alkaline or lithium battery (not included). Plug in – Use standard ¼-inch shielded instrument cables. Set input gain – Play hard and try both normal and boost modes. The clip/batt LED may fl ash occasionally. Select an effect –...
  • Page 4 Using Other Effects When using multiple pedals, we recommend connecting them in this order, however feel free to experiment. clip | batt c lip | ba t t c l i p | b a t t warm bright short long warm bright...

  • Page 5: Right Side Panel

    Or, for stereo operation, connect the outputs from another stereo effects pedal to both the left and right inputs. Note: The input for all Fishman AFX pedals is ideal for active pickups and all soundhole pickups. For passive piezo pickups (no preamp built into the instrument) we recommend plugging directly into an impedance-matching preamp fi...
  • Page 6 Right Side Panel (continued) Input Gain This switch lets you quickly set the best operating level for your pickup. Start with the input gain switch set to normal. When you play hard, the clip/batt LED should fl ash only occasionally. If the LED does not fl ash with hard playing, select boost.

  • Page 7: Left Side Panel

    Left Side Panel Output Use a standard guitar cable to connect either the left or right output to another pedal, amplifi er or mixing board. For stereo operation, connect both left and right outputs. 9vdc See Power section on next page. 9 v dc rig ht o utput...
  • Page 8 To conserve the battery, remove the plug(s) from the input jack(s) when not in use. For AC power, use the Fishman 910-R (for 110V) or other suitable 9V adapter. The adapter must be fi ltered, regulated and rated for at least 200mA. It must also accept AC power appropriate for your country.
  • Page 9 Controls Level The level control mixes the selected effect in parallel, adding as much or as little chorus as you want in addition to your direct sound. This means that your tone is preserved while the effect is blended into it. Tone Use this to add brightness or warmth to the sound of the effect without altering your direct sound.
  • Page 10 Controls (continued) Effect Select Knob AFX • Chorus offers eight popular modulation effects, EQ’d to work well with the resonances found in acoustic instruments. Be sure to check them all out in stereo as many can create a very wide, dramatic effect. Chorus 1 This is a very subtle chorus which adds a light detuning and wide stereo image.
  • Page 11 Controls (continued) Stereo T remolo When used in stereo, this tremolo sounds more like a traditional panner, mov- ing the audio source from left to right and back again. When used in mono, this tremolo has a very sinusoidal, or even, waveshape, reminiscent of classic surfer songs.
  • Page 12 Controls (continued) Phaser This is a classic ’70s modulation effect that adds motion and constantly shifting harmonics. Like the choruses and fl anger, many fi nely-tuned delays are in con- stant motion, but spread apart to create wild effects that retain great defi nition. Rotary Simulates the spinning sound and Doppler effect of a rotary speaker cabinet.

  • Page 13: Battery Replacement

    Battery Replacement The clip/batt indicator will light steadily when it is time to change the battery. Open the battery door underneath the pedal and install a fresh 9V alkaline or lithium battery. When the clip/batt LED comes on you have approximately one hour of remaining battery life.

  • Page 14: Specifications

    9V alkaline battery or 9VDC adapter Typical in-use current consumption: 23.5mA Typical 9V alkaline battery life: 21 hours 9V adapter: Fishman 910-R (for 110V) or suitable fi ltered and regulated, 200mA type, tip = negative Input impedance: 1M Ohm Nominal output impedance:...
  • Page 16 www.fi shman.com 513-300-129 Rev C 11-07...
