3onedata GW11X4-4DI Series User Manual

GW11X4-4DI (RS-485) Series
Modbus Gateway User Manual
Shenzhen 3onedata Technology Co., Ltd.
Add: 3/B, Zone 1, Baiwangxin High Technology Industrial
park, Nanshan District, Shenzhen, 518108 China
Tel: +86-755-26702668
Fax: +86-755-26703485
E-mail: sales@3onedata.com
Website: www.3onedata.com
【Summarize】
The GW11X4-4DI(RS-485) series
serial-to-Ethernet Modbus gateways that convert between
Modbus TCP and Modbus RTU/ASCII protocols. They
support 4-channel RS-485/422 serial ports (RJ45) and
1/2-port 10/100Base-T(X) Ethernet interface optional.
Modbus TCP, Modbus RTU and Modbus ASCII protocol are
integrated in the products, users can easily realize the
seamless integration of Modbus Ethernet devices and
Modbus serial devices and even multi master and slave
hybrid networks. At the same time, the user can be set up by
Web or Telnet. The simple design can not only realize the
fast application, but also guarantee the application of the
entire real industrial environment.
The products using EMC protection design. Power has over
current, over voltage protection, and can work in rugged
environment. The design support wall mounting installation,
easy to use for your projects.
【Packing list】
Please check the packaging and accessories when you first
use the device.
Modbus Gateway ⅹ 1
Documentation and software CD ⅹ 1
User manual ⅹ 1
Wall mounting kits ⅹ 2
Power adapter ⅹ 1
Straight-through cable ⅹ 1
Rubber shock absorber pad ⅹ 4
Warranty card ⅹ 1
Qualify certificate ⅹ 1
Please contact us or our distributors if your equipment has
been damaged or if any accessories are lost. We will try our
best to satisfy you.
【Feature】
Supports 1/2-port 10/100Base-T(X) and 4-channel
RS-485/422 serial port optional
- 1 -
The 2-port 10/100Base-T(X) Modbus gateway supports
two IP addresses and two MAC addresses
gateways are
Supports 300~115200bps non-blocking communication
Supports RTU Slave, RTU Master, ASCII Slave and
ASCII Master working modes
Supports Modbus TCP, Modbus RTU, Modbus ASCII,
IP, ARP, DHCP and DNS protocols
Slave mode support 16 TCP master connections
Master mode support 32 slave TCP connection
requests
Isolated serial port: 3K VDC or 2K Vrms
Supports response timeout and interval timeout
settings
Supports ID mapping function, to achieve the
management of the host ID
Supports WEB and Telnet configurations
Supports IP address and MAC address filtering function
Supports cross-gateway and cross-router
communication
Provide Windows configuration tools for easy to use,
easy to bath install.
IP30 protection grade, metal shell, wall mounted
installation
No fan, low consumption design
Working temperature: -40～75°C

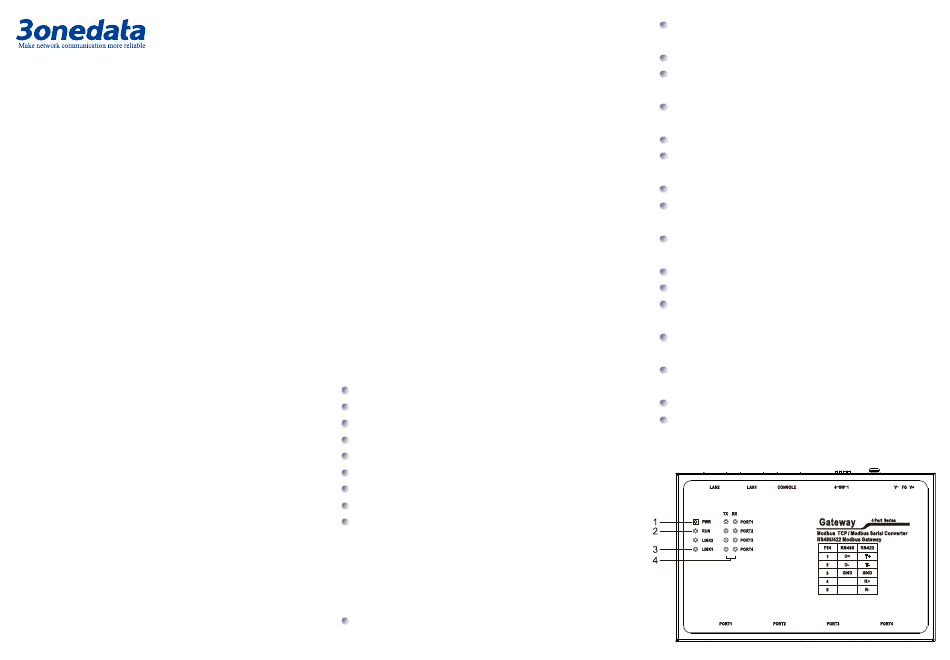

【Panel layout】
Vertical view:
