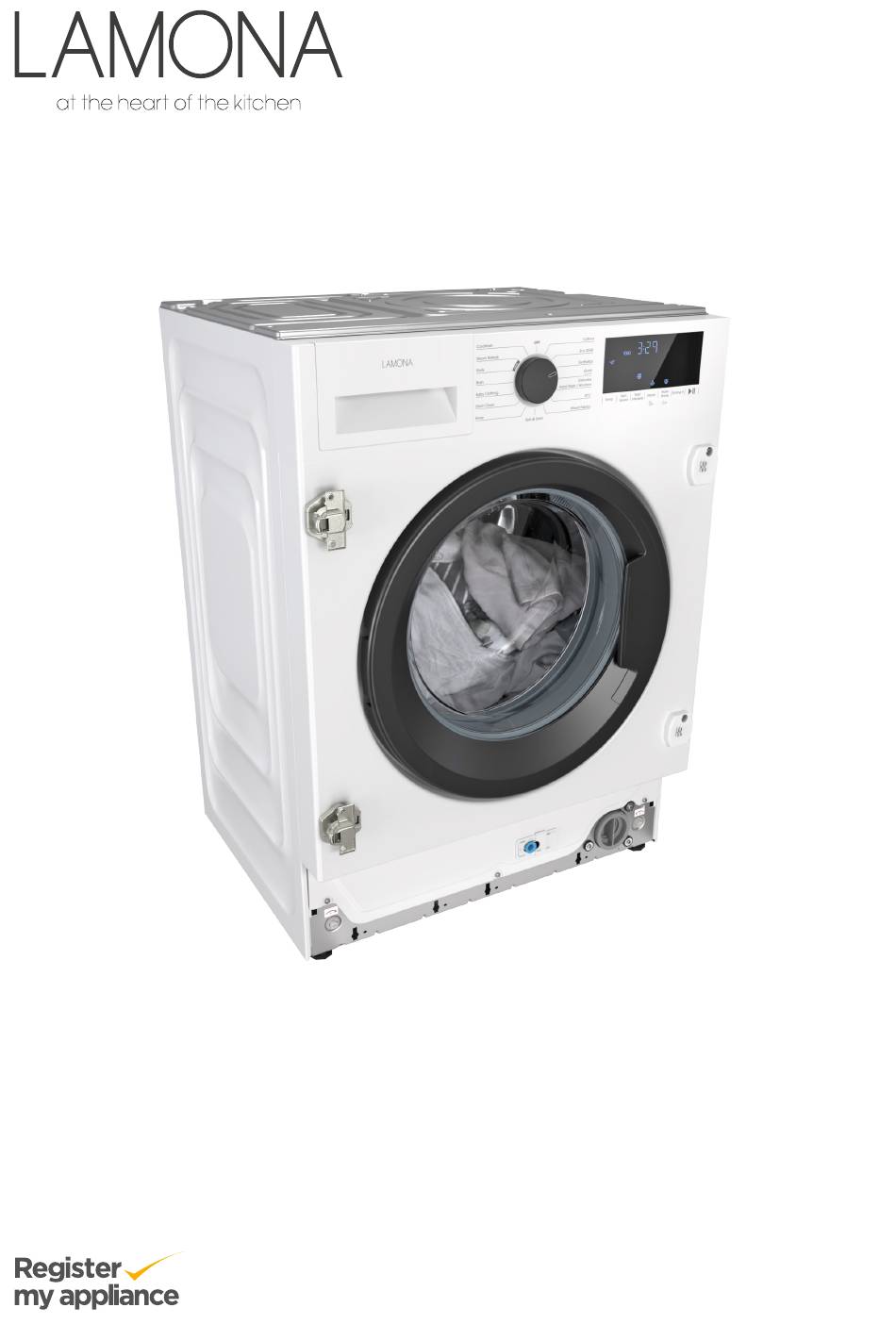

Washing Machine
LAM8741 / LAM8721
Generic instructions, (To be used in conjunction with User Instructions).
l Please read the Installation Manual to ensure safe fitting and use of the appliance.
l The appliance should be fitted by a suitably competent and qualified person.
l Please keep these instructions in a safe place for future reference.
l Danger of suffocation keep packaging material away from children.
Installation Instructions
ISSUE v1.1 160425
www.howdens.com/appliance-registration
Advertisement
Related Manuals for Lamona LAM8741
Summary of Contents for Lamona LAM8741
- Page 1 Washing Machine LAM8741 / LAM8721 Generic instructions, (To be used in conjunction with User Instructions). l Please read the Installation Manual to ensure safe fitting and use of the appliance. l The appliance should be fitted by a suitably competent and qualified person.
- Page 2 Safety Information Two person lift. Washing machine must Risk of injury: This appliance is not be fixed securely and Beware of sharp metal designed for stacking level. edges. Use gloves when with other appliances. handling. DO NOT PUSH NOTE: If the electricity Ensure that all packing Risk of damage to cable is damaged it...
- Page 3 Installation overview guide REMOVE TRANSIT POLY BLOCK ......p.4 8. Positioning the washing machine ........p.9 2. REMOVE TRANSIT BOLTS..........p.4 9. Check machine fills and empties........p.10 3. Dimensions ................p.5 10. Fit decor door and magnetic catches ......p.10 4. Fit fascia fillet and anti-tilt support ........p.5 11.
- Page 4 1 - Remove transit item IMPORTANT: REMOVE POLY BLOCK. Polystyrene packaging Insert Acoustic cover Poly block 2 - Remove transit bolts Squeeze tabs to remove 10mm open ended spanner Insert cover caps www.howdens.com...
- Page 5 3 - Dimensions (all measurements in mm) Position the washing machine relative to service connections. Ensure the floor is level and strong enough to support a fully loaded washing machine. (If necessary, to raise machine, use a solid 8 - 10mm board secured to the floor).
- Page 6 5 - Prepare the decor door 597mm 12mm Left hand hinged (+1mm) 31mm 35mm Dia. door opening shown, (right hand opposite). 22.5mm 45mm 4.5mm * Check and drill hole according 47mm to the actual hole Example drilling position of door frontal 35mm range being used (based on...
- Page 7 6 - Washing machine connections All dimensions are to the floor max. insert 1000mm 100mm 1000mm max. 40 0m m 400mm mi n. 300mm All dimensions are to the floor DO NOT insert hose too deep into the waste pipe, Max. hose length, 3.2 m. Supply REMOVE CAP / END...
- Page 8 7 - Connect water hoses (cold water supply only) Cold water supply (IN) Outlet Supply NOTE: Rotate the water hose towards the water supply and hand tighten. (Always use the new hose supplied with the washing machine). Alternative Routing: Use provided clip Cold water supply 10-80 lpm.
- Page 9 8 - Positioning the washing machine (NEVER move the washing machine with the feet fully extended). DO NOT adjust the rear feet until in final position. Supply DO NOT KINK HOSES Rotate to supply. DO NOT PUSH/PULL on the the washing machine control panel fascia area.
- Page 10 9 - Check machine fills and empties without problem before fitting frontal Select Rinse program and check machine fills and empties without problems. Check for leaks. 10 - Fit decor door and magnetic catches 2x Torx T25 (M5 x 20) (If 2 magnets provides too much resistance, a suitable Magnetic...
- Page 11 11 - Raise, level and align the machine (using the front and rear feet) DO NOT use high Adjust front feet by hand. speed impact power tools. Locknut Loosen the locknut and Airbags can help. adjust the two front feet. DO NOT damage the Rear Feet Adjustment (handed).
- Page 12 12 - Drain hose and filter 13 - Plinth Ensure blue cap is ON. DO NOT turn water supply on if cap is OFF. Cut a section of plinth infront of machine for easy access to filter. Decorative Plinth Emergency It may be necessary Door Release to make a cut-out.
- Page 13 Notes Exclusive to Howdens...
- Page 14 Notes www.howdens.com...
- Page 15 Notes Exclusive to Howdens...
- Page 16 Product serial number (Place sticker here) REPRISE À DÉPOSER À DÉPOSER À LA LIVRAISON EN MAGASIN EN DÉCHÈTERIE Cet appareil se recycle Points de collecte sur www.quefairedemesdechets.fr Privilégiez la répara�on ou le don de votre appareil! Product information correct at the time of publication in April 2025. The company has a policy of continuous product development and reserves the right to change any products and specifications given in this manual.
