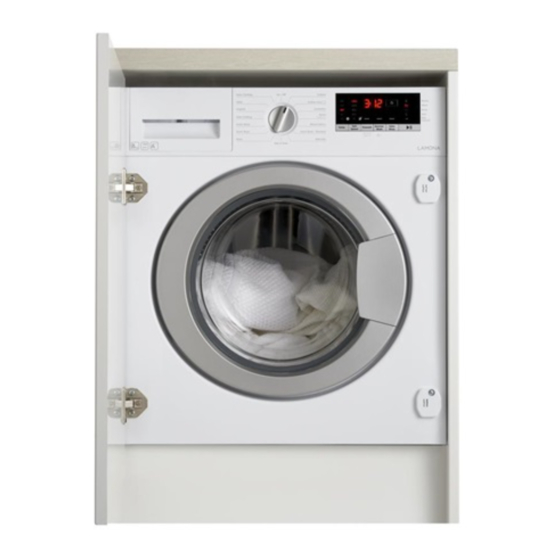

Washing Machine
Installation Instructions
(To be used in conjunction with User Instructions)
l Please read these Installation Instructions to ensure safe,
correct fitting of this appliance.
l T he washing machine should be fitted by a suitably competent,
qualified person.
l P lease keep these instructions in a safe place for future reference.
l D anger of suffocation keep packaging material away from children.
Throughout this manual the
following symbols are used.
Warning for hazardous
situations with regard to
life and property.
Warning for
electric shock.
Warning for
risk of fire.
LAM8702/03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LAM8702 and is the answer not in the manual?

Questions and answers

Related Manuals for Lamona LAM8702

Summary of Contents for Lamona LAM8702

  • Page 1 LAM8702/03 Washing Machine Installation Instructions (To be used in conjunction with User Instructions) l Please read these Installation Instructions to ensure safe, correct fitting of this appliance. l T he washing machine should be fitted by a suitably competent, qualified person. l P lease keep these instructions in a safe place for future reference. l D anger of suffocation keep packaging material away from children. Throughout this manual the following symbols are used.
  • Page 2 Safety Information Two person lift. Washing machine must Risk of injury: This appliance is not be fixed securely and Beware of sharp metal designed for stacking level. edges. Use gloves when with other appliances. handling. NOTE: If the electricity Ensure that all packing Risk of damage to DO NOT PUSH against the washing cable is damaged it and transit protectors property: machine fascia panel. must be replaced by a have been removed Take care of surrounding competent person.

  • Page 3: Table Of Contents

    Fitting guide Remove transit POLY BLOCK ......p.4 2. Remove transit bolts...........p.4 Dimensions ............p.5 4. Fit fascia fillet and anti-tilt support ....p.5 5. Prepare the décor door ........p.6 Washing machine connections ......p.7 Connecting water hose ........p.8 Positioning the washing machine ......p.9 9. Fit décor door and magnetic catches ....p.10 10. Raise and level the machine ......p.11 11. Drain hose and filter ..........p.12 12. Plinth ..............p.12 Parts supplied A (4.5x10) B (3x15mm) www.howdens.com...

  • Page 4: Remove Transit Poly Block

    1 - Remove transit item IMPORTANT: REMOVE POLY BLOCK. 2 - Remove transit bolts 10mm open ended spanner www.howdens.com...

  • Page 5: Dimensions

    3 - Dimensions Position the washing machine relative to service connections. 820-920mm 554mm 597mm 575 mm 817mm - 831mm 600mm Ensure the floor is level and strong enough to support a fully loaded washing machine. 15mm 4 - Fit décor fillet and anti-tilt block Décor fillet can be added Anti-tilt block Min 5mm 45-50mm Max 15mm Example nominal set-up *25mm *At nominal set up -...

  • Page 6: Prepare The Décor Door

    5 - Prepare the décor door 597mm 12mm Left hand hinged door (+1mm) 31mm opening shown, 35mm Dia. (right hand opposite). 22.5mm 45mm 4.5mm *Check and drill hole according to 47mm the actual hole Example drilling position of door frontal range 35mm being used. 84.5mm *21.5mm Cross head...

  • Page 7: Washing Machine Connections

    6 - Washing machine connections max. 1000mm 100mm 1000mm 500mm 500mm 300mm 300mm All dimensions are to the floor. DO NOT insert the hose too deep into the waste pipe, (Maximum hose length, 3.2 metres). REMOVE CAP/END NOTE: Ensure hoses are not NOTE: If necessary loosen and Ensure cap/end is removed from rotate the water hose towards waste pipe spigot. kinked or trapped behind the the water supply and re-tighten.

  • Page 8: Connecting Water Hose

    Incorrect waste pipe configuration. Correct waste pipe configuration. 7 - Connect water hose (cold water supply only) NOTE: Rotate the water hose towards the water supply and tighten. (Always use the new hose supplied with the washing machine). www.howdens.com...

  • Page 9: Positioning The Washing Machine

    8 - Positioning the washing machine & DO NOT adjust the rear feet until in final position, (NEVER move the washing NOTE: Ensure hoses machine with the rear feet are not kinked or extended). trapped behind the washing machine. DO NOT PUSH against the washing machine fascia panel. www.howdens.com...

  • Page 10: Fit Décor Door And Magnetic Catches

    9 - Fit décor door and magnetic catches A (4.5x10) A (4.5x10) www.howdens.com...

  • Page 11: Raise And Level The Machine

    10 - Raise and level the machine Raise and level the washing machine using the front and rear feet. Adjust front feet by hand. DO NOT use high Loosen the locknut(s) and Tighten locknut(s) by hand only. speed impact adjust the front feet. power tools. DO NOT damage the plastic screw Adjust rear feet by using front screws. heads. NOTE: The rear feet screw adjustment is handed. Rear Rear foot foot...

  • Page 12: Drain Hose And Filter

    11 - Drain hose and filter Ensure hose remains in position during installation. DO NOT remove end cap. 12 - Plinth Ensure customer can remove plinth section easily. Access to filter and drain hose is necessary after installation. We recommend the length of plinth in front of the washing machine is easily removable for easy access to drain hose and filter. MAKING SPACE MORE VALUABLE Product information correct at the time of publication in June 2018. The company has a policy of continuous product development and reserves the right to change any products and specifications given in this manual. Subject to the Terms and Conditions of Trading, a copy of the Howdens Joinery Terms and Conditions is available upon request.
