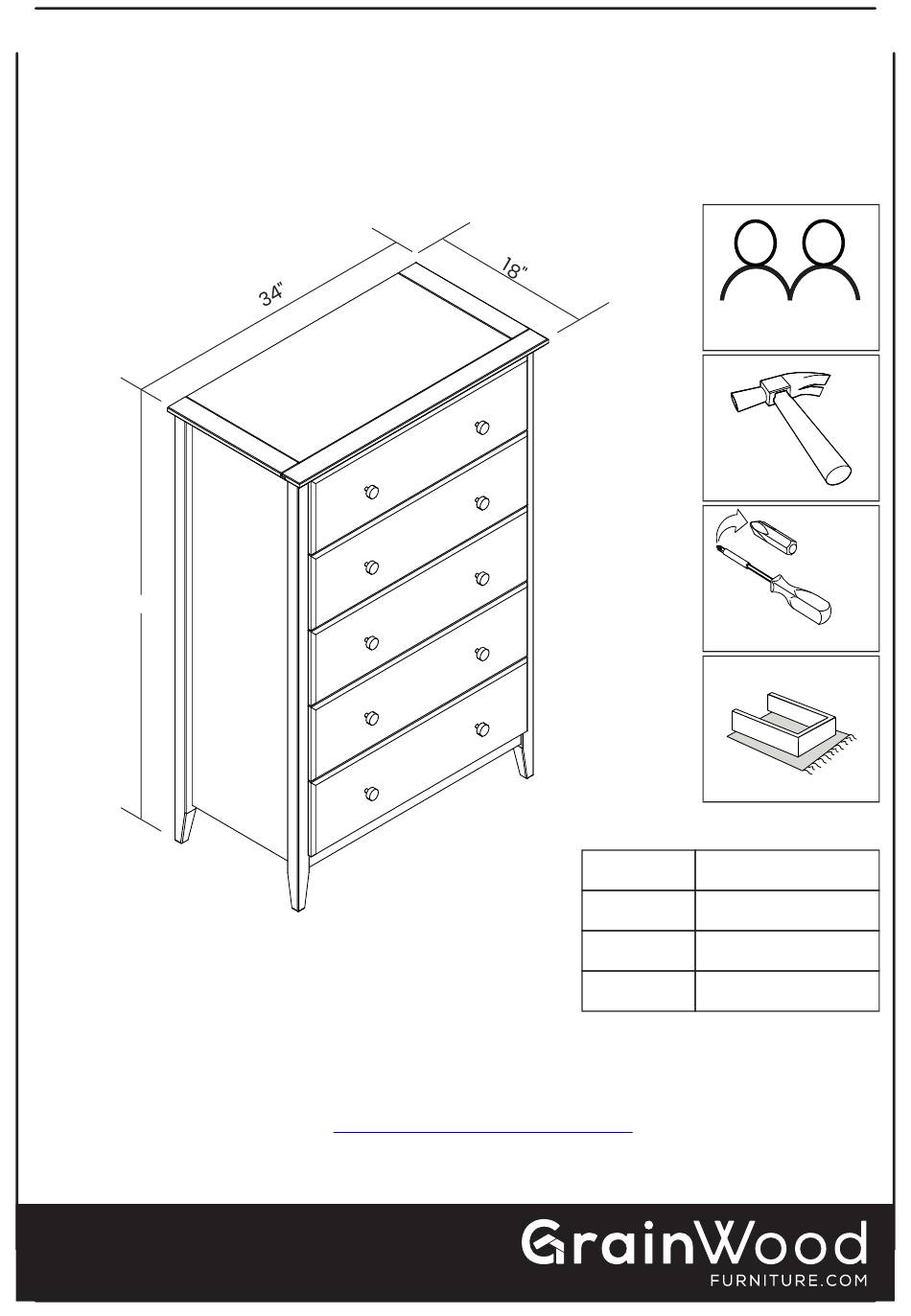

51 ¼"
Thank you for choosing Grain Wood Furniture, it is an honor to be in your home!
If you have any questions, feedback, or need replacement parts please contact us at:
grainwoodfurniture.com/help or
Greenport Collection
5-Drawer Chest
REV - 07/2021
All manuals and user guides at all-guides.com
Assembly Instructions
support@grainwoodfurniture.com
Made in Brazil
2-person assembly
Model #
Finish
GP0703
Brushed White
Brushed Driftwood
GP0716
Brushed Grey
GP0740
PH #2
page 1/13
Advertisement
Related Manuals for Grain Wood Furniture Greenport GP0703
Summary of Contents for Grain Wood Furniture Greenport GP0703
- Page 1 Brushed Driftwood GP0716 Brushed Grey GP0740 Thank you for choosing Grain Wood Furniture, it is an honor to be in your home! If you have any questions, feedback, or need replacement parts please contact us at: grainwoodfurniture.com/help or support@grainwoodfurniture.com Greenport Collection...
- Page 2 All manuals and user guides at all-guides.com PLEASE READ BELOW BEFORE BEGINNING ASSEMBLY Enlist help from a friend or family member as most items require two Ÿ people for proper assembly. Choose a spacious, open area near where the piece will be located once Ÿ...
- Page 3 All manuals and user guides at all-guides.com HARDWARE LIST 61 + 2 ANTI-TIPPING RESTRAINT KIT 4,0x30 2 + 1 16 + 1 3,0x20 3,5x14 10 + 1 M4x25 40 + 2 6,0x10 62 + 2 8,0x25 RIGHT Side 330mm - 13" Drawer RIGHT 330mm - 13"...
- Page 4 All manuals and user guides at all-guides.com Box A - 1 of 2 Qty. Description Part # Right side Left side Upper crosspiece Lower crosspiece Back panel Drawer front Drawer right side Drawer left side Drawer bottom Drawer back Drawer bottom support Profile “H”...
- Page 5 All manuals and user guides at all-guides.com Tip : Use a hammer in case dowels are hard to install by hand. 8,0x25 C2 C2 C2 C2 RIGHT Side 330mm - 13" LEFT Side 6,0x10 330mm - 13" page 5/13...
- Page 6 All manuals and user guides at all-guides.com Attention: There are no predrilled holes for the A1 screws on parts 02 and 03. 4,0x30 Attention: There are no predrilled holes for the A1 screws on part 01. 4,0x30 page 6/13...
- Page 7 All manuals and user guides at all-guides.com Make sure back panels are perfectly aligned with side panels and top and there are NO gaps. û ü ü 10x10 û ü 10x10 page 7/13...
- Page 8 All manuals and user guides at all-guides.com 10x10 page 8/13...
- Page 9 All manuals and user guides at all-guides.com Attention: There are no predrilled holes for the A4 screws on parts 07 and 16. 3,5x14 Attention: There are no predrilled holes for the A4 screws on parts 02 and 03. 3,5x14 page 9/13...
- Page 10 All manuals and user guides at all-guides.com Attention: There are no predrilled holes for the A1 screws on part 08. 1" 4,0x30 page 10/13...
- Page 11 All manuals and user guides at all-guides.com Flip the assembled drawer upside down to install glides. 6,0x10 Drawer RIGHT 330mm - 13" Drawer LEFT 330mm - 13" M4 x 25 page 11/13...
- Page 12 All manuals and user guides at all-guides.com Place the labeled drawer on the top position page 12/13...
- Page 13 All manuals and user guides at all-guides.com ANTI-TIPPING RESTRAINT KIT Install against the furniture on the wall Anchors and screws are not included, choose best type based on your wall Install both parts F8 3,0x20 Tighten them together using the safety strap page 13/13...
