32"
Thank you for purchasing our furniture, it's an honor to be
in your home!
Every effort has been made to ensure your Wood Furniture is
of the finest quality. If you have any questions or need
any replacement parts, please do not hesitate to contact
us at www.grainwoodfurniture.com .
REV - 6/2016

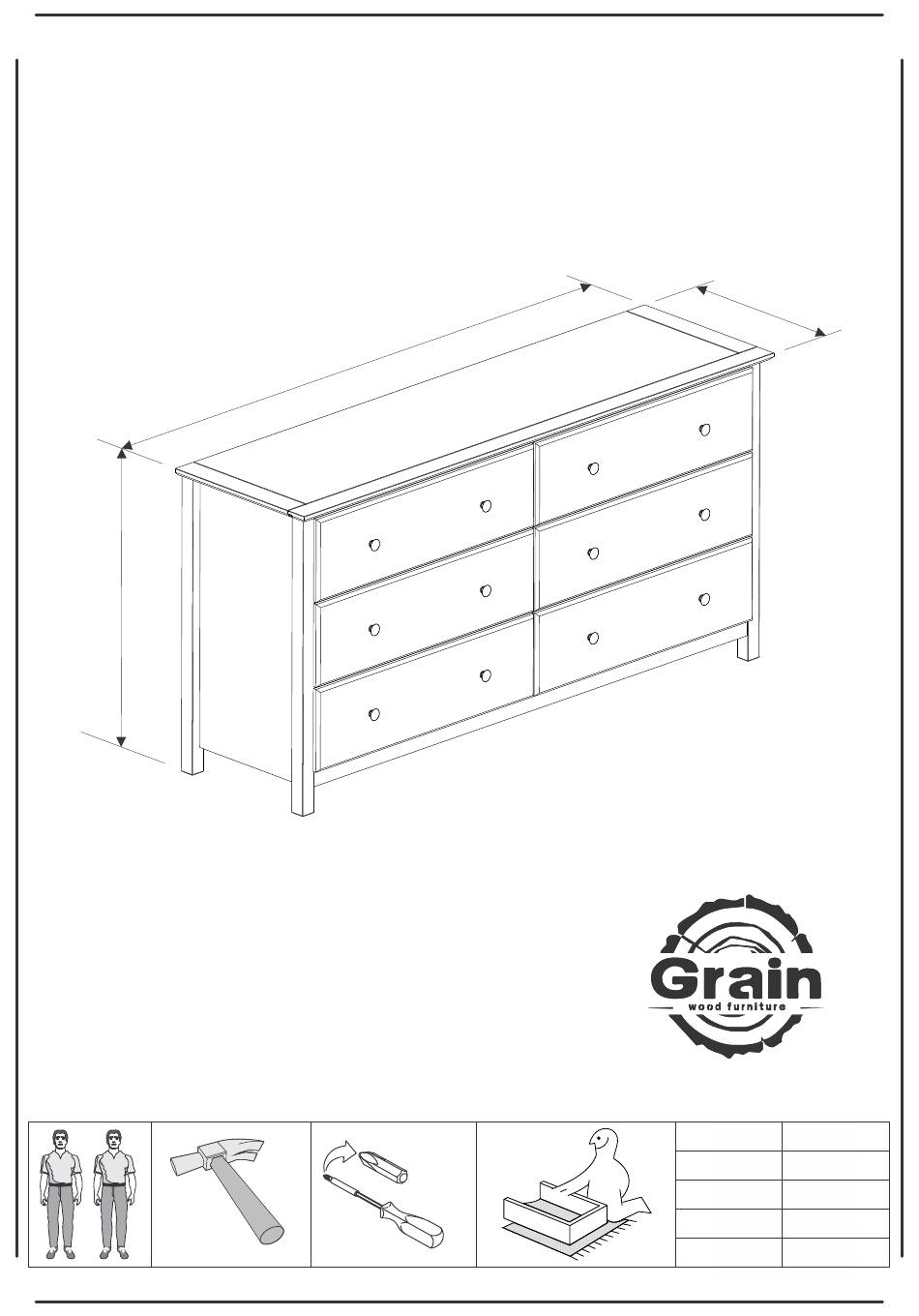

Assembly Instructions
Shaker Collection
6 Drawer Dresser
63 3/4"
PH#2
MADE IN BRAZIL
18"
www.grainwoodfurniture.com
Model #
SH050112
SH050212
SH050312
SH050412
Finish
Cherry
Expresso
Honey
Walnut
page 1/11
Advertisement
Related Manuals for Grain Wood Furniture Shaker SH050112
Summary of Contents for Grain Wood Furniture Shaker SH050112
- Page 1 Assembly Instructions Shaker Collection 6 Drawer Dresser 18” 63 3/4” 32” Thank you for purchasing our furniture, it’s an honor to be in your home! Every effort has been made to ensure your Wood Furniture is of the finest quality. If you have any questions or need any replacement parts, please do not hesitate to contact us at www.grainwoodfurniture.com .
- Page 2 Here are some tips on assembling your flat-pack furniture in order to minimize your assembly time and frustrations: -Do Not throw away packaging material until assembly is complete. -Assemble the item on a soft surface, such as cardboard or old blanket, to protect finish from possible dents of scratches.
-
Page 3: Hardware List
ATTENTION Before starting assembly please verify if the hardware set is complete. For missing hardware please contact us at www.grainwoodfurniture.com HARDWARE LIST 81 + 2 4,0x30 69 + 2 3,5x14 4,0x25 12 + 1 M4x25 76 + 2 8,0x25 400mm - 15 3/4" 400mm - 15 3/4"... -
Page 4: Parts List
Parts list Box 1 Box 2 Part # Description Part # Description Right side Lower crosspiece Left side Back panel Upper crosspiece Drawer front Rear crosspiece Drawer bottom Drawer right side Drawer back Drawer Left side Profile “H” Drawer bottom support Hardware Division... - Page 5 8,0x25 A4 A4 3,5x14 180º 400mm - 15 3/4" 400mm - 15 3/4" page 5/11...
- Page 6 4,0x30 4,0x30 page 6/11...
- Page 7 11 A18 4,0x25 4,0x30 10x10 page 7/11...
- Page 8 3,5x14 10x10 page 8/11...
- Page 9 4,0x30 FLIP THE ASSEMBLED DRAWER UPSIDE DOWN TO INSTALL GLIDES 3,5x14 400mm - 15 3/4" 400mm - 15 3/4" M4x25 page 9/11...
- Page 10 If fine tunning on the glides is needed please follow the steps below page 10/11...
- Page 11 Set in furniture not included 3,5x14 page 11/11...
