JETWAY 815EDA1A User Manual

M/b for socket 370 pentium iii processor
Hide thumbs
Table of Contents

Advertisement

Quick Links

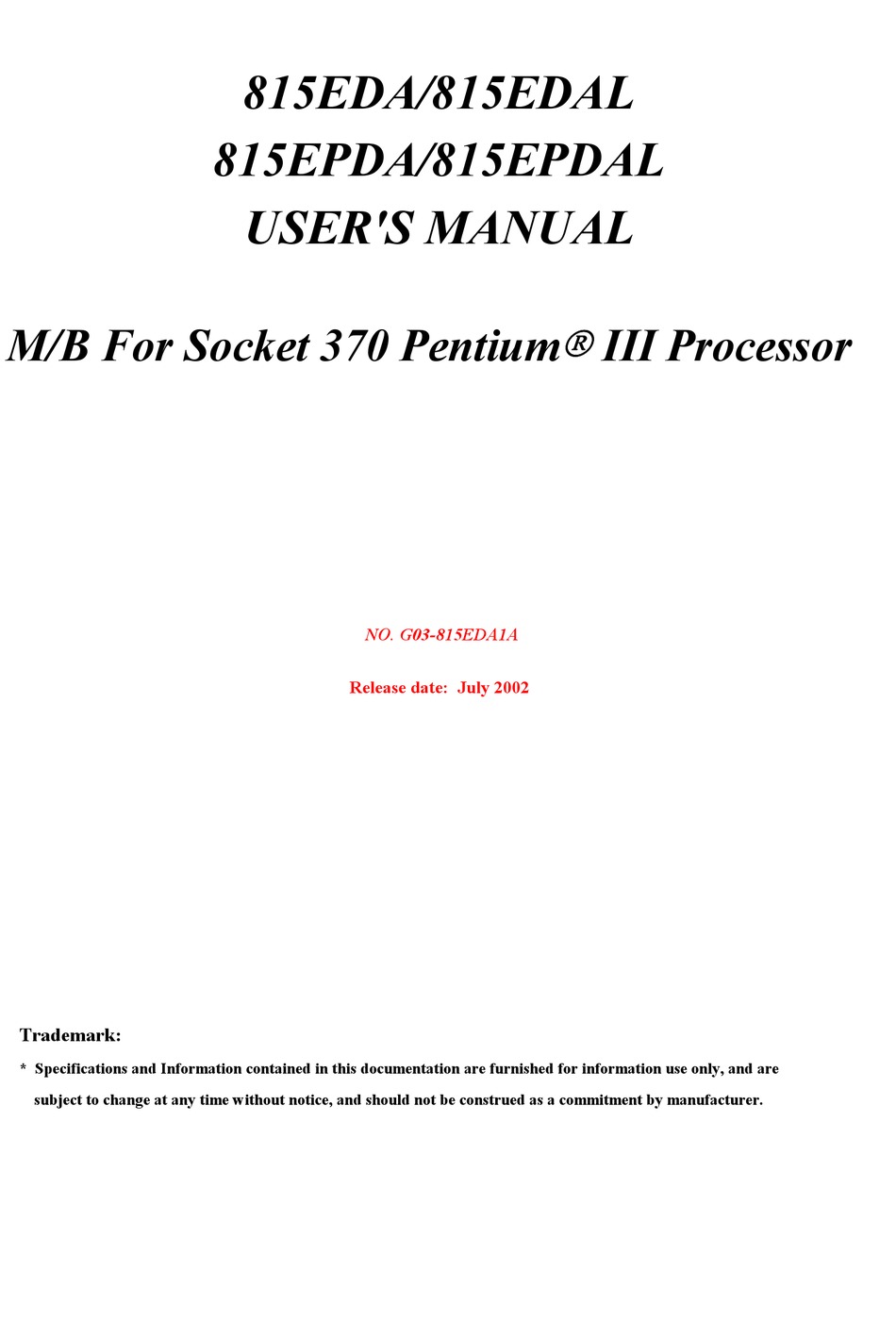

815EDA/815EDAL
815EPDA/815EPDAL
USER'S MANUAL
M/B For Socket 370 Pentium
III Processor
NO. G03-815EDA1A
Release date: July 2002
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 815EDA1A and is the answer not in the manual?

Questions and answers

Related Manuals for JETWAY 815EDA1A

Summary of Contents for JETWAY 815EDA1A

  • Page 1 USER'S MANUAL  M/B For Socket 370 Pentium III Processor NO. G03-815EDA1A Release date: July 2002 Trademark: * Specifications and Information contained in this documentation are furnished for information use only, and are subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

  • Page 2: Table Of Contents

    TABLE OF CONTENT USER’S NOTICE...........................1 MANUAL REVISION INFORMATION..................1 THERMAL SOLUTIONS ........................1 CHAPTER 1 INTRODUCTION OF MOTHERBOARD FEATURE OF MOTHERBOARD ..................2 SPECIFICATION ........................3 PERFORMANCE LIST......................4 LAYOUT DIAGRAM & JUMPER SETTING..............5 CHAPTER 2 HARDWARE INSTALLATION HARDWARE INSTALLATION STEPS................7 CHECKING MOTHERBOARD'S JUMPER SETTING ...........7 INSTALL CPU ........................9 2-3-1 GLOSSARY ........................9 2-3-2 SETTING CPU BUS CLOCK &...

  • Page 3: User's Notice

    USER’S NOTICE COPYRIGHT OF THIS MANUAL BELONGS TO MANUFACTURER. NO PART OF THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN PERMISSION OF MANUFACTURER.

  • Page 4: Feature Of Motherboard

    Chapter 1 Introduction of 815EDA/815EDAL/815EPDA/815EPDAL Motherboard 1-1 Feature of motherboard The motherboard is design for use Intel’s new generation Pentium III /Tualatin processors, which utilize the Socket 370 design and the memory size expandable to 512MB. This motherboard use the newest Intel chipset, whose 133MHz front side bus & 133MHz memory interface delivers a clear upgrade path to the future generation of 133MHz processors and PC-133 SDRAM.

  • Page 5: Performance List

    Spec Description ∗ ATX form factor 4 layers PCB size: 30.5x17.0cm Design ∗ Intel 815E B-Step Graphic Memory Controller Hub Chipset (GMCH) Chipset for 815EDA/815EDAL ∗ Intel 815EP B-Step Memory Controller Hub (MCH) Chipset for 815EPDA/815EPDAL ∗ Intel 82801BA I/O Controller Hub (ICH) chipset ...

  • Page 6: Layout Diagram & Jumper Setting

    The following performance data list is the testing result of some popular benchmark testing programs. These data are just referred by users, and there is no responsibility for different testing data values gotten by users (the different Hardware & Software configuration will result in different benchmark testing results.) ...
  • Page 7 (for 815EDAL/815EPDAL) PRINT GAME/MIDI PORT PS/2 Mouse PS/2 Keyboard LINE-IN COM1 LINE-OUT (Only for 815EDA/815EDAL) K/B Power ON Jumper (JK1) 370 CPU Socket PS2 KB/Mouse Port FAN1 USB Port /LAN Connector (for 815EDAL/ 815EPDAL) DIMM Socket X2 CPU F.S.B. Clock Select Jumper (JS1, JS2, JS3, JS4) PC99 Back Panel ATX Power Connector...

  • Page 8: Chapter 2 Hardware Installation

    JS3, JS4 CPU & SDRAM Frequency Setting 3-pin Block JS1, JS2 2-pin Block Keyboard Power ON Function Setting 3-pin Block JBAT CMOS RAM Clear 3-pin Block Connectors Connector Name Description Page ATXPWR ATX Power Connector 20-pin Block p.15 PS/2 Mouse & PS/2 Keyboard 6-pin Female p.15 (PS2 KB/MS)

  • Page 9: Hardware Installation Steps

    2-1 Hardware installation Steps Before using your computer, you had better complete the following steps: 1. Check motherboard setting 2. Install CPU 3. Install Memory 4. Install Expansion cards 5. Connect Ribbon cables, Panel wires, and power supply 6. Setup BIOS 7.

  • Page 10: Glossary

    this feature requires an ATX power supply that can supply at least 300mA on the +5VSB lead. The default is set on disable. 1-2 closed : Disabled (default) 2-3 closed : Enabled Keyboard Power On Function (3) CMOS RAM Clear (3-pin) : JBAT A battery must be used to retain the motherboard configuration in CMOS RAM short 1-2 pins of JBAT to store the CMOS data.
  • Page 11 Chipset (core logic) - two or more integrated circuits which control the interfaces between the system processor, RAM, I/O devises, and adapter cards. Processor socket - the socket used to mount the system processor on the motherboard. Slot (AGP, PCI, ISA, RAM) - the slots used to mount adapter cards and system RAM. AGP - Accelerated Graphics Port - a high speed interface for video cards;...

  • Page 12: Setting Cpu Bus Clock & Memory Clock Jumper

    On the surface of the CPU as shown on the right picture, under the word of “Celeron” the code is: 566/128/66/1.5V 566 : CPU internal frequency, where here is 566MHz 128 : the size of L2 cache, where here is 128K : front side bus frequency, where here is 66MHz 1.5V : the voltage for the CPU 2-3-2 Setting CPU Bus Clock &...

  • Page 13: Overclock Running

     Intel  Pentium Colden Arrow CPU ZIF Socket 370 When you put the CPU into the ZIF socket. No forces require to insert of the CPU, then press the level to locate position slightly without any extra force. 2-3-4 Over clock Running WARNING! This section is for experienced motherboard installer only.

  • Page 14: Install Memory

    The Design of this motherboard follows chipset and CPU vender’s design WARNING! guideline. Any attempts to push beyond product specification are not recommended and you are taking your own risk to damage your system or important data. Before over clocking, you must make sure your components are able to tolerate such abnormal setting, especially CPU, memory, hard disks, and VGA cards.

  • Page 15: Expansion Cards

    WARNING! For the SDRAM CLOCK is set at 133MHz, use only PC133-compliant DIMMs. When this motherboard operate at 133Mhz, most system will not even boot if non-compliant modules are used because of the strict timing issues, if your DIMM are not PC133-compliant, set the SDRAM clock to 100MHz to ensure system stability.

  • Page 16: Agp Slot

    Interrupt request are shared as shown the table below: INT A INT B INT C INT D INT E INT F INT G INT H √ Slot 1 √ Slot 2 √ Slot 3 √ Slot 4 √ Slot 5 Onboard VGA √...
  • Page 17 Power Connector (20-pin block) : ATXPWR ATX Power Supply connector. This is a new defined 20-pin connector that usually comes with ATX case. The ATX Power Supply allows to use soft power on momentary switch that connect from the front panel switch to 2-pins Power On jumper pole on the motherboard.
  • Page 18 PS/2 Mouse PRINT GAME/MIDI PORT PS/2 COM1 LINE-IN Keyboard LINE-OUT Floppy drive Connector (34-pin block): FDC This connector supports the provided floppy drive ribbon cable. After connecting the single plug end to motherboard, connect the two plugs at other end to the floppy drives. Pin 1 Floppy Drive Connector (10) Primary IDE Connector (40-pin block): IDE1...

  • Page 19: Headers

    • Two hard disks can be connected to each connector. The first HDD is referred to as the “Master” and the second HDD is referred to as the “Slave”. • For performance issues, we strongly suggest you don’t install a CD-ROM or DVD-ROM drive on the same IDE channel as a hard disk.
  • Page 20 Power switch: PWR BTN This 2-pin connector connects to the case-mounted power switch to power ON/OFF the system. SPEAK Pin 1 Pin 1 System Case Connections Wake On-LAN Headers (3-pin) : WOL This connector connects to a LAN card with a WAKE ON-LAN output. This connector power up the system when a wake up signal is received through the LAN card.
  • Page 21 (10) IR infrared module Headers (5-pin) : IR This connector supports the optional wireless transmitting and receiving infrared module. You must configure the setting through the BIOS setup to use the IR function. Pin 1 IR infrared module Headers (11) CD Audio-In Headers (4-pin) : CDIN CDIN is the connector for CD-Audio Input signal.

  • Page 22: Starting Up Your Computer

    2-7 Starting Up Your Computer 1. After all connections are made, close your computer case cover. 2. Be sure all the switch are off, and check that the power supply input voltage is set to proper position, usually in-put voltage is 220V∼240V or 110V∼120V depending on your country’s voltage used.

  • Page 23: Chapter 3 Introducing Bios

    Chapter 3 Introducing BIOS The BIOS is a program located on a Flash Memory on the motherboard. This program is a bridge between motherboard and operating system. When you start the computer, the BIOS program gain control. The BIOS first operates an auto-diagnostic test called POST (power on self test) for all the necessary hardware, it detects the entire hardware device and configures the parameters of the hardware synchronization.

  • Page 24: The Main Menu

    3-3 The Main Menu Once you enter Award  BIOS CMOS Setup Utility, the Main Menu (Figure 3-1) will appear on the screen. The Main Menu allows you to select from fourteen setup functions and two exit choices. Use arrow keys to select among the items and press <Enter> to accept or enter the sub-menu.

  • Page 25: Standard Cmos Features

    Load Standard Defaults Use this menu to load the BIOS default values for the minimal/stable performance system operation. Set Supervisor/User Password Use this menu to set User and Supervisor Passwords. Save & Exit Setup Save CMOS value changes to CMOS and exit setup. Exit Without Saving Abandon all CMOS value changes and exit setup.

  • Page 26: Advanced Bios Features

    Secondary Master/Secondary Slave Press PgUp/<+>or PgDn/<–>to select Manual, None, Auto type. Note that the specifications of your drive must match with the drive table. The hard disk will not work properly if you enter improper information for this category. If your hard disk drive type is not matched or listed, you can use Manual to define your own drive type manually.
  • Page 27 Allows you to choose the VIRUS Warning feature for IDE Hard Disk boot sector protection. If this function is enabled and someone attempt to write data into this area, BIOS will show a warning message on screen and alarm beep. Disabled (default) No warning message to appear when anything attempts to access the boot sector or hard disk partition table.

  • Page 28: Advanced Chipset Features

    Typematic Delay (Msec) Sets the delay time after the key is held down before is begins to repeat the keystroke. The settings are 250, 500, 750, and 1000. Security Option This category allows you to limit access to the system and Setup, or just to Setup. System The system will not boot and access to Setup will be denied if the correct password is not entered at the prompt.

  • Page 29: Sdram Timing Setting

    You can reserve this area of system memory for ISA adapter ROM. When this area is reserved, it cannot be cached. The user information of peripherals that need to use this area of system memory usually discusses their memory requirements. The settings are: Enabled and Disabled. CPU Latency Timer During Enabled, A deferrable CPU cycle will only be Deferred after it has been in a Snoop Stall for 31 clocks and another ADS# has arrived.

  • Page 30: Integrated Peripherals

    SDRAM RAS-to-CAS Delay This field let’s you insert a timing delay between the CAS and RAS strobe signals, used when DRAM is written to, read from, or refreshed. Fast gives faster performance; and Slow gives more stable performance. This field applies only when synchronous DRAM is installed in the system. The settings are: 2 and 3.

  • Page 31: On-Chip Ide Function

    3-7-1 On-Chip IDE Function CMOS Setup Utility – Copyright(C) 1984-2002 Award Software On-Chip IDE Function On-Chip Primary PCI IDE Enabled Item Help On-Chip Secondary PCI IDE Enabled IDE Primary Master Auto IDE Primary Slave Auto Menu Level >> IDE Secondary Master PIO Auto IDE Secondary Slave Auto...

  • Page 32: On-Chip Device Function

    Onboard FDC Controller Select Enabled if your system has a floppy disk controller (FDD) installed on the system board and you wish to use it. If you install add-on FDC or the system has no floppy drive, select Disabled in this field.

  • Page 33: Power Management Setup

    Select Enabled if your system contains a Universal Serial Bus (USB) controller and you have a USB peripherals. The settings are: Enabled, Disabled. USB Keyboard Support Select Enabled if your system contains a Universal Serial Bus (USB) controller and you have a USB keyboard.
  • Page 34 Min Saving Minimum power management. Suspend Mode=1 hr., and HDD Power Down=15 min. Maximum power management. Suspend Mode=1 min., and HDD Power Max Saving Down=1 min. User Define(default) Allows you to set each mode individually. When not disabled, each of the ranges is from 1 min.

  • Page 35: Pnp/Pci Configuration Setup

    operating system, before this function will work. PM Timer Reload Events Pm Timer Reload events are I/O events whose occurrence can prevent the system from entering a power saving mode or can awaken the system from such a mode. In effect, the system remains alert for anything which occurs to a device which is configured as Enabled, even when the system is in a power down mode.

  • Page 36: Pc Health Status

    When resources are controlled manually, assign each system interrupt a type, depending on the type of device using the interrupt. DMA Resources This sub menu can let you control the DMA resource. PCI/VGA Palette Snoop Leave this field at Disabled. The settings are Enabled, Disabled. 3-10 PC Health Status This section shows the Status of you CPU, Fan, Warning for overall system status.

  • Page 37: Load Standard/Optimized Defaults

    This section is for setting CPU Miscellaneous Control. CMOS Setup Utility – Copyright(C) 1984-2002 Award Software Miscellaneous Control Cyrix III Clock Ratio Default Item Help Auto Detect DIMM/PCI Clk Enabled Spread Spectrum Disabled ** Current Host Clock is 133 Mhz ** Menu Level >...

  • Page 38: Chapter 4 Driver & Free Program Installation

    Supervisor password: Can enter and change the options of the setup menus. User password: Can only enter but do not have the right to change the options of the setup menus. When you select this function, the following message will appear at the center of the screen to assist you in creating a password.

  • Page 39: Magic Install Supports Windows 95/98/98Se/Nt4.0/2000

    Check your package and there is A MAGIC INSTALL CD included. This CD consists of all DRIVERS you need and some free application programs and utility programs. In addition, this CD also include an auto detect software which can tell you which hardware is installed, and which DRIVERS needed so that your system can function properly.

  • Page 40: Ide Install Intel Ultra Ata Storage Driver

    CONTROL PANEL/SYSTEM/DEVICE MANAGER). You have to install INF driver as shown below: 1. Click INF in the MAGIC INSTALL MENU 2. Click NEXT when Chipset Software Install Utility appears 3. This chart shows motherboards supported 4. Select if you want computer re-started by the driver click NEXT click Finish NOTE: MAGIC INSTALL will auto detect file path X:\INTEL815\INF\INFINST.EXE...

  • Page 41: Vga Install On-Board Vga Driver

    1. Click IDE when MAGIC INSTALL MENU 2. Click NEXT when INTEL Ultra ATA Storage appears Wizard appears 3. This is to announce the Copy Right click 4. Click NEXT or BROWSE to change the path NEXT you want the driver stored 5.

  • Page 42: Editing/Playback

    1. Click VGA when MAGIC INSTALL MENU Click NEXT when INTEL 81X Family appears Chipset Graphics Driver Software appears 3. Click NEXT, this is to announce Copy Right 4. Select if you want to re-start computer and click Finish NOTE: The path of the file for WIN95 is X:\INTEL815\VGA\WIN95\SETUP.EXE for WIN98 and WIN98SE is X:\INTEL815\VGA\WIN9X\SETUP.EXE...

  • Page 43: Lan Install Via Vt6105 Rhine Iii Lan Controller Driver

    3. Click Finish and Restart Computer 4. Avance Audio Rack table can play CD, WAV, MID, MP3, AVI, MPG format file 5. Sound Effect select and KaraOK Mode 6. Manual Sound Effect Setting Function NOTE: MAGIC INSTALL will auto detect file path: X:\CODEC\ALC\SETUP.EXE (for WINDOWS 95/98/98SE/ME/NT4.0/2000) 4-5 LAN INSTALL VIA VT6105 Rhine III LAN Controller Driver...

  • Page 44: Pc-Health Winbond Hardware Doctor Monitoring Software

    Driver install Finish , Click Yes and Restart When windows ask VIA VT6105 Rhine III Computer Fast Ethernet source disk, Change path to X:\VIA6105 and click OK, then finish installation 4-6 PC-HEALTH Winbond Hardware Doctor Monitoring Software The path of the file is X:\INTEL815\HW30\SETUP.EXE (Only support WINDOWS 98SE/ME) In Windows 98 Winbond Hardware Doctor Monitoring Software needs some system files to copy in Utility that’s why it needs install PC-HEALTH twice to complete setup.

  • Page 45: Magic Bios Install Bios Live Update Utility

    4-6-1 How To Utilize PC-HEALTH 1. Click Program → Winbond Hardware Doctor 2. After executing Winbond Hardware Doctor it → Hardware Doctor the Winbond Hardware supports system voltage, Fan speed and Doctor will appears CPU/SYSTEM Temperature. Because this is You can remove the Utility in Control Panel a On-time Monitoring program therefore the →...
  • Page 46 After finish Setup you will have a Magic Double click the Magic BIOS icon you will BIOS icon in your screen have this picture, choose from internet you can upgrade BIOS On-line When On-line update BIOS the program Click Next if you need update BIOS, after will auto-check your BIOS version upgrade BIOS, the system will clear CMOS and automatically restart...

  • Page 47: Pc-Cillin Install Pc-Cillin 2002 Anti-Virus Program

    4-8 PC-CILLIN Install PC-CILLIN 2002 Anti-virus program 1. Click PC-CILLIN when MAGIC INSTALL 2. (1) Click "Install PC-CILLIN" when PC- MENU appear CILLIN 2002 main menu appears, and Click NEXT when "Install Shield Wizard For PC- CILLIN 2002" (2) Click Open Manual. you can learn PC- CILLIN 2002 how to use 3.

  • Page 48: How To Disable On-Board Sound

    7. After PC-CILLIN 2002 complete, Please 8. finish register process, we recommend select register your information and get LICENSE update item ro download newest engine code KEY from TREND MICRO web site, enter and virus code your license key and click FINISH Note : Please install ACROBAT READER, Before you read PC-CILLIN 2002 User Manual, the path at X:\acrobat\ar500eng.exe...
