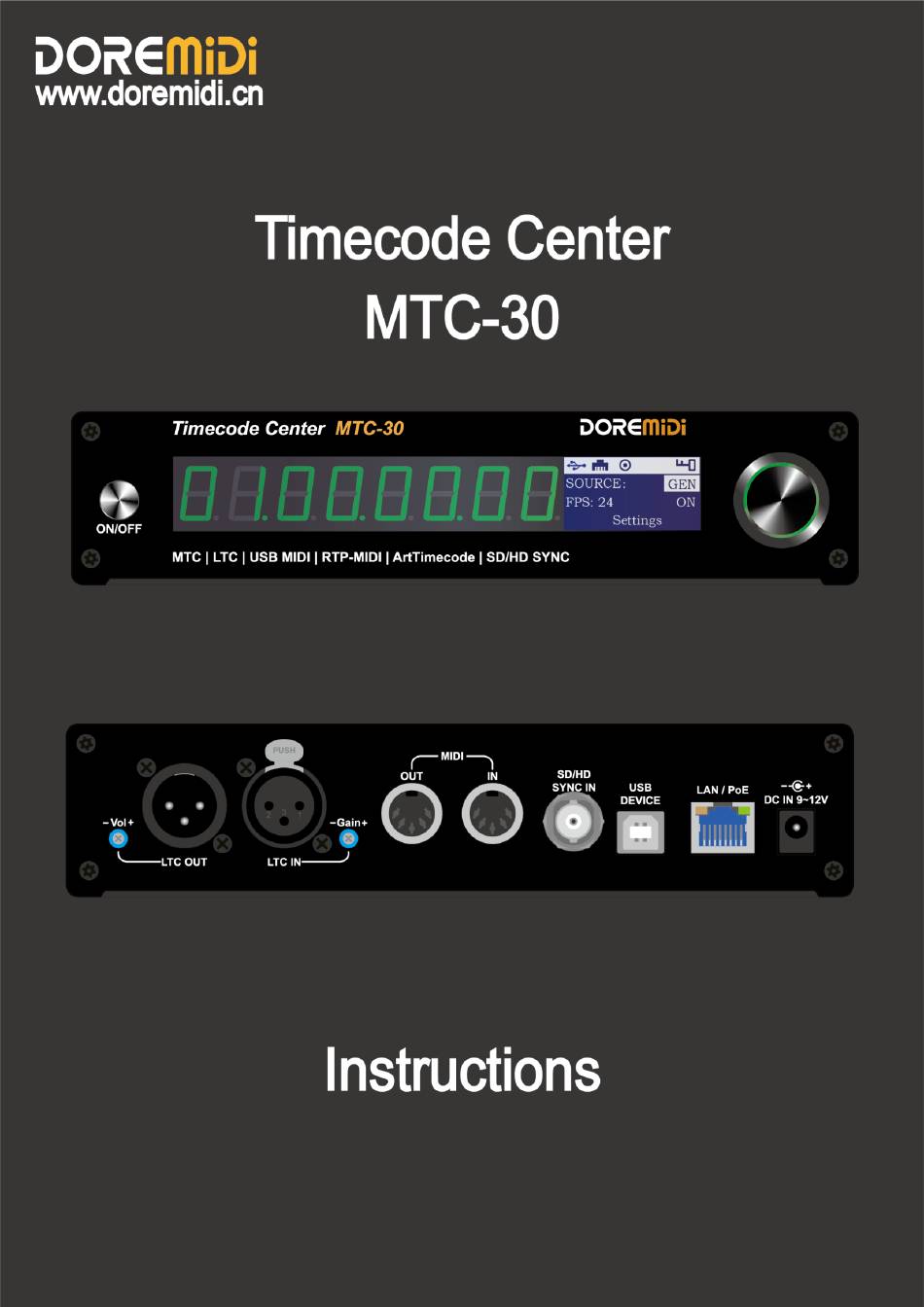

- Page 2 The Timecode Center (MTC-30) is a multifunctional time code product designed by DOREMiDi. MTC-30 has RTP-MIDI network time code, Art-Net time code, SMPTE LTC, MIDI time code, USB time code, SD/HD video frame synchronization, and can be used for time code synchronization between computers, MIDI devices, DMX devices, and LTC devices.
- Page 3 Standard Art-Net communication protocol, only used to communicate Art-Net time Art-Net code (Art time code). MTC-30 supports being a listener and can be connected by an initiator (such as a RTP MIDI computer). It supports up to 5 initiators to connect at the same time.
- Page 4 4.2. Time code source settings MTC-30 supports 6 time code sources, including "USB / MIDI / LTC / GEN / ART-NET / RTP-MIDI". Click "SOURCE" and rotate the knob to select a different time code source. The following is a description of the 6 time code input sources:...
- Page 5 USB MIDI time code output MIDI time code output MIDI MIDI IN input time code MTC-30 LTC Output Art-Net output time code RTP-MIDI output time code Time code input from LTC IN, USB / MIDI OUT / LTC OUT /...
- Page 6 MTC-30 generates time code, and USB / MIDI OUT / LTC OUT / ART-NET / RTP-MIDI outputs time code. Click the knob to set the following parameters: Hours, minutes, seconds can be set; Time frame format can be set: 24, 25, 30DF, 30 are supported.
- Page 7 6.3. Connect MIDI devices: Use a standard 5-pin MIDI cable to connect the MIDI OUT of MTC-30 to the IN of the MIDI device, and the MIDI IN of MTC-30 to the OUT of the MIDI device. 6.4. Connect the LTC device: Use a standard 3-core XLR cable to connect the LTC OUT of the MTC-10 to the LTC IN of the LTC device, and connect the LTC IN of the MTC-10 to the LTC OUT of the LTC device.
- Page 8 (Stop, Play, Goto), and the MMC Tool can be used to remotely control the generation of time code. Connect the "USB DEVICE" of MTC-30 to the computer and open the MMC Tool of DOREMiDi. The software can be downloaded from the DOREMiDi official website: www.doremidi.cn...
- Page 9 Stop: Stop the time code playback. After stopping, if you click "Play" again, it will return to the "Start" time code and play again. d. Capture: Get the time code. Click "Capture" to get the time code currently running on the product.
- Page 10 Answer: Please make sure that the format of LTC time code is one of 24, 25, 30DF, 30 frames; if it is other types, time code errors or frame loss may occur. Question: Can MTC-30 generate time code? Answer: Yes, please select "GEN" as the time code input source.
