Summary of Contents for DOREMIDI MTC-20

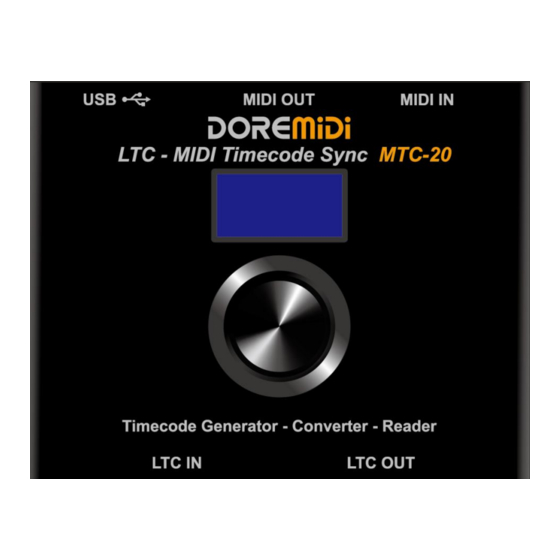

- Page 2 MTC-20 has standard USB MIDI interface, MIDI DIN interface and LTC interface, which can be used for time code synchronization between computers, MIDI device and LTC device. At the same time, MTC-20 has a display screen that can display the current time code information.
- Page 3 "USB/MIDI/LTC" according to the time code input port. When the MTC-20 is used as a time code generator, please select "GEN". The following are descriptions of the 4 timecode input sources:...
- Page 4 SOURCE: LTC 00:00:00:00 LTC IN FPS:30DF LTC OUT Timecode is generated by MTC-20, MIDI OUT, USB and LTC OUT output timecode. Hours, minutes and seconds can be set; Time frame format can be set: support 24, 25, 30DF, 30...
- Page 5 5. Firmware upgrade operation Press and hold the knob to power the product, then release the knob, the product will enter the upgrade mode, please use the official firmware upgrade tool to upgrade the product. (If there is a firmware update, please pay attention to the official website notification) Upgrade...
- Page 6 Answer: Please make sure that the format of the LTC time code is one of 24, 25, 30DF, and 30 frames; if it is of other types, time code errors or frame loss may occur. Question: Can MTC-20 generate time code? Answer: Yes, please select "GEN" as the timecode input source.
