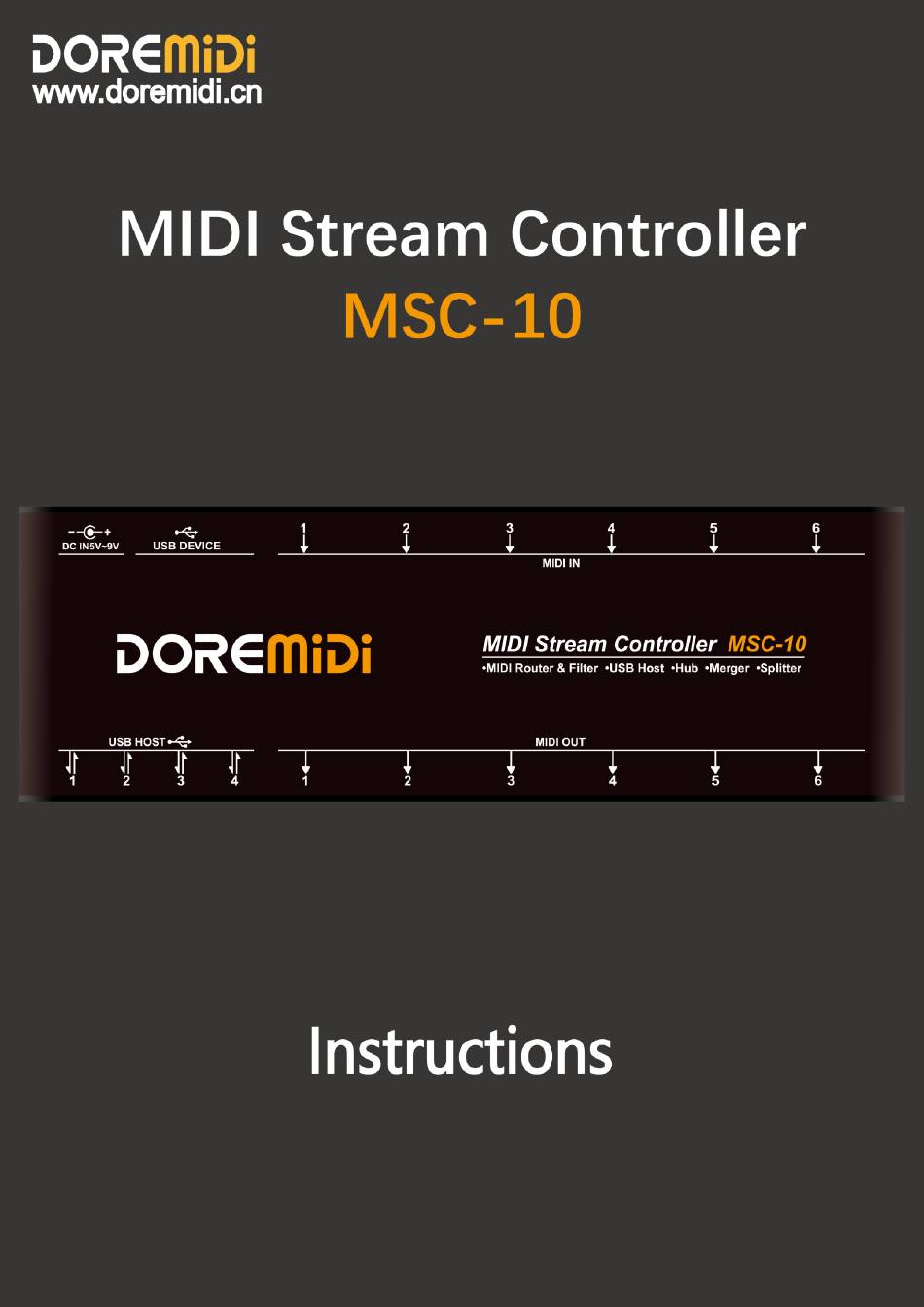

- Page 2 The Stream Controller (MSC-10) is a multifunctional MIDI data stream control system. The MSC-10 has a rich set of MIDI interfaces, such as 4 x USB host ports, USB device ports, 6 MIDI inputs and 6 MIDI outputs. The MSC-10 supports routing and filtering of the USB host port and MIDI DIN port, and can work independently from the computer after setting.
- Page 3 MIDI merging means merging multiple MIDI inputs into one MIDI output port. MIDI Merge Quantity Each MIDI output port of MSC-10 supports up to 6 MIDI input ports at the same time. When MSC-10 works on multiple MIDI inputs and merges them into one MIDI output, MIDI messages will be queued and output according to the first-in-first-out principle.
- Page 4 For details, see "5. Setting the routing and filtering of the MIDI port". In addition, after MSC-10 is connected to the computer, it can be used as a MIDI hub. MSC-10 has 10 input ports and 10 MIDI output ports. Users can select the MIDI port to be used in the MIDI software. The mapping of...
- Page 5 5.1. Set up MIDI routing ❶ Select the DOREMiDi device and click “Connect”. ❷ Select “MIDI Port Routing”. ❸ Select and hold the right mouse button on the MIDI IN port in the Input Ports to connect it to the MIDI OUT port in the Output Ports. After setting, the messages from the MIDI IN port will be routed to the MIDI OUT port.
- Page 6 For example, set MIDI split as shown in the figure: For example, multiple MIDI channels can be merged and separated, as shown in the figure: ❹ Set, after setting the MIDI routing, you need to click "Set" to complete the MIDI routing setting. ❺...
- Page 7 MIDI data loop. ③ For the USB DEVICE port, MSC-10 will maintain the MIDI HUB function, that is, the MIDI messages of MIDI IN x 6 will be input to USB DEVICE (MIDI IN→USB DEVICE), and the messages of USB DEVICE can be output to MIDI OUT x 6 (USB DEVICE→MIDI OUT), USB HOST x 4 will communicate with USB DEVICE.
- Page 8 4) Question: USB HOST port does not work. Answer: Please follow the steps below: Make sure that the MSC-10 is powered normally. If you use the USB HOST port to power the USB device, please make sure that the DC IN power can meet the working requirements of the USB device.
- Page 9 If the problem is not resolved, please contact customer service. Manufacturer: Shenzhen Huashi Technology Co., Ltd. Address: Room 910, 9th Floor, Jiayu Building, Songgang Street, Baoan District, Shenzhen, Guangdong, China Post Code: 518104 Customer Service Email: info@doremidi.cn...
