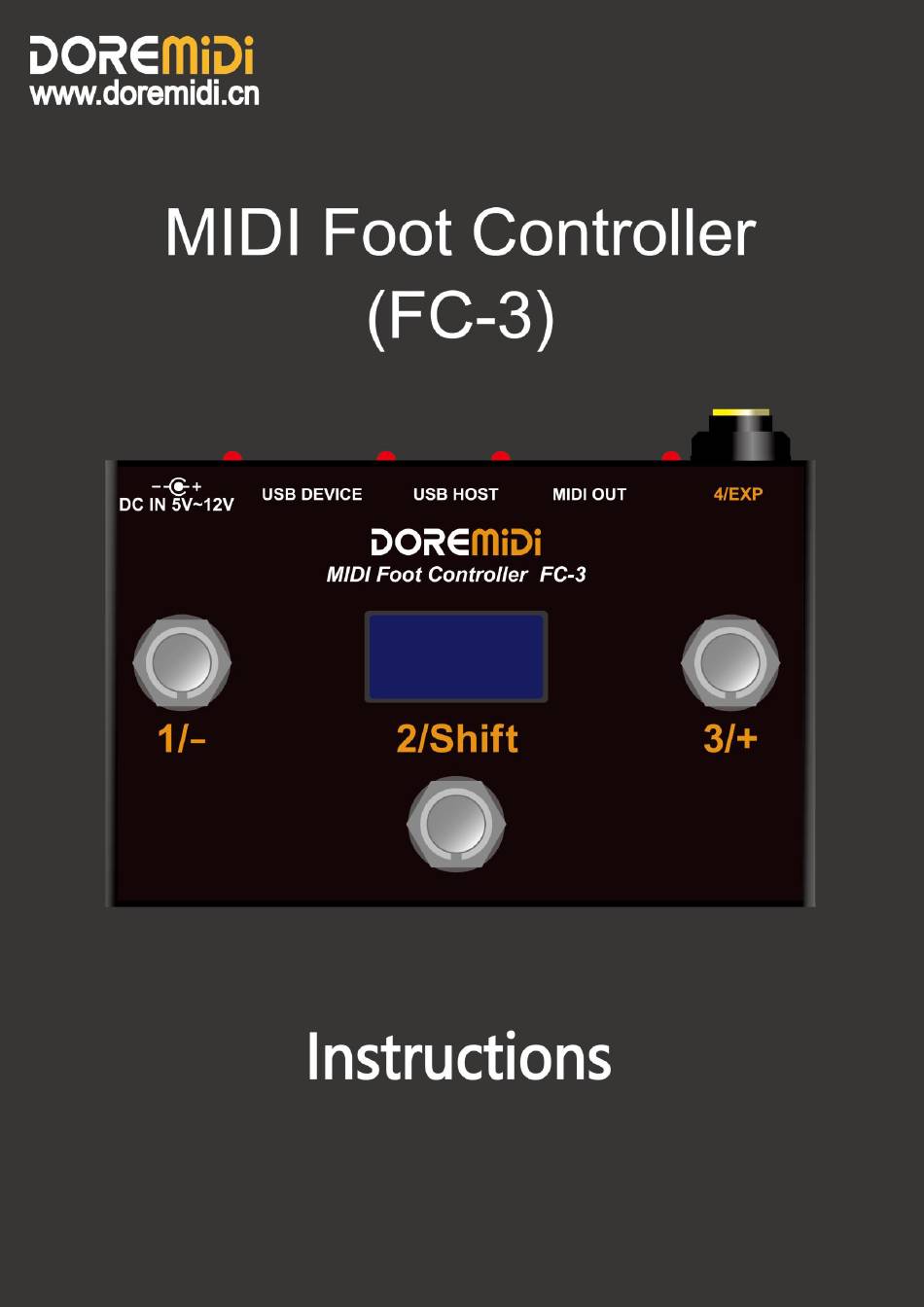

DOREMIDI FC-3 Instructions Manual
  1. Manuals
  2. Brands
  3. DOREMIDI Manuals
  4. Recording Equipment
  5. FC-3
  6. Instructions manual

DOREMIDI FC-3 Instructions Manual

Midi foot controller
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FC-3 and is the answer not in the manual?

Questions and answers

Related Manuals for DOREMIDI FC-3

Summary of Contents for DOREMIDI FC-3

  • Page 2 MIDI Foot Controller (FC-3) is a MIDI controller designed by DOREMiDi that can be used for foot control. FC-3 has a variety of MIDI output interfaces, which can be connected to computers, USB MIDI instruments, and MIDI DIN devices. FC-3 has 3 programmable switch pedals and 1 expression pedal interface, all pedals can be customized with MIDI messages, and each pedal can be configured with 16 groups of MIDI.
  • Page 3 5) Output MIDI messages: By pressing the footswitch/expression pedal, the configured MIDI messages can be output. The FC-3 can be configured with up to 16 sets of independent MIDI messages. Hold down "Shift" and click "-"/"+" to switch to select different MIDI message numbers.
  • Page 4 (CC/NOTE/PBend/CPress) of the expression pedal, and display the value after the pedal is pressed.  MIDI message serial number: FC-3 can be configured with 1~16 independent MIDI message groups. Hold down "Shift" and click "-"/"+" to switch to select different MIDI message sequence numbers.
  • Page 5 Pedal Number: The number of the current pedal, 1~3 is the switch pedal, 4 is the expression pedal. Message Number: FC-3 can be configured with 1~16 independent MIDI message groups, each group can be configured with 3 switch pedals and 1 expression pedal.
  • Page 6 Each time the pedal is pressed and released, the value will decrease in the DATA1/DATA2 Decrease Range. Set: After Set the parameters, click "Set" to set the FC-3. m. Save File: Save the current pedal configuration content. Open File: Load the configuration content of the pedal.
  • Page 7 DATA1 Range of pedal 1. 6. Types of Expression Pedal Supported The FC-3 supports 6.35mm TRS plug, which can be connected to a positive-polarity or a reverse-polarity expression pedal. The pedal plug is shown in the picture: 7.
  • Page 8 1) Question: Incorrect pedal type detected on configuration software. Answer: Please make sure that the pedal has been connected to the FC-3 normally; if it is an expression pedal, please try to place the pedal in the middle range, and then click "CHECK"...
