2801191
Rev 06-28-05
User Manual
2002-2005 Honda VTX1800
Part Number DFCM-1
Congratulations on your purchase of this Dynatek product.
Please take a moment to read these instructions completely before
installing the FI controller. The installation will only take a few minutes,
but proper setup for your specific bike will take longer

Parts List

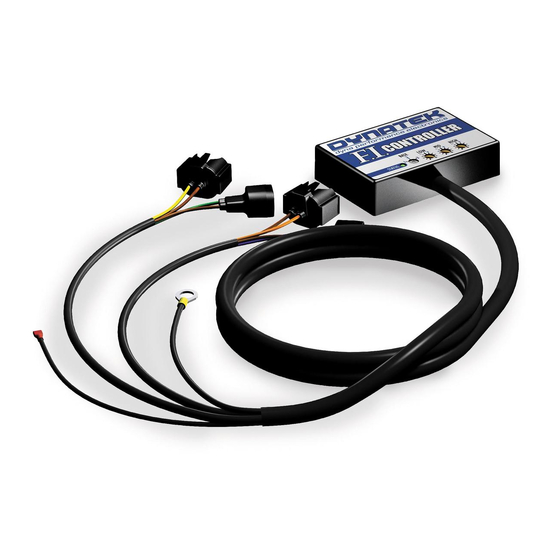

FI Controller
Wire tap
Wire ties
Velcro
Strip
®
Alcohol Swab
Part# DFCM-1
1
www.dynaonline.com
Dynatek • 164 S. Valencia St. Glendora CA 91741
800.928.3962

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DFCM-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DYNATEK DFCM-1

  • Page 1 FI controller. The installation will only take a few minutes, but proper setup for your specific bike will take longer Parts List FI Controller Installation Guide Wire tap Wire ties Velcro Strip ® Alcohol Swab Part# DFCM-1 www.dynaonline.com Dynatek • 164 S. Valencia St. Glendora CA 91741 800.928.3962...
  • Page 2 Connect the FIC ground to the battery ground. STEP 2 Reinstall the battery cover, and reinstall the ECU. Using the supplied velcro, mount the FIC. STEP 3 Route the wiring harness from the FIC under the tank and through the frame. Part# DFCM-1...
  • Page 3 Plug the other side of this harness into the stock injector. Repeat this step for the rear cylinder and the other FIC injector harness. STEP 6 The Throttle Position Sensor(TPS) is located on the front side of the throttle bodies, behind the airbox. Unplug this connector. Part# DFCM-1...
  • Page 4 Using the supplied wire tap, tap into that wire. Make sure that the tap is on the wire securely. Connect the grey wire from the FIC harness to this connector. Reinstall the seat and airbox assembly. Part# DFCM-1...
  • Page 5 To add fuel, turn the potentiometer clockwise. To subtract fuel, turn the potentiometer counterclockwise. With the potentiometer pointed straight up at the thick tick mark (towards the Dynatek logo), that is 0% adjustment. Fully counterclockwise is -20%, and fully clockwise is +20%. Adjusting the potentiometer...
