2801187
REV. 6-30-05
User Manual
1999-2001 Harley-Davidson
Twin Cam 88 Touring Models
Part Number DFCH-2
Congratulations on your purchase of this Dynatek product.
Please take a moment to read these instructions completely before
installing the FI controller. The installation will only take a few minutes,
but proper setup for your specific bike will take longer

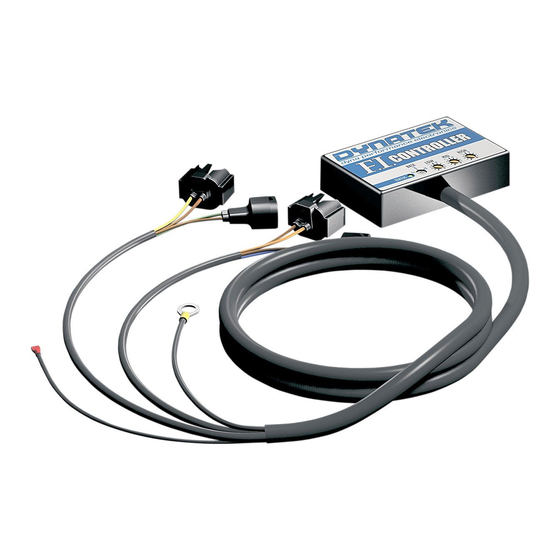

Parts List
FI Controller
Installation Guide
Wire tap
Wire ties
Velcro
Strip
®
Alcohol Swab
www.dynaonline.com
Dynatek • 164 S. Valencia St. Glendora CA 91741
800.928.3962
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DYNATEK DFCH-2
Summary of Contents for DYNATEK DFCH-2
- Page 1 FI controller. The installation will only take a few minutes, but proper setup for your specific bike will take longer Parts List FI Controller Installation Guide Wire tap Wire ties Velcro Strip ® Alcohol Swab www.dynaonline.com Dynatek • 164 S. Valencia St. Glendora CA 91741 800.928.3962...
- Page 2 Repeat this using the other connector pair and the rear cylinder injector. STEP 3 Locate the TPS connector behind the throttle body. TPS Connector Part# DFCH-2...
- Page 3 Connect the ground lug (black wire) to a grounding point on the bike. Use the Velcro tape to mount the FI Controller in position. Use alcohol swab to clean mounting surface prior to attaching Velcro. Reinstall fuel tank and seat. Part# DFCH-2...
- Page 4 To add fuel, turn the potentiometer clockwise. To subtract fuel, turn the potentiometer counterclockwise. With the potentiometer pointed straight up at the thick tick mark (towards the Dynatek logo), that is 0% adjustment. Fully counterclockwise is -20%, and fully clockwise is +20%. Adjusting the potentiometer...
