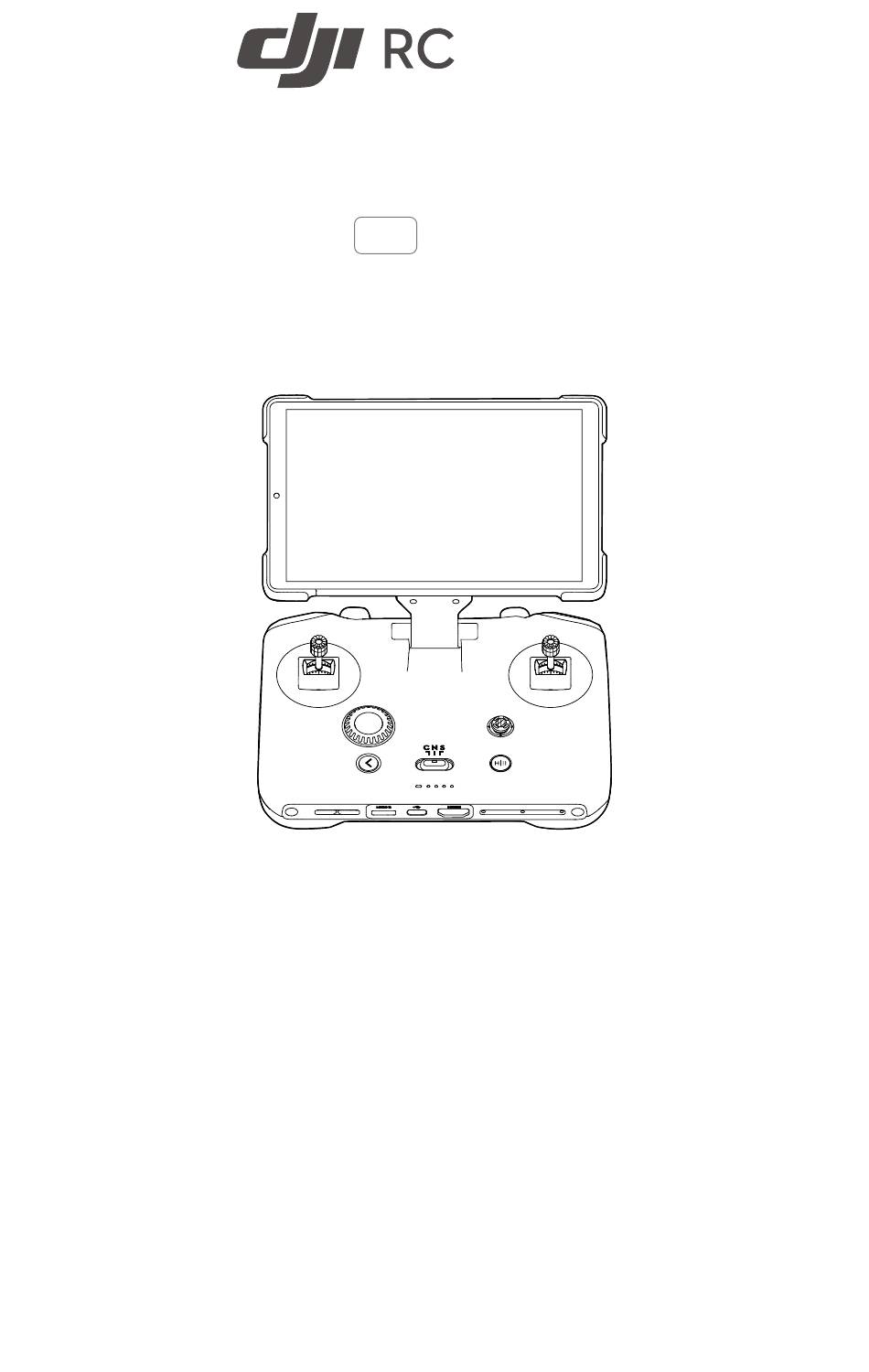

- Page 1 PRO 2 User Manual v1.0 2025.05...
- Page 2 This document is copyrighted by DJI with all rights reserved. Unless otherwise authorized by DJI, you are not eligible to use or allow others to use the document or any part of the document by reproducing, transferring or selling the document. Only refer to this document and the content thereof as instructions to operate DJI products.
- Page 3 DJI RC Pro 2 User Manual Using this Manual Legend Reference Important Hints and Tips Read Before Use ™ provides you with tutorial videos and the following documents: 1. Safety Guidelines 2. Quick Start Guide 3. User Manual It is recommended to watch all the tutorial videos and read the Safety Guidelines before using for the first time.
- Page 4 DJI RC Pro 2 User Manual Contents Using this Manual Legend Read Before Use Video Tutorials Preparing the Remote Controller Powering On/Off Activating the Remote Controller Linking the Remote Controller Charging the Battery Overview Using the Remote Controller Remote Controller Operation...
- Page 5 DJI RC Pro 2 User Manual Preparing the Remote Controller 1.1 Powering On/Off Unfold the antennas downward. Extend the arm to power on. Press the power button once to check the current battery level. Press, then press and hold to power the remote controller on or off.
- Page 6 DJI RC Pro 2 User Manual 1.2 Activating the Remote Controller The remote controller needs to be activated before using for the first time. Make sure the remote controller can connect to the internet during activation. Follow the steps below to activate the remote controller.
- Page 7 DJI RC Pro 2 User Manual • Fully charge the remote controller before each flight. The remote controller sounds an alert when the battery level is low. • Fully charge the battery at least once every three months to maintain the battery's health.
- Page 8 DJI RC Pro 2 User Manual Overview 1. Touchscreen 15. Antennas 2. Control Sticks 16. Gimbal Dial 3. Dial 17. Record Button 4. Back Button 18. Power Button 5. Flight Mode Switch 19. Focus/Shutter Button 6. Speaker 20. Camera Settings Dial 7.
- Page 9 DJI RC Pro 2 User Manual Using the Remote Controller 3.1 Remote Controller Operation DJI Simulator Before your first flight, practice flying using the DJI Simulator for flight safety. To access DJI Simulator, click on the Home page of DJI Fly. Controlling the Aircraft The control sticks of the remote controller can be used to control the aircraft movements.
- Page 10 DJI RC Pro 2 User Manual Mode 3 Controlling the Gimbal and Camera 1. Gimbal Dial: Control the tilt of the gimbal. 2. Record Button: Press once to start or stop recording. 3. Camera Control Dial: Use to adjust the zoom by default. The dial function can be set to adjust the focal length, EV, shutter speed, and ISO.
- Page 11 Home Point. Press the button again to cancel RTH and regain control of the aircraft. Customizable Buttons To view and set the button function, go to camera view in DJI Fly, and tap > Control > Button Customization.
- Page 12 DJI RC Pro 2 User Manual Dial When the camera is set to AUTO mode, rotate the dial to adjust the EV value. When the camera is set to PRO mode, press the dial to switch camera settings, and rotate to adjust parameters.
- Page 13 DJI RC Pro 2 User Manual Screen Gestures Back: Slide from the left or right to the Return to DJI Fly : Slide up from the center of the screen to return to the bottom of the screen to return to DJI previous screen.
- Page 14 DJI RC Pro 2 User Manual 3.5 Remote Controller LEDs Remote Controller LEDs 1. Status LED 2. Battery Level LEDs Status LED Blinking Pattern Descriptions Solid red Disconnected from the aircraft. Blinking red The battery level of the aircraft is low.
- Page 15 Audio recording can only be enabled or disabled before recording. • When viewing or downloading the videos in the Album view in DJI Fly, the audio recorded using the audio recording function will be automatically merged into the video file.
- Page 16 Otherwise, the remote controller will experience interference. • A prompt will be displayed in DJI Fly if the transmission signal is weak during flight. Adjust the remote controller orientation according to the attitude indicator display to make sure that the aircraft is in the optimal transmission range.
- Page 17 Visit the following website to get the information on compatible products. https://www.dji.com/rc-pro-2/faq 4.3 Firmware Update Use DJI Fly or DJI Assistant 2 (Consumer Drones Series) to update the aircraft and the remote controller firmware. Using DJI Fly When the aircraft is connected to the remote controller, run DJI Fly, and you will be notified if a new firmware update is available.
- Page 18 DJI RC Pro 2 User Manual • Make sure the computer is connected to the internet during the update. • DO NOT unplug the USB-C cable during an update. • The firmware update will take approximately 10 minutes. During the update process, it is normal for the gimbal to go limp, the aircraft status indicators to blink, and the aircraft to reboot.
- Page 19 This content is subject to change without notice. Download the latest version from https://www.dji.com/rc-pro-2/downloads If you have any questions about this document, please contact DJI by sending a message to DocSupport@dji.com. DJI is a trademark of DJI. Copyright © 2025 DJI All Rights Reserved.
