Weight Limit: Bed: 500 Lb / 227 Kg
Drawer: 40 Lb / 18 Kg
KT. - 2019/5/22
© 2014 Dorel Home Products All Rights Reserved

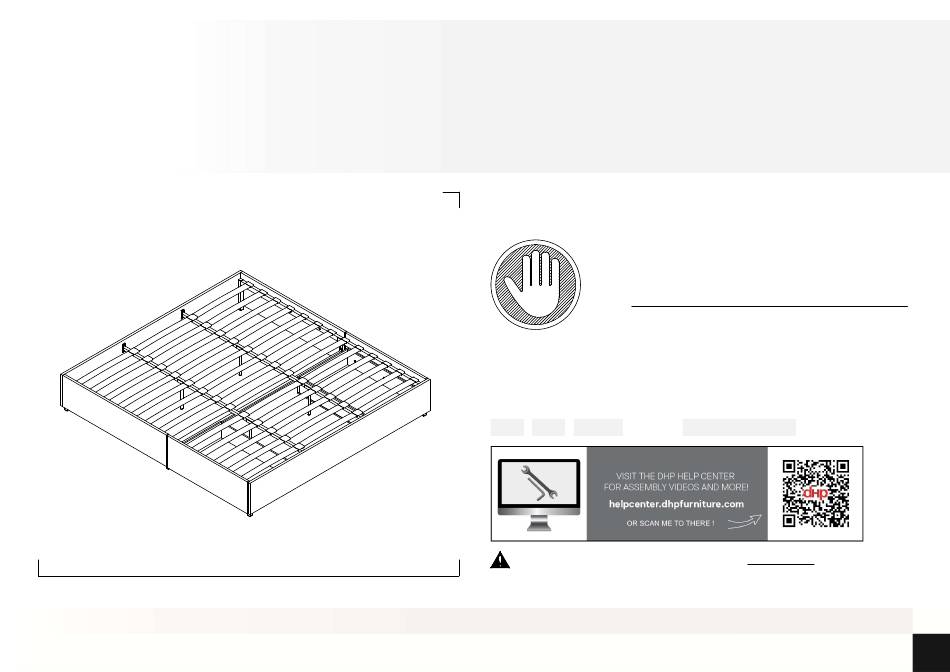

Platform bed with storage drawers
Thank you for purchasing from DHP!
DO NOT RETURN TO THE STORE !
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/replacement-parts
or call Toll-Free 1-800-267-1739
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
4414049
Black Faux Leather
Lot Number
B34441404900
King
1
Advertisement
Related Manuals for Dorel Home Products 4414049
Summary of Contents for Dorel Home Products 4414049
- Page 1 Visit www.dhpfurniture.com/eng/replacement-parts or call Toll-Free 1-800-267-1739 Date of Purchase Lot Number THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. KT. - 2019/5/22 B34441404900 © 2014 Dorel Home Products All Rights Reserved...
- Page 2 Warranty Information Read Before Beginning Assembly DHP warrants this product to be free from defects in material and workmanship and ● Call our toll free number if you need assistance. agrees to remedy any such defect. This warranty covers one year from the date of ●...
- Page 3 Parts Replacement Parts, visit www.dhpfurniture.com/eng/replacement-parts This item is packed in 2 boxes! All parts listed on this page are in Box A. If Box B is missing please contact your Retailer. There are inner box(es) that include components required to complete this assembly. Drawer Back Panel Drawer Side Panel Drawer Front Panel...
- Page 4 Parts Replacement Parts, visit www.dhpfurniture.com/eng/replacement-parts This item is packed in 2 boxes! All parts listed on this page are in Box B. If Box A is missing please contact your Retailer. There are inner box(es) that include components required to complete this assembly. Headboard Side Panel Side Panel...
- Page 5 Hardware Pack Hardware Pack #: T4414049-00 1/4" X 1/2" 1/4" X 3/4" 1/4" X 3/4" X 28 1/4" X 1 3/16" 1/4" X 1 9/16" X 16 8# X 1/2" 1/4'' X 16 4# X 1 3/16" X 40 Please do not completely tighten all the hardware, until the entire assembly is complete, unless otherwise indicated in the step-by-step instructions.
- Page 6 Step 1 ❶ ❷ Attach I X 2 to E X 2 with To make sure the completion of the next installation, please assemble the parts as shown in the diagram!
- Page 7 Step 2 ❷ Attach G to I X 2 with...
- Page 8 Step 3 ❺ Attach D X 2 to E X 2 with...
- Page 9 Step 4 ❷ Attach H X 2 to B with...
- Page 10 Step 5 ❺ Attach A and B to E X 2 with Don't completely tighten the bolts until STEP 7 is complete. Holes are located on top side! Part H is located on lower side!
- Page 11 Step 6 ❷ Attach M X 2 to F with Repeat the same procedure for remaining parts M X 2 and F.
- Page 12 Step 7 ❷ Attach F X 2 to A and B with Then properly tighten all the bolts.
- Page 13 Step 8 8.1 Insert P1 into X; 8.2 Press X into E, repeat the same procedure for the opposite side of the bed with a new P1 and X into E. Follow the same procedures going backwards for every row of slats. SLAT WARNING Correct: Slat curve should be facing upwards .
- Page 14 Step 9 9.1 Insert Y x 2 onto the free end of both P1 assembled in previous step, Take a new P1 and insert each end into the other free end of Y x 2; 9.2 Press Y x 2 SIMULTANEOUSLY into F x 2 as illustrated.
- Page 15 Step 10 ❼ Attach N X 2 to S & L with Repeat the same procedure for remaining N x 2 and S, L. Make sure that these holes are all located on the top side before assembling! X 16...
- Page 16 Step 11 ❼ Attach K to S , L & N with Repeat the same procedure to complete the other subassembly. Make sure that these holes are all located on the top side before assembling! X 24...
- Page 17 Step 12 ❻ Attach Q X 4 to K with Repeat the same procedure to complete the other subassembly. X 16...
- Page 18 Step 13 ❸ ❽ Attach to C, ❹ ❽ Attach S to C with Repeat the same procedure to complete the other subassembly.
- Page 19 Step 14 Align Drawers with the bed frame and push them into the bed. Slot Lock drawers by slightly lifting drawer and inserting the Pin into the Slot. Slot...
- Page 20 Helpful Hints Helpful Hints Weight Limit: Bed: 500 Lb / 227 Kg Drawer: 40 Lb / 18 Kg ● Move your new furniture carefully, with two people lifting and carrying the unit to its new location. ● Your DHP furniture can be disassembled and reassembled to move.
- Page 21 4414049 NO LO REGRESE A LA TIENDA ! Si le faltan piezas o las que se incluyen están dañadas, con Cama plataforma con Almacenamiento mucho gusto le enviaremos sus piezas de reemplazo sin cargo extra. King Visite www.dhpfurniture.com/spa/replacement-parts Imitación de cueron negro...
- Page 22 Partes Instrucciones Paso 1 Piezas de reemplazo, visite www.dhpfurniture.com/spa/replacement-parts ❶ ❷ Una I X 2 con E X 2 con los . Para asegurarse de que se complete la próxima instalación, ensamble las piezas como se muestra en el diagrama. Este artículo se embala en 2 cajas! Paso 2 Las piezas nombradas abajo están en la Caja A.
- Page 23 Límites de peso: Bed: 500 Lb / 227 Kg Drawer: 40 Lb / 18 Kg Consejos útiles ● Mueva sus muebles nuevos con cuidado, con dos personas levantando y llevando el aparato a su nueva ubicación. ● Sus muebles DHP se pueden desmontar y volver a ensamblar en caso de mudanza.
- Page 24 4414049 NE RETOURNEZ PAS AU MAGASIN ! Lit plateforme avec rangement Si une pièce est manquante ou endommagée, nous vous expédierons avec plaisir vos pièces de remplacement gratuitement. Très grand lit deux places Visitez www.dhpfurniture.com/fre/replacement-parts Faux cuir noir ou appelez au 1-800-267-1739...
- Page 25 Pièces Instructions Étape 1 Pièces de rechange, visitez www.dhpfurniture/fre/replacement-parts ❶ ❷ Attacher I X 2 à E X 2 avec . Pour vous assurer que la prochaine installation est terminée, assemblez les pièces comme indiqué sur le schéma. Cet article est emballé dans 2 boîtes! Étape 2 Les pièces listées suivant sont dans la Boîte A.
- Page 26 Limite de Poids: Bed: 500 Lb / 227 Kg Drawer: 40 Lb / 18 Kg Conseils utiles ● Déplacez votre nouveau mobilier avec soin, nous recommandons deux personnes pour soulever et transporter le mobilier vers son nouvel emplacement. ● Votre mobilier DHP peut être démonté et reassemblé pour faciliter les déménagements.
