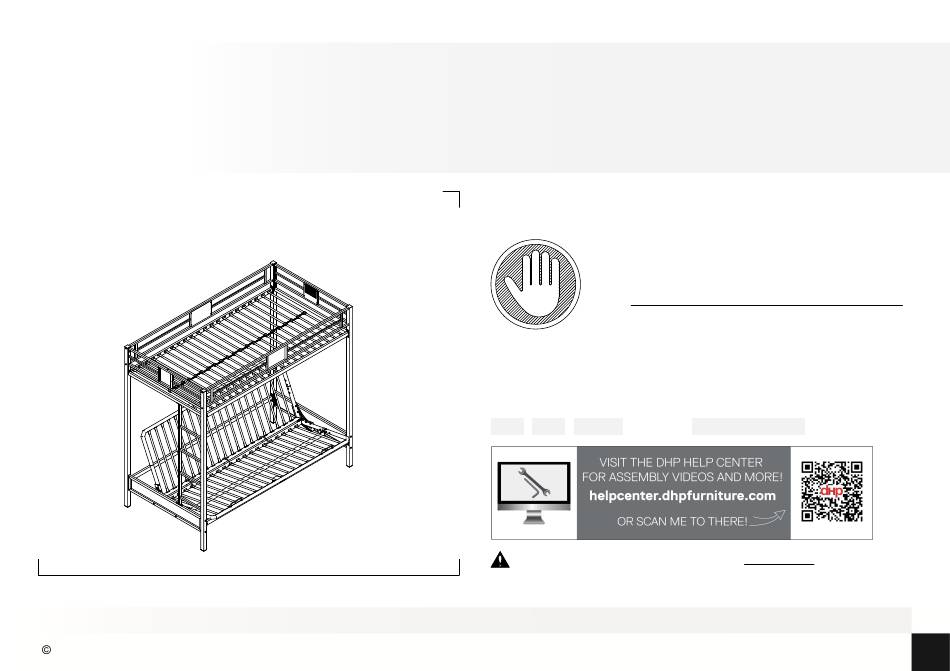

Silver Screen Metal Bunk Bed
Thank you for purchasing from DHP!
DO NOT RETURN TO THE STORE !
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/replacement-parts
or call Toll-Free 1-800-267-1739
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Twin
Lot Number
B34403991903-KT
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 4039919 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dorel Home Products 4039919

Summary of Contents for Dorel Home Products 4039919

  • Page 1 Visit www.dhpfurniture.com/eng/replacement-parts or call Toll-Free 1-800-267-1739 Date of Purchase Lot Number THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. J.Z. - 2021/3/17 B34403991903-KT 2014 Dorel Home Products All Rights Reserved...

  • Page 2: Warranty Information

    Warranty Information Read Before Beginning Assembly DHP warrants this product to be free from defects in material and workmanship Call our toll free number if you need assistance. and agrees to remedy any such defect. This warranty covers one year from the Work in a spacious area and near where the unit will be used, preferably on a date of original purchase.
  • Page 3 Parts Replacement Parts, visit www.dhpfurniture.com/eng/replacement-parts All in 1 big box! There are inner box(es) that include components required to complete this assembly. Before you throw the package, please use the Post Post Post Right Lower Guard Rail Left Lower Guard Rail Check Box to identify the parts and ensure that you have all the parts needed for the assembly.
  • Page 4 Parts Replacement Parts, visit www.dhpfurniture.com/eng/replacement-parts All in 1 big box! There are inner box(es) that include components required to complete this assembly. Before you throw the package, please use the Lower Bed Frame Lower Bed Frame Lower Bed Frame Check Box to identify the parts and ensure that you have all the parts needed for the assembly.
  • Page 5 Parts Replacement Parts, visit www.dhpfurniture.com/eng/replacement-parts All in 1 big box! There are inner box(es) that include components required to complete this assembly. Before you throw the package, please use the Slat Spacer Plastic Plug Slat Spacer Check Box to identify the parts and ensure that X 124 X 22 X 21...
  • Page 6 IMPORTANT: Below part numbers list is unique to your product. Parts Please keep it on hand when calling for replacement parts. Replacement Parts, visit www.dhpfurniture.com/eng/replacement-parts Part Number 4039919(Silver&Black) Part Label T610510 T610520 T610530 T610560 T610550 T929130 T610540 T928530 T913050 T913060...

  • Page 7: Hardware Pack

    Hardware Pack Hardware Pack #: T4039919-02 4039919(Silver&Black) 1/4" X 5/8" 1/4" X 3/4" 5/16" X 3/4" Silver Silver Silver X 24 X 16 1/4" X 1 3/16" Silver 1/4" X 1 3/8" Silver 1/4" X 2 3/16" Black 1/4" Silver #8 X 9/16"...
  • Page 8 Step 1 Attach F to A with For your safety, the warning must be located on the inside and upside of the bed.
  • Page 9 Step 2 Insert Z into A. Attach Z to F with...
  • Page 10 Step 3 3.1 Attach I2 to A with 3.2 Attach Z to I2 with...
  • Page 11 Step 4 4.1 Attach B to I2 with 4.2 Attach B to F with...
  • Page 12 Step 5 5.1 Attach M to C with 5.2 Attach I1 to C with For your safety, the warning must be located on the inside and upside of the bed. Shallow Deep groove. groove.
  • Page 13 Step 6 6.1 Attach I1 to B with 6.2 Attach M to B with...
  • Page 14 Step 7 Attach E x 2 to A/B and B/C with Metal sheet on Part E should be towards inside of bed.
  • Page 15 Step 8 Wide side of the slot should be facing up and inside! Attach J X 2, H and F1 to A/B and B/C with The pin on F1 must be located on the inside of the bed. X 16...
  • Page 16 Step 9 9.1 Insert O into J x 2 as illustrated. 9.2 Lock O into place with Y.
  • Page 17 Step 10 10.1 Press W onto the middle of O as illustrated. 10.2 Press Q onto W alternating left and right as illustrated. 10.2 10.1...
  • Page 18 Step 11 For your safety, please ensure L and R are mounted on corresponding location as Attach R to I1 and L to I2 with specified in drawing.
  • Page 19 Step 12 12.1 Insert S x 2 into V and secure with 12.2 Insert one N onto S x 2 and secure with 12.2 12.1 Wide side of the slot should be facing up and inside! BACK FRAME...
  • Page 20 Step 13 13.1 Insert S x 2 into the other N, secure with as illustrated, then attach X to N and S x 2 with 13.2 Insert E1 onto S x 2 and secure with 13.2 13.1 Wide side of the slot should be facing up and inside! SEAT FRAME...
  • Page 21 Step 14 14.1 Insert K into V/N and N/E1 as illustrated. 14.2 Lock K into place with Y. 14.1 14.2...
  • Page 22 Step 15 In order to perfectly align the locking mechanism on part E1 with the pin on Attach N x 2 to L and R with part F1, please do not completely tighten the bolts 2 for the SEAT FRAME until Step 17 is completed.
  • Page 23 Step 16 Attach T x 2 to E1 with...
  • Page 24 Step 17 Change from bed to futon position and lock the mechanism on part E1 with the pin on part F1 as shown. Tighten all bolts now.
  • Page 25 Step 18 Attach U x 3 to N x 2 in the locations as indicated. Cautions: For your safety, please make sure HOOK U x 3 are assembled and secured properly.
  • Page 26 Step 19 To use lower bed. For your safety, please ensure that the futon, while in the seated position, is locked as illustrated. To convert from seated to sleeper, unlock the mechanism by pulling on the two levers simultaneously as illstrated.

  • Page 27: Helpful Hints

    Weight Limit: 200 Lb / 90 Kg for upper bed 600 Lb / 272 Kg for lower bed Move your new furniture carefully, with two people lifting and carrying the unit to its new 4039919 (Silver & Black): T392730 location. Your furniture can be disassembled and reassembled to move.
  • Page 28 WARNINGS for Bunk Bed Follow the information on the warnings appearing on the upper bunk end structure and on the carton. Do not remove warning label from bed. Always use the recommended size mattresses or mattress supports, or both, to help prevent the likelihood of entrapment or falls. Use only a twin mattress which is 74"...
