Installation Manual
Installation Hardened FSOC CR-5020 with KF4A-HDC
Contents
1. General
2. HFSOC-A2-SC/APC-CR-5020 Configuration
3. Assembly Tools
4. KF4A-HDC(Fusion Splicer) Setting
5. Installation
1. General
This installation guide provides procedures for assembling for HFSOC-A2-SC/APC-CR-5020 to
5.0x2.0mm outdoor cable with KF4A-HDC All-In-One Fusion Splicer. A basic understanding of
fiber handling, stripping, cleaning and splicing will be helpful.

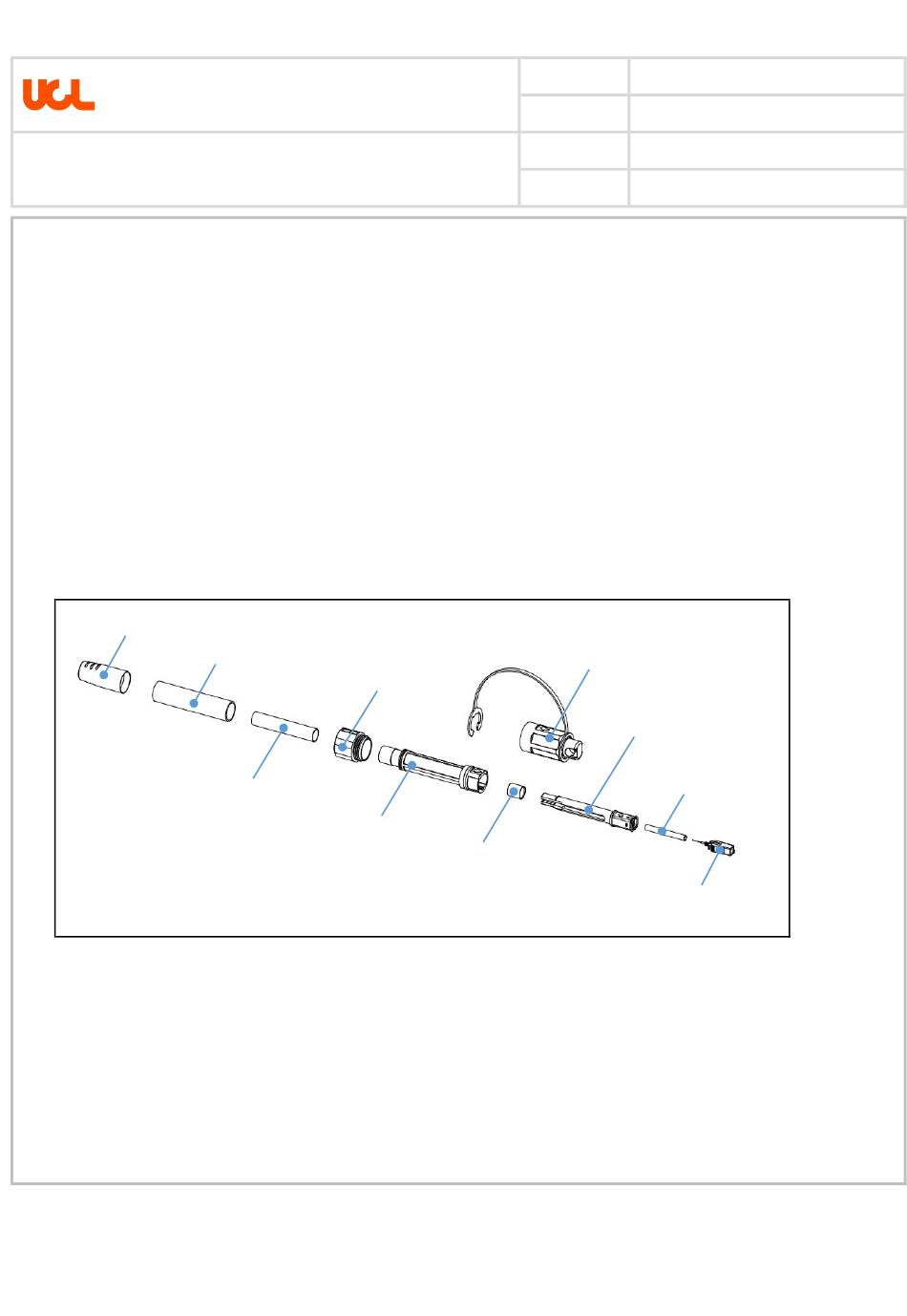

2. HFSOC- A2-SC/APC-CR-5020 Configuration
⑩ Boot
⑧ Protection
Tube(A)
Form No: UCL001 Rev.01
No
Slack, Simple & Fast in FTTH Deployment
⑨ Protection Tube(B)
⑦ Screw Cap
⑥ Housing Ass'y
Installation
Guide #
Date of
Enactment
No. of
Revision
Page
③ Cap Ass'y
⑤ Crimp Ring
IG-HFSOC-SC-CR-5020-001
2025-03-13
02
1/12
④ Frame
② Sleeve
① Ferrule Ass'y
UCLSwift Co., Ltd.
Advertisement
Related Manuals for UCL SWIFT FSOC CR-5020
Summary of Contents for UCL SWIFT FSOC CR-5020
- Page 1 Slack, Simple & Fast in FTTH Deployment Guide # Date of Installation Manual 2025-03-13 Enactment No. of Revision Installation Hardened FSOC CR-5020 with KF4A-HDC 1/12 Page Contents 1. General 2. HFSOC-A2-SC/APC-CR-5020 Configuration 3. Assembly Tools 4. KF4A-HDC(Fusion Splicer) Setting 5. Installation 1.
- Page 2 Slack, Simple & Fast in FTTH Deployment Guide # Date of Installation Manual 2025-03-13 Enactment No. of Revision Installation Hardened FSOC CR-5020 with KF4A-HDC 2/12 Page 3. Installation Tools 3.1 Tools for Cable Preparation Jacket Slitter Jacket Stripper Crimper Snipper...
- Page 3 Date of Installation Manual 2025-03-13 Enactment No. of Revision Installation Hardened FSOC CR-5020 with KF4A-HDC 3/12 Page 4.1 Splice Mode • G.657.A2 to G.657.A2 : Setting – 12. G657 A2B2 • G.652.D to G.652.D : Setting – 1. SM ITU-T G652 •...
- Page 4 Guide # Date of Installation Manual 2025-03-13 Enactment No. of Revision Installation Hardened FSOC CR-5020 with KF4A-HDC 4/12 Page 5.1.2 Measure and mark 100 mm from end of cable using a ruler. Then mark 20mm and 90mm. 110mm 20mm 90mm 5.1.3 Use a jacket slitter to separate the cable and steel wire, at 110mm and cut off the wire by...
- Page 5 Slack, Simple & Fast in FTTH Deployment Guide # Date of Installation Manual 2025-03-13 Enactment No. of Revision Installation Hardened FSOC CR-5020 with KF4A-HDC 5/12 Page 5.1.5 Insert the sleeve and place the 0.25mm fiber in the holder (5020-250) as follows. [Caution] Sleeve 5.1.6a 5.1.6b Form No: UCL001 Rev.01...
- Page 6 Date of Installation Manual 2025-03-13 Enactment No. of Revision Installation Hardened FSOC CR-5020 with KF4A-HDC 6/12 Page 5.2 Fusion Splicing (Include Stripping and Cleaving) 5.2.1 Stripping a. Turn on the power of stripper. b. Mount the fiber holder to the auto- stripper.
- Page 7 Guide # Date of Installation Manual 2025-03-13 Enactment No. of Revision Installation Hardened FSOC CR-5020 with KF4A-HDC 7/12 Page 5.2.2 Cleaving a. Clean the optical fiber using an alcohol-soaked fiber wipe. Open the cover of the cleaver and trash bin.
- Page 8 Guide # Date of Installation Manual 2025-03-13 Enactment No. of Revision Installation Hardened FSOC CR-5020 with KF4A-HDC 8/12 Page 5.2.3 Splicing a. Close the wind cover after ensuring that both holders are in place. When wind cover is closed, the splice will be executed automatically.
- Page 9 Date of Installation Manual 2025-03-13 Enactment No. of Revision Installation Hardened FSOC CR-5020 with KF4A-HDC 9/12 Page f. Open the heater cover. Locate the connector and sleeve area and place the sleeve within appropriate heating area. Close the right heater cover first, then the main heater cover.
- Page 10 Guide # Date of Installation Manual 2025-03-13 Enactment No. of Revision Installation Hardened FSOC CR-5020 with KF4A-HDC 10/12 Page 5.3.2 Crimp Ring Assembly : Insert the crimp ring and secure the frame using the crimper. (1 time). 5.3.2a 5.3.2c 5.3.2b...
- Page 11 Slack, Simple & Fast in FTTH Deployment Guide # Date of Installation Manual 2025-03-13 Enactment No. of Revision Installation Hardened FSOC CR-5020 with KF4A-HDC 11/12 Page 5.3.4 Protection Tube Assembly : Insert the protection tube(A) and protection tube(B) in the following order. 5.3.4e 5.3.4f protection tube(A) protection tube (B) 5.3.4b...
- Page 12 Guide # Date of Installation Manual 2025-03-13 Enactment No. of Revision Installation Hardened FSOC CR-5020 with KF4A-HDC 12/12 Page : Finally, place the boot to the back of the housing body and assemble the strap. 5.3.4g 5.3.4h -End of Document- Form No: UCL001 Rev.01...
