Installation Manual
Installation Hardened FSOC PSPL-5430 with KF4A-HDC
Contents
1. General
2. HFSOC-A2-SC/APC-PSPL-5430 Configuration
3. Assembly Tools
4. KF4A-HDC(Fusion Splicer) Setting
5. Installation
1. General
This installation guide provides procedures for assembling for HFSOC-A2-SC/APC-PSPL-5430 to
5.4x3.0mm outdoor cable with KF4A-HDC All-In-One Fusion Splicer. A basic understanding of
fiber handling, stripping, cleaning and splicing will be helpful.

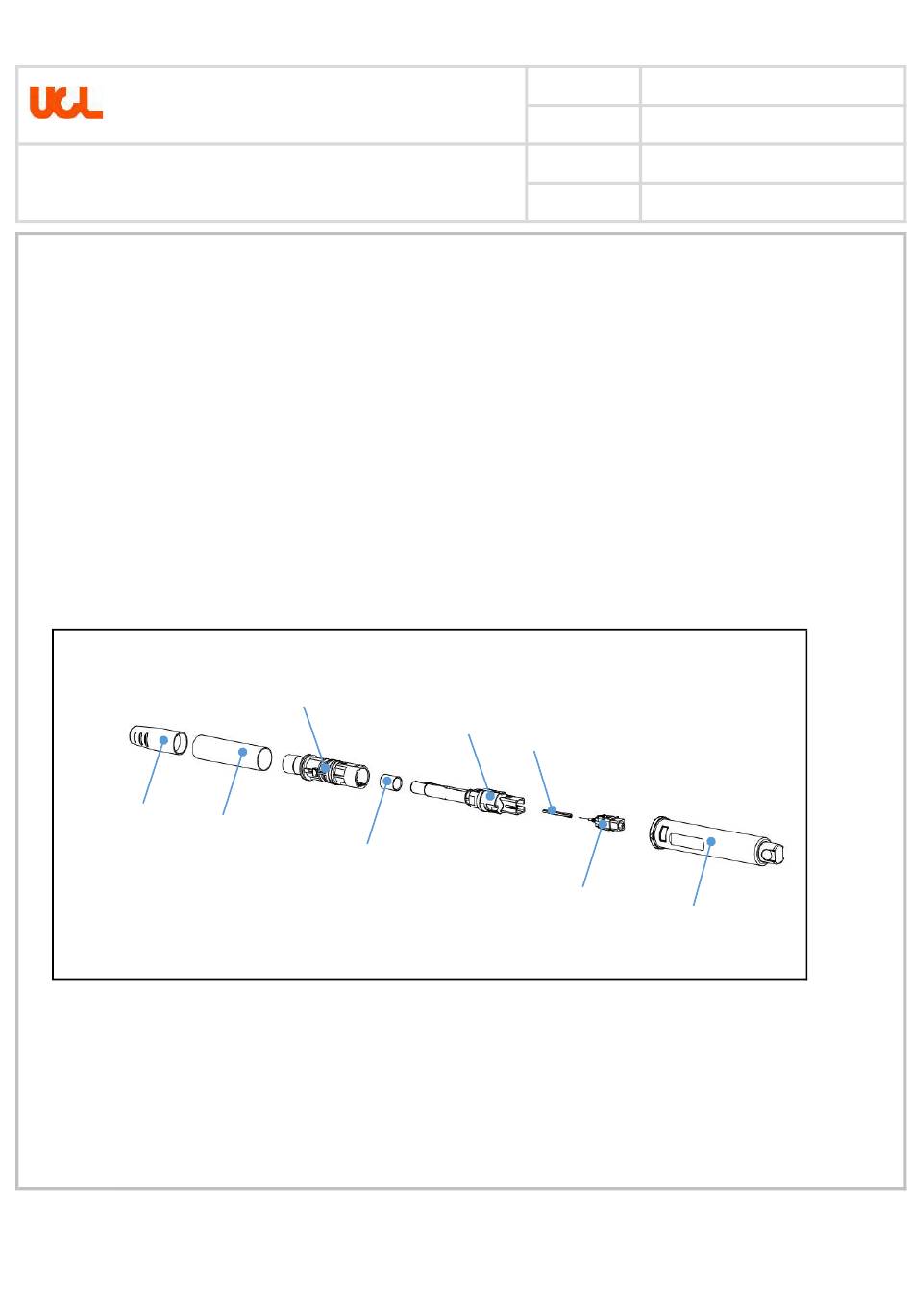

2. HFSOC- A2-SC/APC-PSPL-5430 Configuration
⑧ Boot
⑦ Protection Tube
Form No: UCL001 Rev.01
Slack, Simple & Fast in FTTH Deployment
⑤ Housing Ass'y
④ Crimp Ring
Installation
Guide #
Date of
Enactment
No. of
Revision
Page
③ Frame
② Sleeve
① Ferrule Ass'y
IG-HFSOC-SC-PSPL-5430-001
2023-09-25
01
1/12
⑥ Cover
UCLSwift Co., Ltd.
