Installation Manual
Installation Hardened FSOC CR-5000 with KF4A-HDC
Contents
1. General
2. HFSOC-A2-SC/APC-CR-5000 Configuration
3. Assembly Tools
4. KF4A-HDC(Fusion Splicer) Setting
5. Installation
1. General
This installation guide provides procedures for assembling for HFSOC-A2-SC/APC-CR-5000 to
5.0mm outdoor cable with KF4A-HDC All-In-One Fusion Splicer. A basic understanding of fiber handling,
stripping, cleaning and splicing will be helpful.

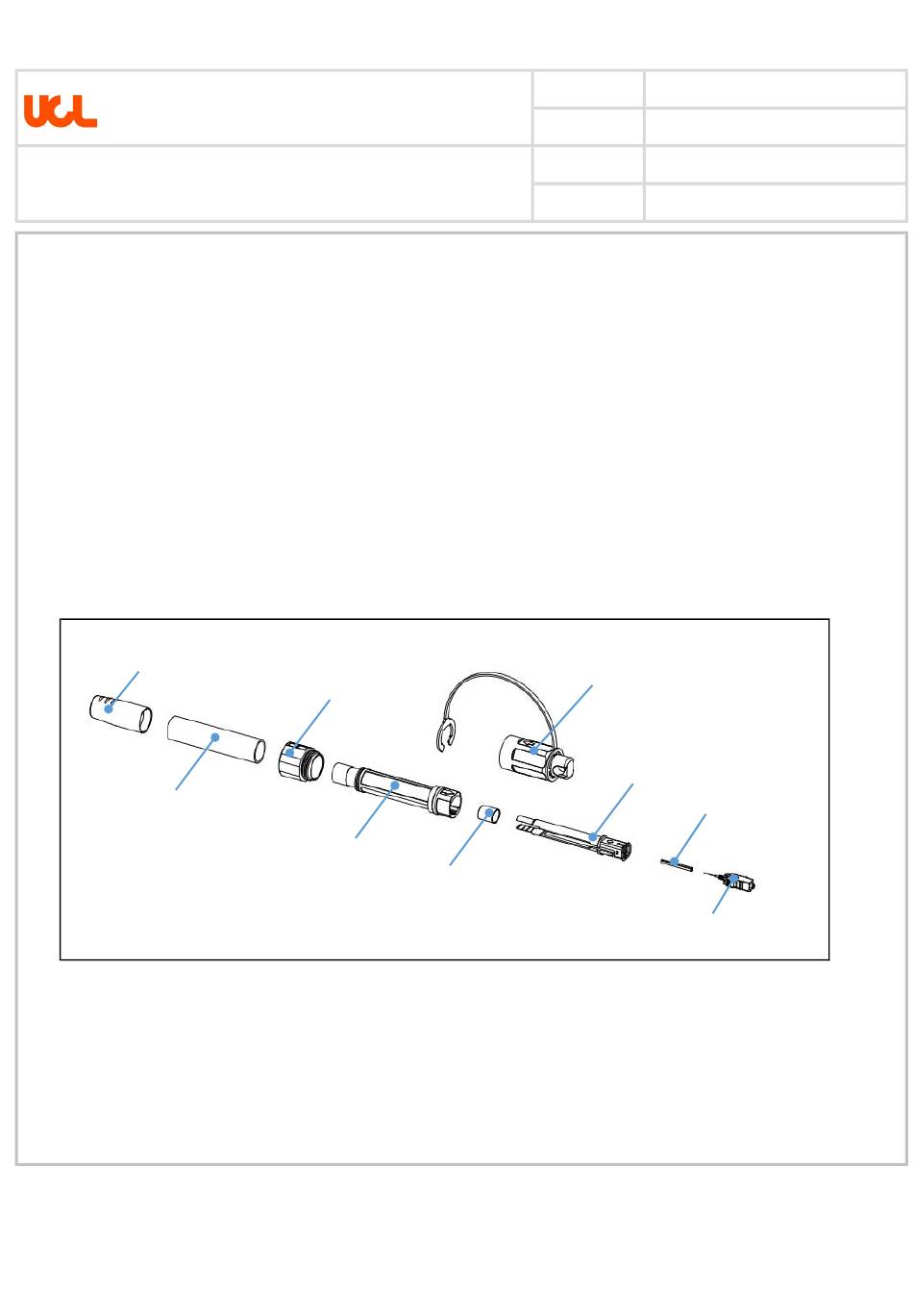

2. HFSOC- A2-SC/APC-CR-5000 Configuration
⑨ Boot
⑧ Protection Tube
Form No: UCL001 Rev.01
No
Slack, Simple & Fast in FTTH Deployment
⑦ Screw Cap
⑥ Housing Ass'y
Installation
Guide #
Date of
Enactment
Revision
③ Cap Ass'y
⑤ Crimp Ring
IG-HFSOC-SC-CR-5000-001
2025-03-13
No. of
Page
④ Frame
② Sleeve
① Ferrule Ass'y
02
1/12
UCLSwift Co., Ltd.
Advertisement
Related Manuals for UCL SWIFT FSOC CR-5000
Summary of Contents for UCL SWIFT FSOC CR-5000
- Page 1 Slack, Simple & Fast in FTTH Deployment Guide # Date of Installation Manual 2025-03-13 Enactment No. of Revision Installation Hardened FSOC CR-5000 with KF4A-HDC Page 1/12 Contents 1. General 2. HFSOC-A2-SC/APC-CR-5000 Configuration 3. Assembly Tools 4. KF4A-HDC(Fusion Splicer) Setting 5. Installation 1.
- Page 2 Slack, Simple & Fast in FTTH Deployment Guide # Date of Installation Manual 2025-03-13 Enactment No. of Revision Installation Hardened FSOC CR-5000 with KF4A-HDC Page 2/12 3. Installation Tools 3.1 Tools for Cable Preparation Jacket Stripper Fiber Stripper Crimper Kevlar Shears...
- Page 3 Date of Installation Manual 2025-03-13 Enactment No. of Revision Installation Hardened FSOC CR-5000 with KF4A-HDC Page 3/12 4.1 Splice Mode • G.657.A2 to G.657.A2 : Setting – 12. G657 A2B2 • G.652.D to G.652.D : Setting – 1. SM ITU-T G652 •...
- Page 4 Installation Manual 2025-03-13 Enactment No. of Revision Installation Hardened FSOC CR-5000 with KF4A-HDC Page 4/12 5.1.2 Place a mark on the cable jacket at 60 mm from the end. (See also in the quick manual) 60mm 5.1.3 Using the coaxial cable tool, etch and remove the jacket at the 60 mm mark, exposing the aramid yarn.
- Page 5 2025-03-13 Enactment No. of Revision Installation Hardened FSOC CR-5000 with KF4A-HDC Page 5/12 5.1.5 Using the fiber stripper tool, remove the loose tube at the 60 mm mark, exposing of the aramid yarn. Then remove the aramid yarn using the Kevlar scissors.
- Page 6 Date of Installation Manual 2025-03-13 Enactment No. of Revision Installation Hardened FSOC CR-5000 with KF4A-HDC Page 6/12 5.2 Fusion Splicing (Include Stripping and Cleaving) 5.2.1 Stripping a. Turn on the power of stripper. b. Mount the fiber holder to the auto- stripper.
- Page 7 Guide # Date of Installation Manual 2025-03-13 Enactment No. of Revision Installation Hardened FSOC CR-5000 with KF4A-HDC Page 7/12 5.2.2 Cleaving a. Clean the optical fiber using an alcohol-soaked fiber wipe. Open the cover of the cleaver and trash bin.
- Page 8 Guide # Date of Installation Manual 2025-03-13 Enactment No. of Revision Installation Hardened FSOC CR-5000 with KF4A-HDC Page 8/12 5.2.3 Splicing a. Close the wind cover after ensuring that both holders are in place. When wind cover is closed, the splice will be executed automatically.
- Page 9 Date of Installation Manual 2025-03-13 Enactment No. of Revision Installation Hardened FSOC CR-5000 with KF4A-HDC Page 9/12 f. Open the heater cover. Locate the connector and sleeve area and place the sleeve within appropriate heating area. Close the right heater cover first, then the main heater cover.
- Page 10 Guide # Date of Installation Manual 2025-03-13 Enactment No. of Revision Installation Hardened FSOC CR-5000 with KF4A-HDC Page 10/12 5.3.2 Crimp Ring Assembly : Insert the crimp ring and secure the frame using the crimper. (1 time). 5.3.2a 5.3.2b 5.3.2c...
- Page 11 Guide # Date of Installation Manual 2025-03-13 Enactment No. of Revision Installation Hardened FSOC CR-5000 with KF4A-HDC Page 11/12 5.3.4 Protection Tube Assembly : Insert the protection tube. 5.3.4a 5.3.4b : Fix the cable and housing kit using the HDC heater as follows.
- Page 12 Guide # Date of Installation Manual 2025-03-13 Enactment No. of Revision Installation Hardened FSOC CR-5000 with KF4A-HDC Page 12/12 : Finally, place the boot to the back of the housing body and assemble the strap. 5.3.4g 5.3.4h -End of Document- Form No: UCL001 Rev.01...
