Installation Manual
Installation Hardened FSOC CR-5430 with KF4A-HDC
Contents
1. General
2. HFSOC-A2-SC/APC-CR-5430 Configuration
3. Assembly Tools
4. KF4A-HDC(Fusion Splicer) Setting
5. Installation
1. General
This installation guide provides procedures for assembling for HFSOC-A2-SC/APC-CR-5430 to
5.4x3.0mm outdoor cable with KF4A-HDC All-In-One Fusion Splicer. A basic understanding of
fiber handling, stripping, cleaning and splicing will be helpful.

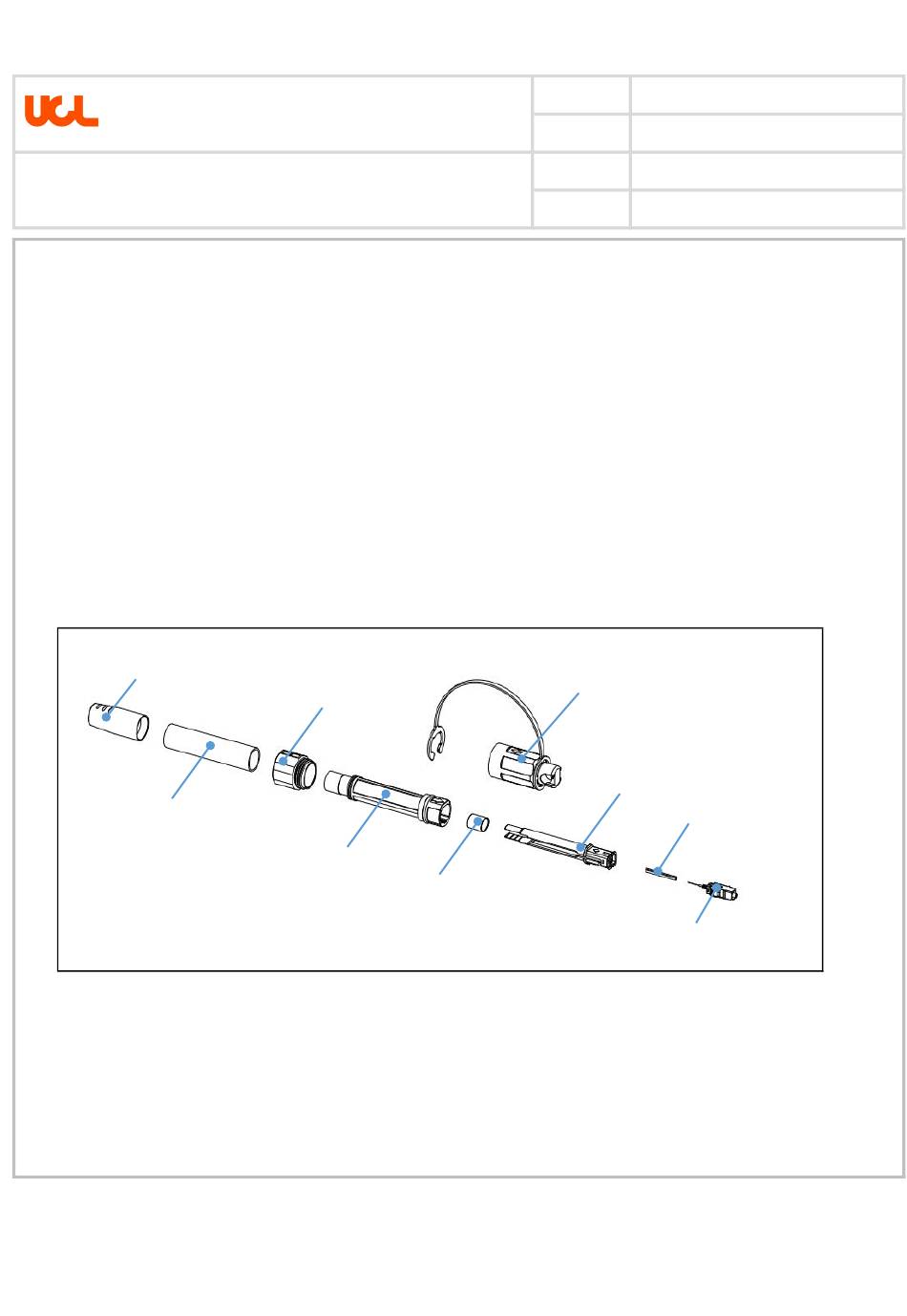

2. HFSOC- A2-SC/APC-CR-5430 Configuration
⑨ Boot
⑧ Protection
Tube
Form No: UCL001 Rev.01
No
Slack, Simple & Fast in FTTH Deployment
⑦ Screw Cap
⑥ Housing Ass'y
Installation
Guide #
Enactment
Revision
③ Cap Ass'y
⑤ Crimp Ring
IG-HFSOC-SC-CR-5430-001
Date of
2025-03-13
No. of
Page
④ Frame
② Sleeve
① Ferrule Ass'y
02
1/12
UCLSwift Co., Ltd.
Advertisement
Related Manuals for UCL SWIFT CR-5430
Summary of Contents for UCL SWIFT CR-5430
- Page 1 4. KF4A-HDC(Fusion Splicer) Setting 5. Installation 1. General This installation guide provides procedures for assembling for HFSOC-A2-SC/APC-CR-5430 to 5.4x3.0mm outdoor cable with KF4A-HDC All-In-One Fusion Splicer. A basic understanding of fiber handling, stripping, cleaning and splicing will be helpful. 2. HFSOC- A2-SC/APC-CR-5430 Configuration ⑨...
- Page 2 Slack, Simple & Fast in FTTH Deployment IG-HFSOC-SC-CR-5430-001 Guide # Date of Installation Manual 2025-03-13 Enactment No. of Revision Installation Hardened FSOC CR-5430 with KF4A-HDC 2/12 Page 3. Installation Tools 3.1 Tools for Cable Preparation Clamper Snipper Kevlar Shears Cutter Knife (HT-5133F2) (Lobstar 6”/2706)
- Page 3 Date of Installation Manual 2025-03-13 Enactment No. of Revision Installation Hardened FSOC CR-5430 with KF4A-HDC 3/12 Page 4.1 Splice Mode • G.657.A2 to G.657.A2 : Setting – 12. G657 A2B2 • G.652.D to G.652.D : Setting – 1. SM ITU-T G652 •...
- Page 4 Guide # Date of Installation Manual 2025-03-13 Enactment No. of Revision Installation Hardened FSOC CR-5430 with KF4A-HDC 4/12 Page 5.1.2 Measure and mark 200 mm from end of cable using a ruler. Then mark 150mm and 50mm. 200mm 150mm 50mm 5.1.3 Separate both side cable with cutter knife manually as below...
- Page 5 IG-HFSOC-SC-CR-5430-001 Guide # Date of Installation Manual 2025-03-13 Enactment No. of Revision Installation Hardened FSOC CR-5430 with KF4A-HDC 5/12 Page 5.1.5 Insert the sleeve and place the 0.9mm fiber in the holder (ROC900) as follows. [Caution] Sleeve 5.1.6a 5.1.6b Form No: UCL001 Rev.01...
- Page 6 Date of Installation Manual 2025-03-13 Enactment No. of Revision Installation Hardened FSOC CR-5430 with KF4A-HDC 6/12 Page 5.2 Fusion Splicing (Include Stripping and Cleaving) 5.2.1 Stripping a. Turn on the power of stripper. b. Mount the fiber holder to the auto- stripper.
- Page 7 Guide # Date of Installation Manual 2025-03-13 Enactment No. of Revision Installation Hardened FSOC CR-5430 with KF4A-HDC 7/12 Page 5.2.2 Cleaving a. Clean the optical fiber using an alcohol-soaked fiber wipe. Open the cover of the cleaver and trash bin.
- Page 8 Guide # Date of Installation Manual 2025-03-13 Enactment No. of Revision Installation Hardened FSOC CR-5430 with KF4A-HDC 8/12 Page 5.2.3 Splicing a. Close the wind cover after ensuring that both holders are in place. When wind cover is closed, the splice will be executed automatically.
- Page 9 Date of Installation Manual 2025-03-13 Enactment No. of Revision Installation Hardened FSOC CR-5430 with KF4A-HDC 9/12 Page f. Open the heater cover. Locate the connector and sleeve area and place the sleeve within appropriate heating area. Close the right heater cover first, then the main heater cover.
- Page 10 Guide # Date of Installation Manual 2025-03-13 Enactment No. of Revision Installation Hardened FSOC CR-5430 with KF4A-HDC 10/12 Page 5.3.2 Crimp Ring Assembly : Insert the crimp ring and secure the frame using the crimper. (1 time). 5.3.2a 5.3.2c 5.3.2b...
- Page 11 Guide # Date of Installation Manual 2025-03-13 Enactment No. of Revision Installation Hardened FSOC CR-5430 with KF4A-HDC 11/12 Page 5.3.4 Protection Tube Assembly : Insert the protection tube. 5.3.4a 5.3.4b : Fix the cable and housing kit using the HDC heater as follows.
- Page 12 Guide # Date of Installation Manual 2025-03-13 Enactment No. of Revision Installation Hardened FSOC CR-5430 with KF4A-HDC 12/12 Page : Finally, place the boot to the back of the housing body and assemble the strap. 5.3.4g 5.3.4h -End of Document- Form No: UCL001 Rev.01...
