S1742
WORLD WINNING DESIGN
Instruction Manual
ISS01
Schumacher Racing Products Ltd.
71-73 Tenter Road, Moulton Park
racing-cars.com
Northampton, NN3 6AX, U.K.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECLIPSE6 WORLD WINNING DESIGN and is the answer not in the manual?

Questions and answers

Related Manuals for Schumacher ECLIPSE6 WORLD WINNING DESIGN

Summary of Contents for Schumacher ECLIPSE6 WORLD WINNING DESIGN

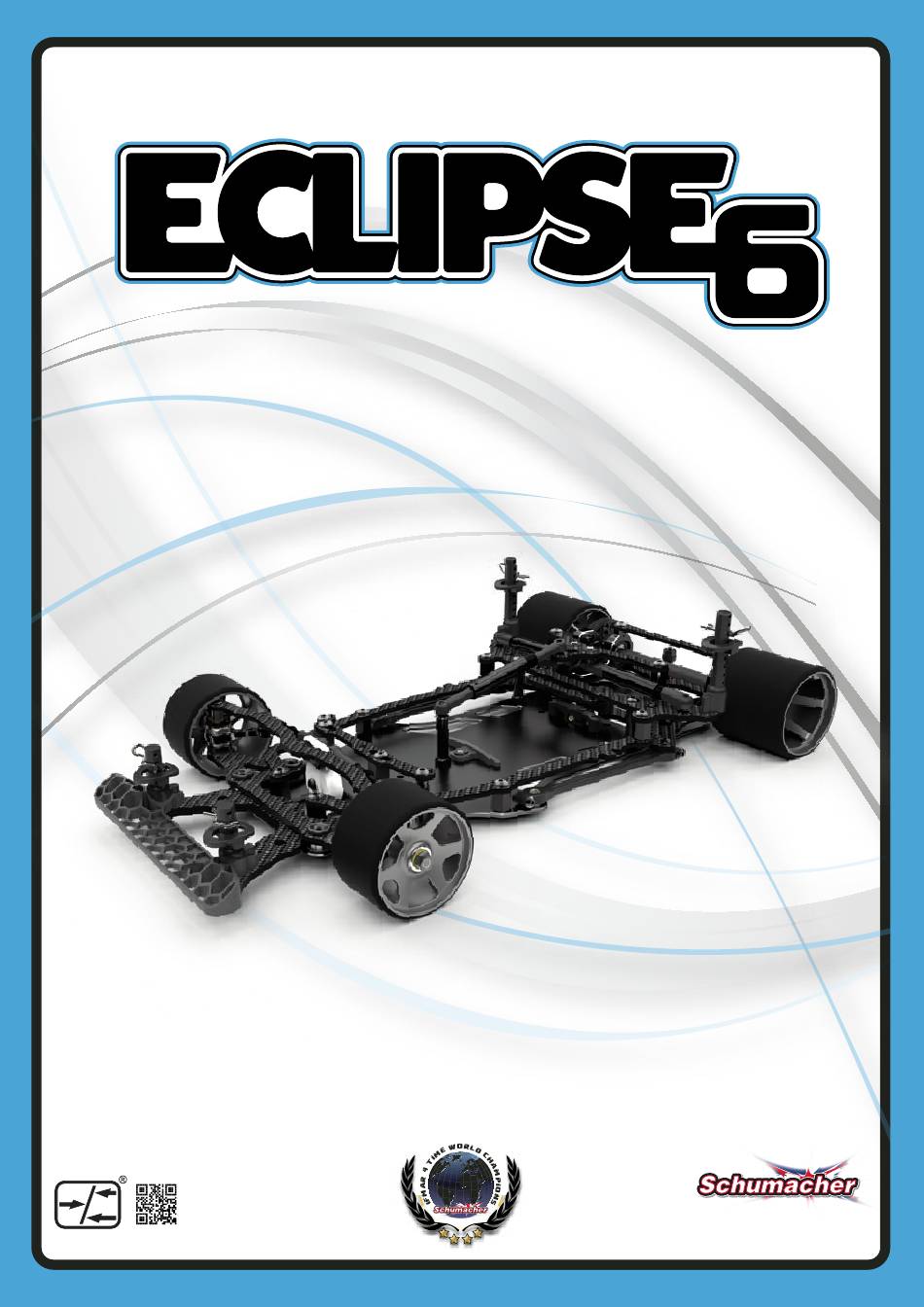

  • Page 1 S1742 WORLD WINNING DESIGN Instruction Manual ISS01 Schumacher Racing Products Ltd. 71-73 Tenter Road, Moulton Park racing-cars.com Northampton, NN3 6AX, U.K.

  • Page 2: Important Safety Notes

    WORLD WINNING DESIGN IMPORTANT SAFETY NOTES We strongly recommend that anyone driving RC cars, or organising events, should obtain third party liability insurance. In the UK this  can be done by joining the BRCA. www.brca.org This product is not suitable for children under the age of 14, without the direct supervision of a responsible adult. ...
  • Page 3 WORLD WINNING DESIGN Step 1 Use screw ‘F’ and washers ‘E’ to fit the inserts ‘D’. (Keep ‘F’ and ‘E’ safe for use later.) M3 x 5 Csk Hd Screw Note Orientation! This part is shown facing upside down. M3 x 8 Csk Hd Screw M3 Black Nut 4 LiPo Stops are included.
  • Page 4 WORLD WINNING DESIGN Step 2 Screw ‘E’ must not be over tightened! Allow a small clearance between the screw head and the plastic part to ensure a free pivot in the step 4. M3 x 6 Csk Hd Screw M3 x 8 Csk Hd Screw 5.5mm Pivot Ball Ball Stud Ultra Short Low M2.5 x 8 Button Hd Screw...
  • Page 5 WORLD WINNING DESIGN Step 3 M3 x 6 Csk Hd Screw M3 x 8 Csk Hd Screw M3 x 6 Button Hd Screw M3 Thread Insert M3 x 4 Button Hd Screw 180° 1.5mm Setting this 1.5mm is a good starting point and will result in a rear droop of 1mm.
  • Page 6 WORLD WINNING DESIGN Step 4b 1.5mm Cross Section M2.5 x 8 Button Hd Screw This 1.5mm measurement Ensure the sets the pod height at the larger hole on M3 x 6 Button Hd Screw kit setting. The pod base the side link is should be horizontal facing outward.
  • Page 7 WORLD WINNING DESIGN Step 5b M3 x 8 Button Hd Screw The side springs should be either just touching the lower pod base, or have a small gap. The spring should not have any preload. This is set by adjusting the spring seat. Step 6 Cross Section Ensure the ‘O;...
  • Page 8 Smear Grease over the WORLD WINNING DESIGN damper sleeve surface ensuring full and even Step 7 coverage. Shims ‘B’ are used to control droop and ride height. Adding Shims ‘B’ (U9012) reduces Low Ball Ultra Short droop, making the car easier to drive.
  • Page 9 WORLD WINNING DESIGN Step 8 M3 x 5 Button Hd Screw Use U9022 and U9023 with U9020 the wide track beam. Camber Strap Options U9019 1 Dot Kit 1.0° U9017 2 Dot Kit 1.5° U9023 3 Dot Wide 1.0° U9022 4 Dot Wide 1.5° Step 9a The Aerial and aerial mount are used if you have an...
  • Page 10 WORLD WINNING DESIGN The included white servo saver fits 25T servos such as CORE RC, Adjust screws so that the servo Highest, Futaba and Power HD. Step 9b spline is mounted centrally to the car. U8477 - White - 25T - Core RC -U8478 - Black - 23T - SANWA M3 x 10 Csk Hd Screw M3 x 10 Button Hd Screw...
  • Page 11 WORLD WINNING DESIGN Note the shape of the turnbuckle. Step 9c This groove indicates the left hand thread. Thread Thread Shorter Thread Longer Thread Note: Build a pair of turnbuckles the same length. RACE TIP The 15.5mm Width gives 1° toe out when using the kit servo saver type.
  • Page 12 WORLD WINNING DESIGN Ensure the flats on ‘F’ engage in the slot. Step 10 M3 x 5 Button Hd Screw M2.5 x 8 Cap Hd Screw ‘O’ Ring 1/4” x 3/8” Flanged Bearing 1/4” x ø8mm x 0.50 Spacer Rear Hex Screw The eccentrics are used to adjust the ride height.
  • Page 13 WORLD WINNING DESIGN Step 11 Make the centre damper Make two side dampers the with the long sockets. same with the short sockets. Use the Damper Use the Damper Rods Rod with the with the smaller ID. larger ID. M3 x 14 Grub Screw Damper Rod Smaller Centre Damper Rod...
  • Page 14 WORLD WINNING DESIGN Step 12 Step 12 M3 x 6 Button Hd Screw M3 x 6 Csk Hd Screw racing-cars.com...
  • Page 15 WORLD WINNING DESIGN Step 12 Step 13 M3 x 10 Button Hd Screw M3 x 5 Csk Hd Screw M3 x 10 Csk Hd Screw Pin ø1.5 x 11.8 M3 Thread Insert Ensure the counter bore on the bumper mount is on the top side.
  • Page 16 WORLD WINNING DESIGN Step 12 Step 14 Alloy M3 Nyloc Nut M4 Flanged Nyloc Nut ø5/32 x ø5/16 x 1/8 Flanged Wheel Spacer racing-cars.com...
  • Page 17 WORLD WINNING DESIGN Step 15 Receiver E.S.C. (Not supplied) (Not supplied) Transponder M3 x 10 Cap Hd Screw (Not supplied) Motor Black 1.0mm Washer (Not supplied) 1s LiPo Battery (Not supplied) Pinion Gear (Not supplied) Secure Battery with ‘O’ Ring racing-cars.com...

  • Page 18: Track Settings

    WORLD WINNING DESIGN TRACK SETTINGS RIDE HEIGHT & CASTOR See Page 7 - Step 7 Front Ride Height & Castor Chart Tyre Size Ride Height Castor Spacer A Spacer B Spacer C* Spacer D* Spacer C 3º 0.5mm 39.5mm 3.4mm 0.5mm 1.5mm 0.0mm...
  • Page 19 WORLD WINNING DESIGN FRONT TOE See Page 10 - Step 9c Toe out Parallel front wheels or a slight toe out (up to 1 degree per side) is the recommended setting. Toe out gives more initial steering. It does however make the car more difficult to drive on the straight, due to increased responsiveness.
  • Page 20 WORLD WINNING DESIGN POD ANGLE AND HEIGHT See Page 5 - Step 4b When X= 4.3mm, the pod angle is 0°. This respresents the kit setting. This gives best support for the rear roll springs and set the kit motor height. If this number is decreased, the motor height will drop below the chassis, and be the ride height limitation.

  • Page 21: Front Springs

    WORLD WINNING DESIGN ROLL CENTRE ADJUSTMENT (SPEED SECRET) See Page 3 - Step 2 & Page 4 - Steps 3, 4a When using the alloy speed secret pivot parts (U7918 and U7919) the roll centre can be adjusted by adding or removing spacers from below the alloy pivot mount and alloy pivot block.
  • Page 22 WORLD WINNING DESIGN GEARING CHART Spur Pinion In this chart we have given the mm/rev figures for 28.15 26.35 our suggested tyre size of 41.5mm, for a range of spurs and pinions. If you prefer to use a different 29.63 27.74 size tyre, or to calculate as they wear, complete the 31.11...

  • Page 23: Option Parts

    WORLD WINNING DESIGN OPTION PARTS CR280 - Ti Pro Ball Studs - Short - (pr) U7828 - Titanium Ball Stud Low (Ultra Short) (pk4) U7829 - Titanium Ball Stud Low (Short) (pk4) U4298 - Turnbuckle HT - 35mm - pr U7315 - Titanium Turnbuckle - 35mm - Silver - pr U8065 - M3 Alloy Thread Inserts pk8 U4328 - Impact Servo Saver...
  • Page 24 WORLD WINNING DESIGN SPARES LISTS Chassis Parts Hardware Cont. AX034 Aerox Handed Body Clips - Black (pk8) U2356 SPEED PACK - M3x16-30 Csk Screws (pk12) CR291 CORE RC 1/12 Servo Saver 25T Futaba U2760 SPEED PACK - M3 Button Hd; 4 to 20 U119 Aerial Tube - Pack 4 U2812...
  • Page 25 WORLD WINNING DESIGN SPARES LISTS Suspension Option Parts Cont. CR896 CORE RC Damper Grease - Light AM364112 Spur Gear 64P - 112T CR897 CORE RC Damper Grease - Medium AM364114 Spur Gear 64P - 114T CR898 CORE RC Damper Grease - Heavy AM364116 Spur Gear 64P - 116T U4274...

  • Page 26: Set Up Sheet

    SET UP SHEET Driver: Ollie Payne Track: Event: Medium Grip Track Test Date: Qualifying: Final: Best Lap: WORLD WINNING DESIGN TRACK TYPE Notes: TYRES Side Wall Glue F: Grip Level High Medium Tyres Front: JT3-35FT Rear: JT3-35RT Type Tight Open Mixed Diameter 40.2...
  • Page 27 SET UP SHEET Driver: Kit Build Track: Event: Date: Qualifying: Final: Best Lap: WORLD WINNING DESIGN TRACK TYPE Notes: TYRES Side Wall Glue F: Grip Level High Medium Tyres Front: Contact T35 Rear: Contact T35 Type Tight Open Mixed Diameter Front: Rear: Condition...
  • Page 28 SET UP SHEET Driver: Test Driver Track: Event: High Grip Track Test Date: Qualifying: Final: Best Lap: WORLD WINNING DESIGN TRACK TYPE Notes: TYRES Side Wall Glue F: Grip Level High Medium Tyres Front: JT3-35FT Rear: JT3-35RT Type Tight Open Mixed Diameter 39.5...
  • Page 29 SET UP SHEET Driver: Ollie Payne Track: Event: Medium Grip Track Test Date: Qualifying: Final: Best Lap: WORLD WINNING DESIGN TRACK TYPE Notes: TYRES Side Wall Glue F: Grip Level High Medium Tyres Front: JT3-35FT Rear: JT3-35RT Type Tight Open Mixed Diameter 40.5...
  • Page 30 SET UP SHEET SET UP SHEET Driver: Track: Event: Date: Qualifying: Final: Best Lap: WORLD WINNING DESIGN WORLD WINNING DESIGN TRACK TYPE Notes: TYRES Side Wall Glue F: Grip Level High Medium Tyres Front: Rear: Type Tight Open Mixed Diameter Front: Rear: Condition...
