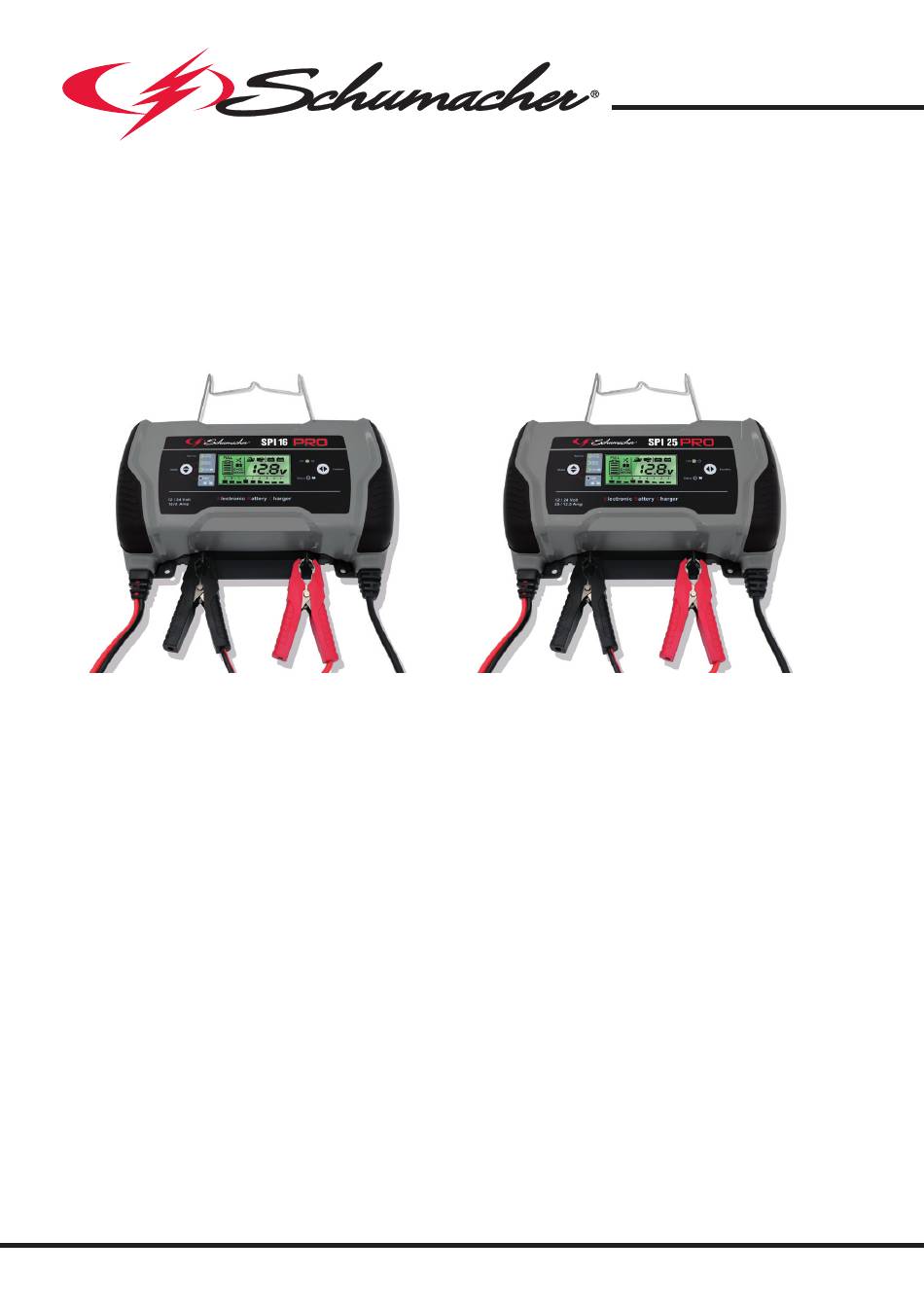

- Page 1 Charger 12/24 V SPI PRO 16 - 12 V-16 A / 24 V-8 A SPI PRO 25 - 12 V-25 A / 24 V-12.5 A 979571-2-EN...
-
Page 2: Caution: Safety Instructions
EN - English - Instructions for use Only use the charger to recharge 12 V and 24 V rechargeable lead-acid and 12 V LiFePO4 lithium-ion batteries. Do not use it for any other purpose. This charger is designed for use only with the supply mains of 220 - 240 V~, 50/60 Hz. 1. CAUTION - SAFETY INSTRUCTIONS Read the instructions before use. -
Page 3: General Information
1.12 Do not use the appliance if it has received a sharp blow, been dropped or otherwise damaged in any way. 1.13 Do not put fingers or hands into the appliance. 1.14 Never put the appliance on top of the battery while using it. 1.15 Do not attempt to charge a damaged battery. - Page 4 Do not charge other types of lithium batteries. Only available in 12 V mode / for 12 V batteries. Charging current according to the battery capacity. SPI PRO 16 • For charging 5 Ah to 80 Ah batteries. • For maintenance 5 Ah to 120 Ah batteries.
- Page 5 2.3 Display The display will show the different charging parameters chosen with the « Mode » and « Function » button as well as: • The battery voltage, charging voltage. • when the battery is charged. • Error indication if error / malfunction of the battery. 2.4 Charging cycles Charging phase battery Description...
- Page 6 Output cable with eyelets - Only available for SPI PRO 16 Loosen and remove the nuts from the bolts of the battery terminals. Connect the positive eyelet (+) to the positive terminal (+) of the battery, then connect the negative eyelet (-) to the negative (-) terminal of the battery.
- Page 7 automatically after 5 seconds. NOTE: Lithium batteries are equipped with a BMS that in some cases can prevent the start of the charging cycle. To activate the charge process in this scenario; press and hold the « Function » button for 5 seconds, after setting the charger in lithium mode.
-
Page 8: Maintenance And Storage
The battery may be defective. Battery recovery failed after a Contact battery service full cycle of desulfation. center. The output current is > 13.5 Remove/turn excessive A on the DC power supply load. mode. Position the clamps / eyelets Disconnected cables, short correctly resume circuit cables. - Page 9 - 9 -...
- Page 10 Schumacher Europe Z.I. Rue de la Baronnerie, 3 - B-4920 Harzé - Belgium +32 4 388 20 17 www.schumachereurope.com...
