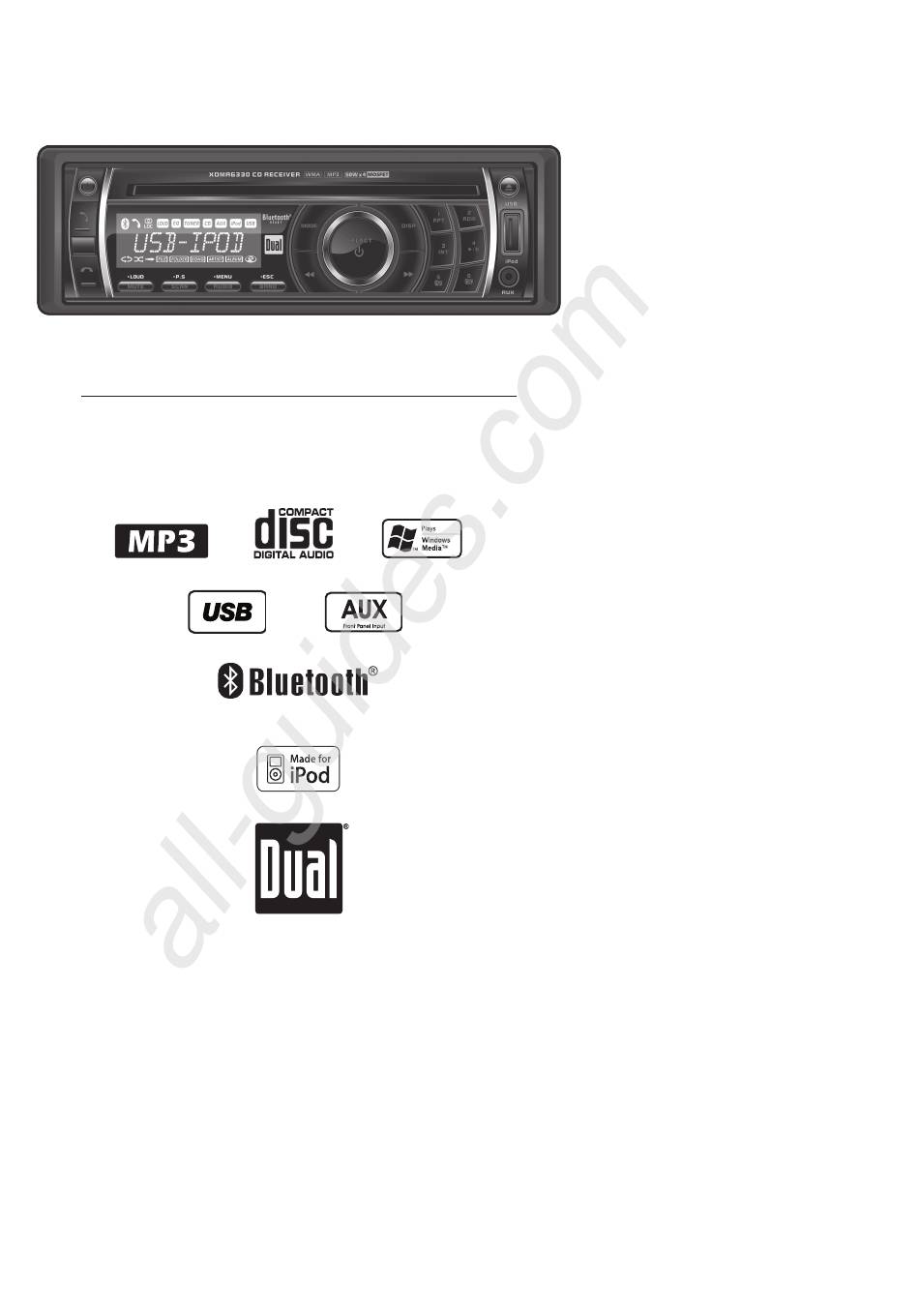

- Page 1 All manuals and user guides at all-guides.com XDMA6330 INSTALLATION/OWNER'S MANUAL AM/FM/CD/MP3/WMA/USB/3.5mm Bluetooth ® Ready Receiver with iPod ® Control and Detachable Face READY...
- Page 2 All manuals and user guides at all-guides.com XDMA6330 INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
-
Page 3: Wiring Diagram
Steering Wheel Interface Input (PAC SWI-PS required) FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The XDMA6330 uses one 10 amp ATM fuse located beside the wiring connector. -
Page 4: Control Locations - Receiver
Eject USB Port The XDMA6330 allows playback of your favorite MP3 and WMA files recorded on CD-R and CD-RW discs. Its powerful on-board DSP processor decodes the compressed audio while maintaining near-CD sound quality. An internal SRAM buffer provides ESP... -
Page 5: Control Locations - Remote
All manuals and user guides at all-guides.com XDMA6330 OPERATION Control Locations - Remote Mode Key 9 Mute / End Call Power ( )/Select Key 0 / Display Volume Up Talk Audio / Menu Key 8 Tune / Track Up Key 7 Volume Down Preset 4 / Play / Pause... -
Page 6: General Operation
All manuals and user guides at all-guides.com XDMA6330 OPERATION General Operation Faceplate Removal Press RELEASE and pull away from the left side to remove. To re-install, insert right side of faceplate first then push left side to secure. Semi-Permanent Remove trim ring and install supplied #1 x 7/32” Phillips Faceplate Installation... -
Page 7: Setup Menu
All manuals and user guides at all-guides.com XDMA6330 OPERATION General Operation Press and hold AUDIO/MENU for more than 3 seconds to Setup Menu access the setup menu, then press AUDIO/MENU to cycle through menu options. When desired option appears in the display, rotate the volume knob left/right to adjust or activate the desired function. - Page 8 All manuals and user guides at all-guides.com XDMA6330 OPERATION General Operation Escape Press ESC to exit any menu adjustment mode. Audio Press AUDIO/MENU momentarily to select between Bass, Treble, Balance, Fader, EQ, Subwoofer* and Source Volume Level. BASS TREBLE BALANCE FADER SUBWOOFER*...
- Page 9 All manuals and user guides at all-guides.com XDMA6330 OPERATION AM/FM Tuner Operation Seek Tuning Press TUNE or TUNE for more than one second to seek to the next strong station. Manual Tuning Press TUNE or TUNE momentarily to change radio frequency up or down one step at a time. Press and hold to advance quickly.
-
Page 10: Cd Player Operation
All manuals and user guides at all-guides.com XDMA6330 OPERATION CD Player Operation Insert CD With the label facing up, insert a standard size CD into the CD slot. The CD will automatically begin playback. Eject CD Press EJECT to eject the CD. The unit will change to previous mode of operation (AM/FM, AUX, USB, iPod or Bluetooth). - Page 11 All manuals and user guides at all-guides.com XDMA6330 OPERATION CD Player Operation - MP3/WMA Files Playing an MP3/WMA Disc When an MP3/WMA encoded disc is first inserted, “CD READ” will appear in the display. Depending on the number of files and folders, this may take several seconds. Displaying Information Press DISP to select between file name (default), folder, song title, artist, track number or clock &...
- Page 12 All manuals and user guides at all-guides.com XDMA6330 OPERATION CD Player Operation - MP3/WMA Files Folder/File Search Mode Press SELECT to enter the folder/file search mode. The head unit will read the CD, and a list of folders and files from the CD will be displayed. The search will always begin from the current directory.
- Page 13 All manuals and user guides at all-guides.com XDMA6330 OPERATION CD Player Operation - MP3/WMA Files Folder Access Press to select the previous folder. Press to select the next folder. Note: Folder access is only available on MP3/WMA discs recorded with more than one folder. Repeat Press RPT to enter the Repeat menu, then turn the volume ...
- Page 14 All manuals and user guides at all-guides.com XDMA6330 OPERATION CD Player Operation - MP3/WMA Files Media Compatibility The following types of discs/files are compatible: • CD-ROM (ISO), CD-R, CD-RW • CD-DA • MP3 data • WMA data The following types of discs/files are not compatible: • WMA files that are protected by DRM (Digital Rights Management).
- Page 15 All manuals and user guides at all-guides.com XDMA6330 OPERATION CD Player Operation - MP3/WMA Files Additional MP3/WMA An internal buffer provides ESP (Electronic Skip Protection) to Information virtually eliminate skipping. When playing a disc recorded with regular audio files (CD-DA or .WAV) and MP3/WMA files, the unit will play the MP3/WMA files only.
- Page 16 USB Operation - MP3/WMA Files Connecting a USB Device Play MP3/WMA files from most mass storage devices by (sold separately) connecting them to the XDMA6330's USB port. Playing Music When a USB device is first connected, “READING” will appear in the display and playback will begin momentarily. Depending on the number of files and folders, it may take several seconds for the device to begin playing.
- Page 17 All manuals and user guides at all-guides.com XDMA6330 OPERATION USB Operation - MP3/WMA Files Displaying Information When a file is accessed, the clock and elapsed time will be displayed. Press DISP momentarily to select file name (default), song title, artist, track number or clock & elapsed time.
- Page 18 All manuals and user guides at all-guides.com XDMA6330 OPERATION USB Operation - MP3/WMA Files Character Support Maximum character display information • Track name – 32 character maximum • Directory name – 32 character maximum • *Song title – 30 character maximum • *Artist name – 30 character maximum *Song title and artist name will only be displayed if included with the MP3/WMA file.
- Page 19 All manuals and user guides at all-guides.com XDMA6330 OPERATION USB Operation - MP3/WMA Files Additional MP3/WMA Only MP3 files with filename extension (.mp3) can be played. Information Only WMA files with filename extension (.wma) can be played. Do not attempt to play non-MP3/WMA files with the MP3/WMA extension.
-
Page 20: Ipod ® Search Mode
To play music from an iPod, use the Apple dock connector to USB cable, commonly called the iPod sync cable, (included with iPod), to connect an iPod to the XDMA6330 USB port. Once connected, READING will appear in the display. The iPod will begin playback automatically. If a song is playing on the iPod before it is connected, it will continue to play. - Page 21 All manuals and user guides at all-guides.com XDMA6330 OPERATION iPod Operation ® Song Select Press to skip to the beginning of the next song. Press to return to the beginning of the current song. Pressing again skips to the beginning of the previous song.
-
Page 22: Bluetooth Operation
Overview Connecting a Bluetooth device requires first connecting the Dual BTM60 Bluetooth interface module. When connected to a Dual Bluetooth ready head unit, the BTM60 supports the HFP (hands-free profile), A2DP (advanced audio distribution profile) and AVRCP (audio video remote control profile). - Page 23 All manuals and user guides at all-guides.com XDMA6330 OPERATION Bluetooth Operation ® Description Function Press once. "Enter Number" will be shown, then an "_" will appear on the display. Input the desired phone number using the 0-9, *, # buttons on the Making a Phone Call...
-
Page 24: Bluetooth Setup Menu
All manuals and user guides at all-guides.com XDMA6330 OPERATION Bluetooth Operation ® Description Function To enter last number dialing mode, press , then press a second time. The head unit will display "REDIAL MENU." Press SELECT to cycle through the received, dialed or missed call Redial Menu... -
Page 25: Bluetooth Reset
Bluetooth Streaming Audio Operation (AV MODE) The XDMA6330 supports A2DP wireless streaming audio from your Bluetooth mobile device directly to your head unit. You can also control your music from the front panel of the head unit using AVRCP (audio video remote control profile). -
Page 26: Limited One Year Warranty
A slight adjustment of any custom Dual Electronics Corp. warrants this product to controls may save you a service call. the original purchaser to be free from defects in material and workmanship for a period of one 2. -
Page 27: Troubleshooting - General
All manuals and user guides at all-guides.com XDMA6330 OPERATION Troubleshooting - General Problem Cause Action Yellow wire not connected or incorrect Check connections for proper voltage Red wire not connected or Unit will not turn on voltage (11~16VDC) incorrect voltage (no power) Black wire not connected Check connection to ground... -
Page 28: Specifications
All manuals and user guides at all-guides.com XDMA6330 OPERATION Specifications CD Player Frequency response: 10Hz-20kHz Channel separation @ 1kHz: >65dB D/A converter: 1 Bit FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 8.5dBf 50dB quieting sensitivity: 10dBf Stereo separation @ 1kHz: 40dB Frequency response: 30Hz-13kHz AM Tuner... -
Page 29: Fcc Compliance
All manuals and user guides at all-guides.com XDMA6330 OPERATION FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 30 All manuals and user guides at all-guides.com XDMA6330 OPERATION Notes...
- Page 31 All manuals and user guides at all-guides.com XDMA6330 OPERATION Notes...
- Page 32 Dual Electronics Corp. Toll Free: 1-866-382-5476 www.dualav.com ©2009 Dual Electronics Corp. All rights reserved. Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and or other countries. iPod is a trademark of Apple Inc., registered in the U.S. and other countries.
