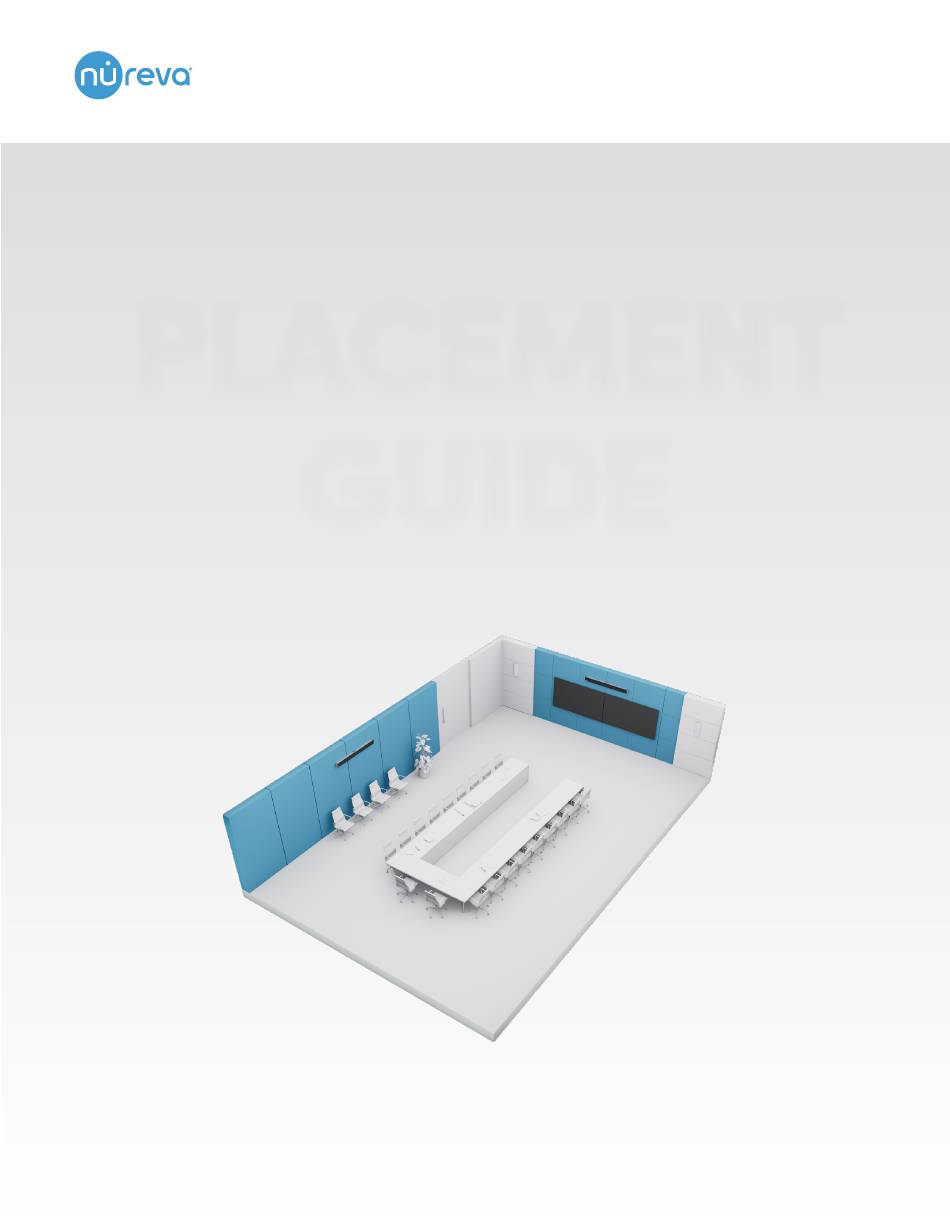

- Page 1 PLACEMENT GUIDE MICROPHONE AND SPEAKER BAR PLACEMENT PLACEMENT GUIDE GUIDE Nureva HDL410 system ® Version 1.0 - 03-25-2025...
-
Page 2: Table Of Contents
Configuration 1: Front and back walls Configuration 2: Opposite side walls Configuration 3: Perpendicular walls Irregularly shaped rooms Rooms with high reverberation levels Using the acoustic check tool Open spaces Adaptive Voice Amplification Dynamic boost We are Nureva Connect Nureva Inc. • Placement guide 2... -
Page 3: Introduction
The Nureva HDL410 system is in the HDL pro series, which provides exceptional audio conferencing without a complex setup. The HDL410 system features two integrated microphone and speaker bars and is designed for extra-large spaces up to 35' x 55' (10.7 x 16.8 m). -
Page 4: General Guidelines For Bar Placement
Mounted on the same wall. Selecting one of these configurations will ensure the coverage map is created properly. It’s important these same principles are applied in non-rectangular rooms and when mounting bars on tripods or carts. Nureva Inc. • Placement guide 4... -
Page 5: Guideline 2: Consider Proximity To Activity Areas
Avoid placing bars: • Behind posts • In recessed areas • Behind covers • Within 3' (0.9 m) of room corners or side walls Nureva Inc. • Placement guide 5... -
Page 6: Guideline 4: Avoid Sources Of Background Noise
While mounting the bars on a shorter wall may still provide full-room coverage, the distance from the opposite side of the room to the physical microphones may be too long for good performance (see Guideline 2: Consider proximity to activity areas). Nureva Inc. • Placement guide 6... -
Page 7: Guideline 6: Locate Bars On Opposite Walls For Contained Coverage
A natural benefit of this configuration is sound location accuracy, making it ideal for applications like camera tracking. Red dot showing the intersection of the two walls. Nureva Inc. • Placement guide 7... -
Page 8: Guideline 8: Consider Bar Mounting Height Relative To The Coverage Map
Mounting this too close to an object below it, reflect to the microphone array. reflect to the microphone array. way reflects minimal sound to the preventing sound reflection to microphone array. the microphone array. Nureva Inc. • Placement guide 8... -
Page 9: Guideline 10: Optimize Sound Reflection From The Mounting Surface
Display stand, moving cart or tripod • Fixture such as an Axeos ceiling mount • Rough surface, such as brick with large grout lines or a wood slat wall A sound-reflective backboard behind a microphone and speaker bar. Nureva Inc. • Placement guide 9... -
Page 10: Bar Placement In Particular Scenarios
Camera tracking and switching The HDL410 system provides X and Y sound location coordinates for camera tracking and switching solutions. For example, the Nureva camera zones feature, which uses these coordinates, can be set up by pairing an HDL410 with an INOGENI CAM230 ®... -
Page 11: Specific Coverage Areas
Mount each bar horizontally on the front and back walls. • Bear in mind the height difference will determine the coverage map angle. • Position the bars so the coverage map angle matches the room’s slope. Nureva Inc. • Placement guide 11... -
Page 12: Configuration 2: Opposite Side Walls
Configuration 2: Opposite side walls • Mount both bars to match the slope of the room. • Stagger the bars from each other on opposite side walls. Nureva Inc. • Placement guide 12... -
Page 13: Configuration 3: Perpendicular Walls
(Guideline 10: Optimize sound reflection from the mounting surface). Mount on perpendicular walls for optimal coverage. Mount staggered on opposite short walls. Mount staggered on opposite long walls. Mount to the same wall with proper spacing. Nureva Inc. • Placement guide 13... -
Page 14: Rooms With High Reverberation Levels
If at least one background noise and one reverberation measurement are taken, an overall acoustic score is calculated. • The acoustic score (and individual measurements) can help when choosing the optimal position for HDL pro series microphone and speaker bars. -
Page 15: We Are Nureva
© 2025 Nureva Inc. All rights reserved. Nureva, Microphone Mist and the Nureva logo are trademarks or registered trademarks of Nureva Inc. in the United States, Canada and other countries. All third-party product and company names are for identification purposes only and may be trademarks of their respective owners. 03/25 Nureva Inc.
