Technical specifications
Frequency
LCD
Nominal effective range
Power requirement
Baby unit: 2402 - 2480 MHz (WiFi, FHSS, BLE )
Max Transmit power is 10mW (WiFi, FHSS, BLE )
Parent unit: 2406 - 2475 Mhz
Max Transmit power is 100mW
7'' Colour LCD (IPS 1280x800 pixels)
Actual operating range may vary according to environmental conditions
at the time of use.
Baby unit power adaptor: Output: 5V DC, 1.5A.
Parent unit power adaptor: Output: 5V DC, 2A.
Parent unit battery: 3.7V 5000mAh, 18.5Wh Lithium-ion battery
Specifications are subject to change without notice.
© 2024 VTech Telecommunications, ltd.
All rights reserved. 04/24. RM7787HD_QSG_UK_V1

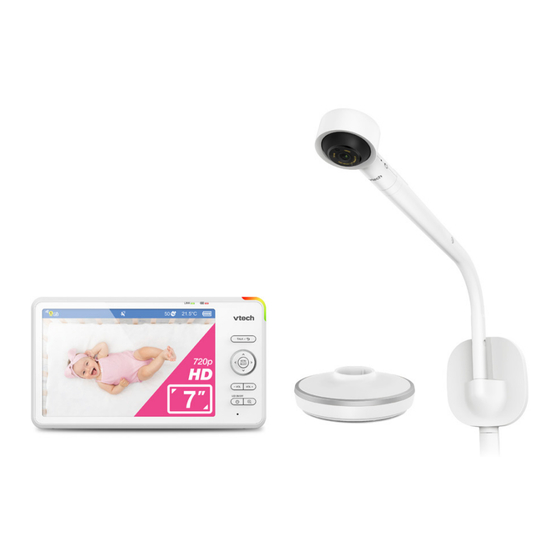

7" Smart High-Definition
Over-the-Cot Monitor
Quick start guide
RM7787HD
Advertisement
Table of Contents
Related Manuals for VTech RM7787HD
Summary of Contents for VTech RM7787HD
- Page 1 Baby unit power adaptor: Output: 5V DC, 1.5A. Parent unit power adaptor: Output: 5V DC, 2A. Parent unit battery: 3.7V 5000mAh, 18.5Wh Lithium-ion battery Specifications are subject to change without notice. © 2024 VTech Telecommunications, ltd. All rights reserved. 04/24. RM7787HD_QSG_UK_V1...
-
Page 2: Important Safety Instructions
• Use and store the product at a temperature between 0 C and Baby Unit Output: 5V DC 1.5A VTech Telecommunications Ltd. Model: VT07EUK05150 • Mishandling batteries can cause burn, fire or explosion Parent Unit Output: 5V DC 2A hazards. -
Page 3: What's In The Box
What’s in the box Your baby monitor package contains the following items. Save your sales receipt and original packaging in the event warranty service is necessary. Parent Unit Extension Cable Baby Unit Parent Unit adaptor (Output: 5V 2A) Baby Unit adaptor Mounting Template/ (Output: 5V 1.5A) Measure... - Page 4 First Extension Extension Cover Second Extension Wall Mount Cover Wall Mount Bracket (for attaching to wall) Cable Cover Cable Cover screws Wall Mount screws End Cable Cover and wall plugs and wall plugs (inside bag with label) (inside bag with label)
- Page 5 Download app for mobile access Use the MyVTech Baby Plus on your mobile phone to monitor your baby remotely. Follow the instructions below to set up and pair your baby monitor with the app. 1. Scan the QR code to download the free MyVTech Baby Plus mobile app, or search “MyVTech Baby Plus”...
-
Page 6: Install The Wall Mount
Install the wall mount : You can also install your monitor when your cot is away from a wall with the OTC-Floorstand, available separately for purchase. This versatile floor stand allows you to effortlessly locate your camera without securing to a wall. Caution: •... - Page 7 4. Insert the Extension Cable plug into the DC socket, then secure the cable with the Extension Cover (C). 5. Use the supplied Mounting Template/ 6. Insert 3 plastic wall plugs (H) into the drilled Measure to correctly locate the Wall Mount holes, then insert the screws (H) into the and mark the 3 mounting holes for the wall plugs.
- Page 8 7. Place the Wall Mount Cover (D) on the Wall 8. Install the Cable Covers (F) to prevent baby mount bracket (E), and then slide downwards from touching the cable. until it locks into place. The Cable Covers (F) can be secured using the adhesive pads on the back of the covers to adhere the covers to the wall, or alternatively the supplied screws (I) can be...
-
Page 9: Baby Unit Overview
Overview Baby unit overview Light sensor Camera lens Microphone Infrared LEDs • Allow you to see clearly in a dark environment. Speaker LED indicator Set to off by default. You can turn it on using the app (Setting > Camera Setting > LED status). In direct mode: •... -
Page 10: Parent Unit Overview
Parent unit overview LINK LED light Arrow keys • On when the parent unit is linked to the • Press to navigate leftward, upward, baby unit. rightward or downward, within the main menu and sub-menus. • Flashes when the link to the baby unit is lost. - Page 11 Install and power on the baby unit Installation with wall mount Refer to INSTALL THE WALL MOUNT section to complete the assembly of the wall mount, then insert the baby unit power connector into the First Extension of the wall mount, and the power adaptor plug into the DC socket of the Extension Cable and a power supply.
- Page 12 Connect and power on the parent unit Connect the parent unit Power on the parent unit The parent unit turns on automatically after connection to the power socket, and the welcome screen appears. You can press and hold Power to turn the parent unit on or off.
-
Page 13: How The System Works
How the system works To receive product firmware updates, this baby monitor requires connecting to a 2.4GHz home Wi-Fi network. Direct mode Your baby monitor parent unit and baby unit connect to each other in Direct mode by default, which allows you to immediately stream video out of the box. You may experience reduced signal strength if your parent unit and baby unit are far apart, or there are... - Page 14 Parent unit icons Main Sub- Main Sub- Options Options Menu menu Menu menu Night light Screen Off Timer On/Off • Toggle the night light on or off. • Turn the screen off timer OFF, or set Colour the screen to turn off after 1, 3 or 5 minutes when no sound is detected.
- Page 15 Low battery indicator Protect your privacy and online security VTech cares about your privacy and peace of mind. That’s why we’ve put together a list of industry- recommended best practices to help keep your wireless connection private and your devices protected when online.
-
Page 16: Night Vision
Night vision The baby unit has infrared LEDs that allow you to see your baby clearly at night or in a dark room. When the baby unit detects low light levels, the infrared LEDs are switched on automatically. The images from the baby unit are in black and white, and appears on the screen. -
Page 17: General Product Care
General product care To keep this product working well and looking good, follow these guidelines: • Avoid placing near heating appliances and devices that generate electrical noise (for example, motors or fluorescent lamps). • DO NOT expose to direct sunlight or moisture. •... -
Page 18: Declaration Of Conformity
(2014/53/EU) and the UK Radio Regulations 2017 on radio systems and telecommunication equipment. VTech Telecommunications Ltd. hereby declares that Over-the-Cot 7” HD Screen Smart Nursery Monitor RM7787HD complies with the essential requirements and other relevant provisions of EU Radio Equipment Directive (2014/53/EU) and UK Radio Equipment Regulations 2017. -
Page 19: Statement Of Compliance
Product Security and Telecommunications Infrastructure Regulations I, Michael Tsui, on behalf of VTech Telecommunications Limited, hereby declare the following with regards to our products and their compliance with The Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023 in the United Kingdom.
