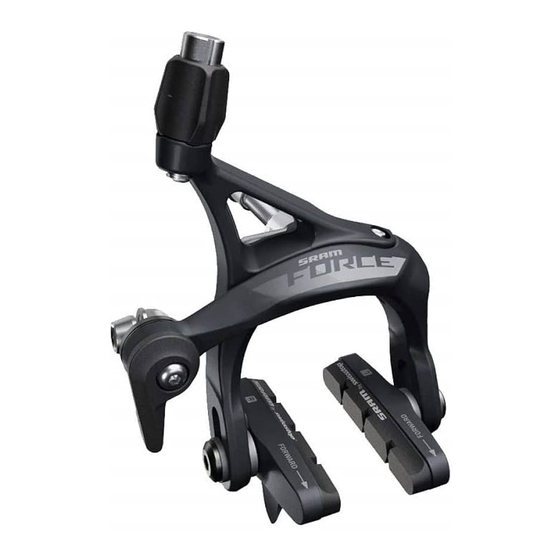

- Page 1 User manual C A U T I O N Read all instructions for correct installa- tion and use. Force » Rival » Dual Pivot Road Calipers Released 1/2007 Publ. No. 95.5415.001.000 www.sram.com...
- Page 2 WORLD HEADQUARTERS ASIAN HEADQUARTERS IAN HEADQUARTERS EUROPEAN HEADQUARTERS Chicago, Illinois U.S.A. Taichung ng, Taiwan an Amersfoort, The Netherlands SRAM Corporation SRAM Taiwan SRAM Europe 1333 North Kingsbury, 4th floor No. 1598-8 Chung Shan Road Basicweg 12-D Chicago, Illinois 60622 Shen Kang Hsiang, Taichung 3821 BR Amersfoort County 429 ·...
- Page 4 5 mm 5 mm 8 – 10 Nm 8 – 10 Nm 70 – 90 in.lbs. 70 – 90 in.lbs.
- Page 8 The effectiveness of braking is dependent on many conditions over which SRAM has no control including the speed of the bicycle, type and condition of the riding surface, braking lever force, proper installation and maintenance of brakes, cables, levers, brake pads, the condition of the bike, weight of the rider, braking technique, weather, and a variety of other factors.
- Page 9 A D V I C E SRAM’s road brake pads are optimized for aluminum rims. If used with ceramic-coated or carbon rims, the brake pads will wear more with rapidly. Be certain to inspect them often.
- Page 10 C O M P A T I B I L I T Y SRAM Force / Rival Dual Pivot Road calipers are designed for use with... » Brake levers: SRAM Force / Rival Integrated Brake Shifters » Brake cable: 1.6 mm high quality brake cable with road-style cable...
- Page 11 I N S T A L L A T I O N Install the brake caliper: Hold the brake so it is approximately centered on the wheel, then tighten the brake mounting nut with a 5 mm Allen wrench, tighten to 8 –...
- Page 12 I N S T A L L A T I O N » Tighten the cable bolt to 6 – 8 Nm (53 – 70 in.lbs.). » Turn the barrel adjuster to reset the shoe clearance (1 – 1.5 mm). Center the brake pads: Loosen the m ounting nut of the caliper brake a bit.
