Summary of Contents for VTech VM919HD

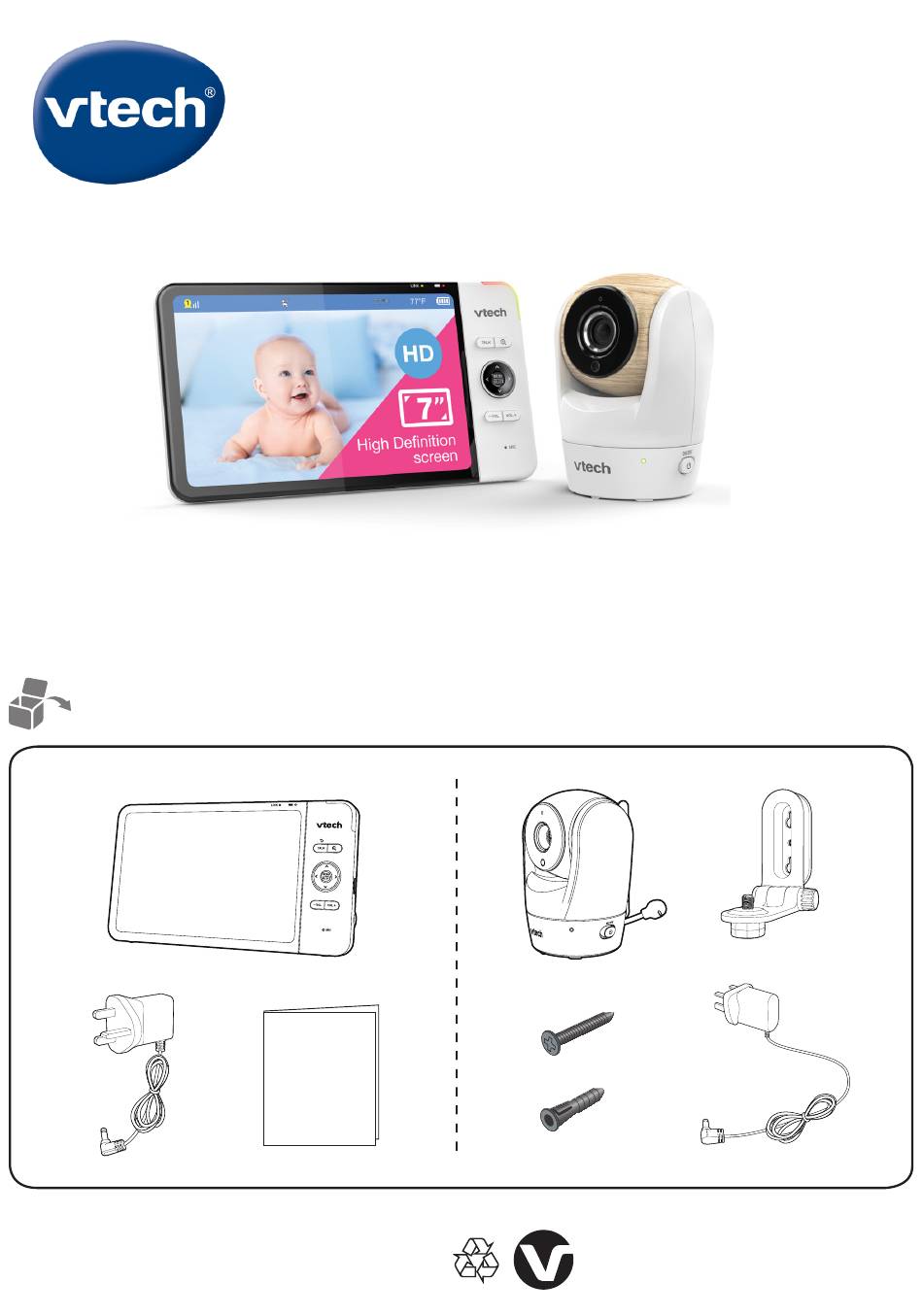

- Page 1 VM919HD Full Colour Pan and Tilt HD Video Monitor Quick start guide What’s in the box Quick start guide Specifications are subject to change without notice. © 2022 VTech Communications, Inc. All rights reserved. 07/22. VM919HD_UK_QSG_V2.
-
Page 2: Important Safety Instructions
16. This product should not be placed in any area where proper ventilation is not provided. Slots and openings This VTech product complies with all standards regarding in the back or bottom of this product are provided for electromagnetic fields (EMF). If handled properly and ventilation. - Page 3 Connect the baby monitor Connect the baby unit NOTES NOTE • The rechargeable battery in the parent unit is built-in. • Use only the power adaptors supplied with this product. • Make sure the parent unit and the baby unit are not connected to the switch controlled electric outlets.
- Page 4 Connect the baby monitor (Cont’d) Notes NOTES NOTE • Before using the baby monitor for the first time, charge the parent unit battery for 12 hours. When the parent unit battery is fully charged, the battery icon becomes solid • It takes longer to charge the battery when the parent unit is turned on. To shorten the charging time, turn the parent unit off while charging.
-
Page 5: Positioning The Baby Monitor
Positioning the baby monitor > 1 metre > 3ft (1m) > 1 metre ≥ 3ft (1m) < < 1 metre 3ft (1m) Note NOTES NOTE • To avoid interference from other electronic devices, place your baby monitor at least 1 metre away from devices such as wireless routers, microwaves, mobile phones and computers. - Page 6 Basic operation - Parent unit Adjust speaker volume Zoom Pressing -VOL / VOL+ adjusts the parent Press to zoom in or out. unit speaker volume level received from the baby unit. Muted Talk to your baby via the baby unit Turn on/off the parent unit screen 1.
- Page 7 Press to enter the menu, choose a MENU Use the menu menu item, or save a setting. You can use the parent unit for advanced settings or Press to enter the menu, choose a MENU operations, such as to play or stop the baby menu item, or save a setting.
-
Page 8: Overview - Baby Unit
Overview - Baby unit Microphone Temperature sensor • Position the sensor Camera lens horizontally for optimal Light sensor usage. Caution LED indicator • Do not bend the temperature Infrared LEDs sensor upward. ON/OFF switch Antenna Speaker Power jack Threaded socket for wall mounting Pair button... -
Page 9: Main Menu Icons
Parent unit icons Main menu icons Main menu Melodies and soothing sounds Melodies and Soothing Sounds • Select play all melodies, or play one of the five melodies and four soothing sounds. Timer • You can also set the timer to stop playing after 15, 30 or 60 minutes, or playing non- stop. - Page 10 Main menu Temperature • Turn on/off Temperature Alert. Set the parent unit to beep whenever the room temperature detected by the baby unit falls outside of the set temperature range. • Select Minimum temperature for alert range. • Select Maximum temperature for alert range.
-
Page 11: Status Icons
Status icons Current view status. Night vision feature is activated automatically. Motion alert is turned on. Sound detection alert is turned on. Melodies or soothing sound are turned on. Parent unit speaker is muted. Temperature alert is turned on. Real-time temperature indicator Battery status indicator Alert icons •... - Page 12 Sound Detection and Auto Wake Up Adjust sound detection sensitivity When you turn on Sound Detection Alert, you can adjust the baby unit Sound Sensitivity to detect sounds and turn the parent unit on when the screen is switched off or dimmed. When the baby unit detects sounds that exceeds the sound sensitivity setting, the parent unit screen will automatically turn on and the baby unit starts to transmit detected sounds to the parent unit.
-
Page 13: Dim Mode
Dim mode The dim mode helps save parent unit power. The parent unit display will dim to conserve energy after 5 minutes of inactivity when no keys are pressed or alerts are received from the baby unit. 5 minutes inactive Press any button Motion Detection Adjust motion detection sensitivity... -
Page 14: Night Vision
Night vision The baby unit has infrared LEDs that allow you to see your baby clearly at night or in a dark room. When the baby unit being viewed detects low light levels, the infrared LEDs are switched on automatically. The images from the baby unit will be in black and white, appears on the screen. - Page 15 Mount the baby unit on dry wall (optional) Notes NOTES NOTE • Check for reception strength and baby unit’s angle before drilling the holes. • The types of screws and anchors you need depend on the composition of the wall. You may need to purchase the screws and anchors separately to mount your baby units. 1.
-
Page 16: Need Help
- If the QR code is not clearly displayed, adjust your camera’s focus by moving your device closer or further away until it is clear. 2. Search for the model - VM919HD. If you would like to contact us, visit www.vtechbabycare.com/contact-us or scan the QR code. -
Page 17: Frequently Asked Questions
Frequently asked questions Below are the questions most frequently asked about the baby monitor. Why does the baby Try the following (in the order listed) for common cure: monitor not respond 1. Disconnect the power to the baby units and the parent unit. normally? 2. -
Page 18: Customer Service And Product Warranty
3. VTech Electronics Europe Plc will examine the product and if it is found to be defective will be happy to help you. due to faulty materials or workmanship, will replace the product at their discretion. -
Page 19: Disposal Of Batteries And Product
Directive (2014/53/EU) and the UK’s Radio Regulations 2017 on radio systems and telecommunication equipment. VTech Telecommunications Ltd. hereby declares that this Video Monitor LM808-2W is in compliance with the essential requirements and other relevant provisions of EU’s Radio Equipment Directive (2014/53/EU) and UK’s Radio Equipment Regulations 2017. -
Page 20: General Product Care
General product care To keep this product working well and looking good, follow these guidelines: • Avoid placing it near heating appliances and devices that generate electrical noise (for example, motors or fluorescent lamps). • DO NOT expose it to direct sunlight or moisture. •...
