OPERATOR'S
MANUAL
Model DR58
01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DR58 and is the answer not in the manual?

Questions and answers

Summary of Contents for Fieldpiece DR58

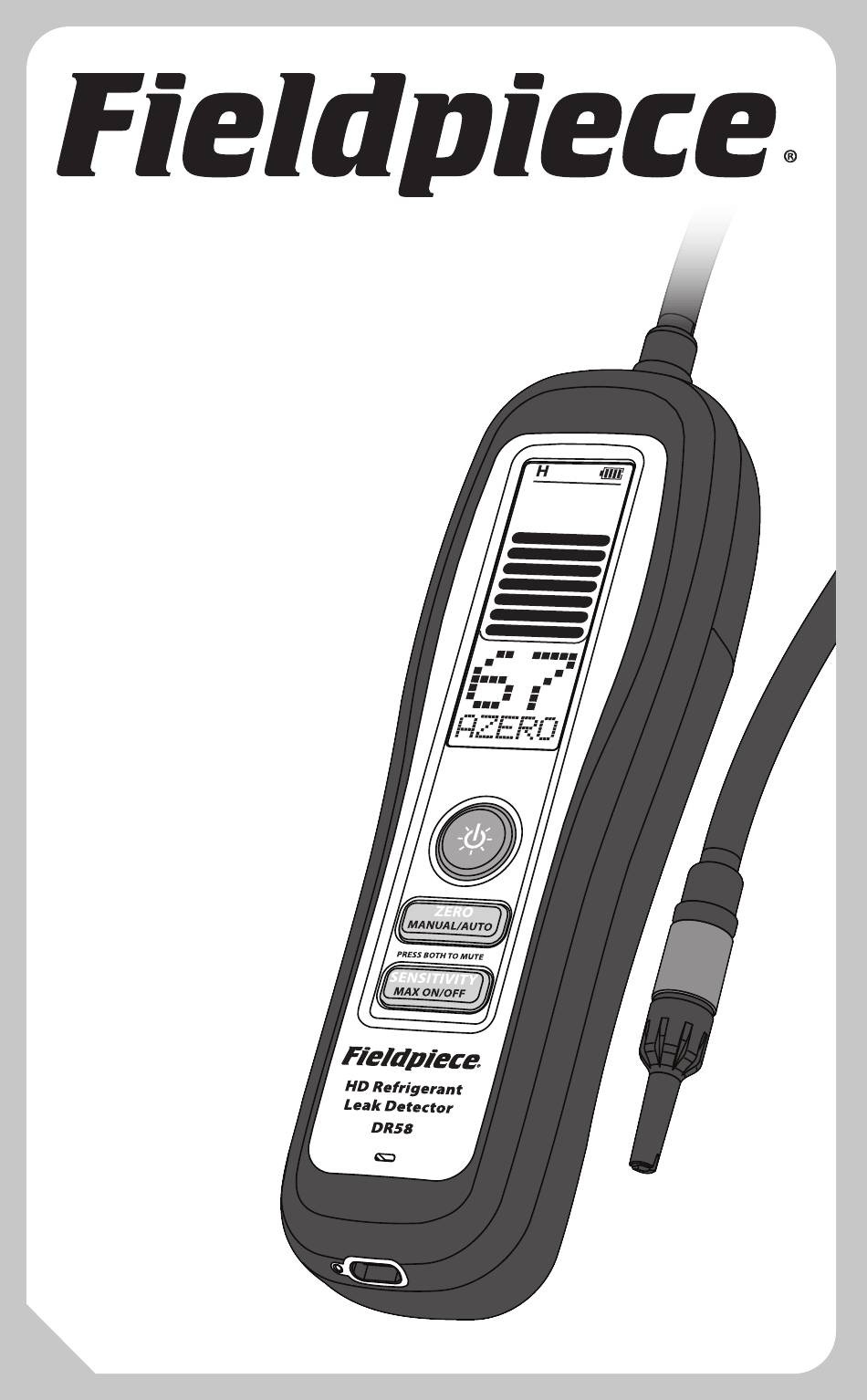

  • Page 1 Heated Diode Refrigerant Leak Detector OPERATOR'S MANUAL Model DR58...
  • Page 2 Description Compact and rugged, the DR58 Heated Diode Refrigerant Leak Detector helps you find leaks fast in the field. Its heated diode sensor detects all HFC, HCFC, CFC, HFO, and blends. Multiple indicators and sensitivity 20x higher than soap bubbles make it easy to track down even the smallest leaks in various environments.
  • Page 3: What's Included

    What's Included DR58 Heated Diode Refrigerant Leak Detector Heated Diode Sensor (RHD1) Blow Molded Carrying Case (ABM2) AC Charger and USB-C Cable (RCA3) 5 x Filter Tips and Gaskets (RFT6) Operator’s Manual 1 Year Limited Warranty...
  • Page 4: Specifications

    Auto Power Off: 10 minutes without detection or button press Operating Environment: 32°F to 104°F (0°C to 40°C); < 75% RH (non-condensing) Storage Temperature: -4°F to 140°F (-20°C to 60°C); < 80% RH Weight: 14 oz (400g) Water Resistance: Designed to IP54 US Patent: www.fieldpiece.com/patents...
  • Page 5: Certifications And Compliance

    Certifications and Compliance EN 14624 Regulatory Compliance Mark Restriction of Hazardous Waste Electrical and Substances Compliant Electronic Equipment UK Conformity Assessed...
  • Page 6 WARNINGS Inhalation of high concentrations of refrigerant vapor can block oxygen to the brain causing injury or death. Do not use this device in a combustible gas atmosphere or with A3 refrigerants such as R-290, propane or R-600, isobutane. Do not block exhaust port or device or will not function properly.
  • Page 7: Quick Start

    1. Install sensor (see next panel for details). 2. Move to a refrigerant-free environment and hold until your DR58 powers on. 3. Allow warm-up (calibration) to complete. Total used sensor hours is also displayed. 4. Begin searching for the leak source.
  • Page 8: Sensor Installation

    Sensor Installation 1. Ensure your DR58 is powered off. 2. Remove the 3 screws of the sensor cap. 3. Pull the sensor cap away from the back case. 4. If replacing, pull out the old sensor. 5. Push new sensor (RHD1) into pin holes. Pin orientation does not matter.
  • Page 9: Maintenance

    Maintenance CLEANING: Clean the exterior with a damp cloth. Do not use detergents or solvents. BATTERY CHARGING: Recharge the internal battery as needed using the USB-C cable. In addition to the AC plug, most generic USB ports supply enough power to charge. The long life Li-ion rechargable battery is permanently installed.
  • Page 10: Functionality Test

    3. With DR58 set to high sensitivity (H), remove the cap and wave the tip over the cap. You should see a very large leak size of approxi- mately "99" and a full bar graph. If not, the...
  • Page 11: Operation

    Press to toggle the blue backlight. Zero Modes (AZERO/MZERO) DR58 starts up in automatic zero mode (AZERO) which sets a new zero point every two seconds, indicated by AZERO blinking twice. Moving closer to the leak source will show the relative increase in concentration, triggering the alarm.
  • Page 12 STATUS BAR - Sensitivity - Mute - Battery MESSAGE LINE SPEAKER EXHAUST PORT (DO NOT BLOCK) CHARGING PORT...
  • Page 13: Maximum Mode

    The recorded max is cleared when the sensitivity is changed or if manually zeroed. Sensitivity (H/M/L) DR58 starts up in high sensitivity (H) which is recommended for most situations. When leaks are difficult to pinpoint due to excess triggering or sensor saturation, press SENSITIVITY to cycle to a lower sensitivity (Medium/Low).
  • Page 14 Red Leak Indicator LED In most situations, the red LED at the tip is easier to monitor than the display. Because the blink rate increases as the relative concentration increases, many leaks can be found without ever viewing the display. LEAK SOURCE...
  • Page 15: Limited Warranty

    Any implied warranties arising from the sale of a Fieldpiece product, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited to the above. Fieldpiece...
  • Page 16: Safety First

    Safety First! For use only by qualified and certified technicians in the safe use, handling, and transporting of refrigerants. Please refer to flammable refrigerant safety guides, regional codes and legislation for more information. WARNINGS – failure to heed these hazards and actions can result in serious injury or death Always use a grounded outlet Always wear Proper Protective Equipment (PPE), which includes...
  • Page 17 Have emergency, evacuation, and fire protection plans Designate and monitor a Temporary Flammable Zone with a 3-meter perimeter Identify and disable all possible ignition sources within this Zone Monitor air with a flammable refrigerant leak detector within this Zone Use a ventilation fan to maintain 5 air exchanges per hour within this Zone Make power connection of the recovery machine and other equipment outside of the Temporary Hazard Zone...
  • Page 18 More HVACR Products from Fieldpiece Vacuum Pumps...
