Summary of Contents for Fieldpiece DR82

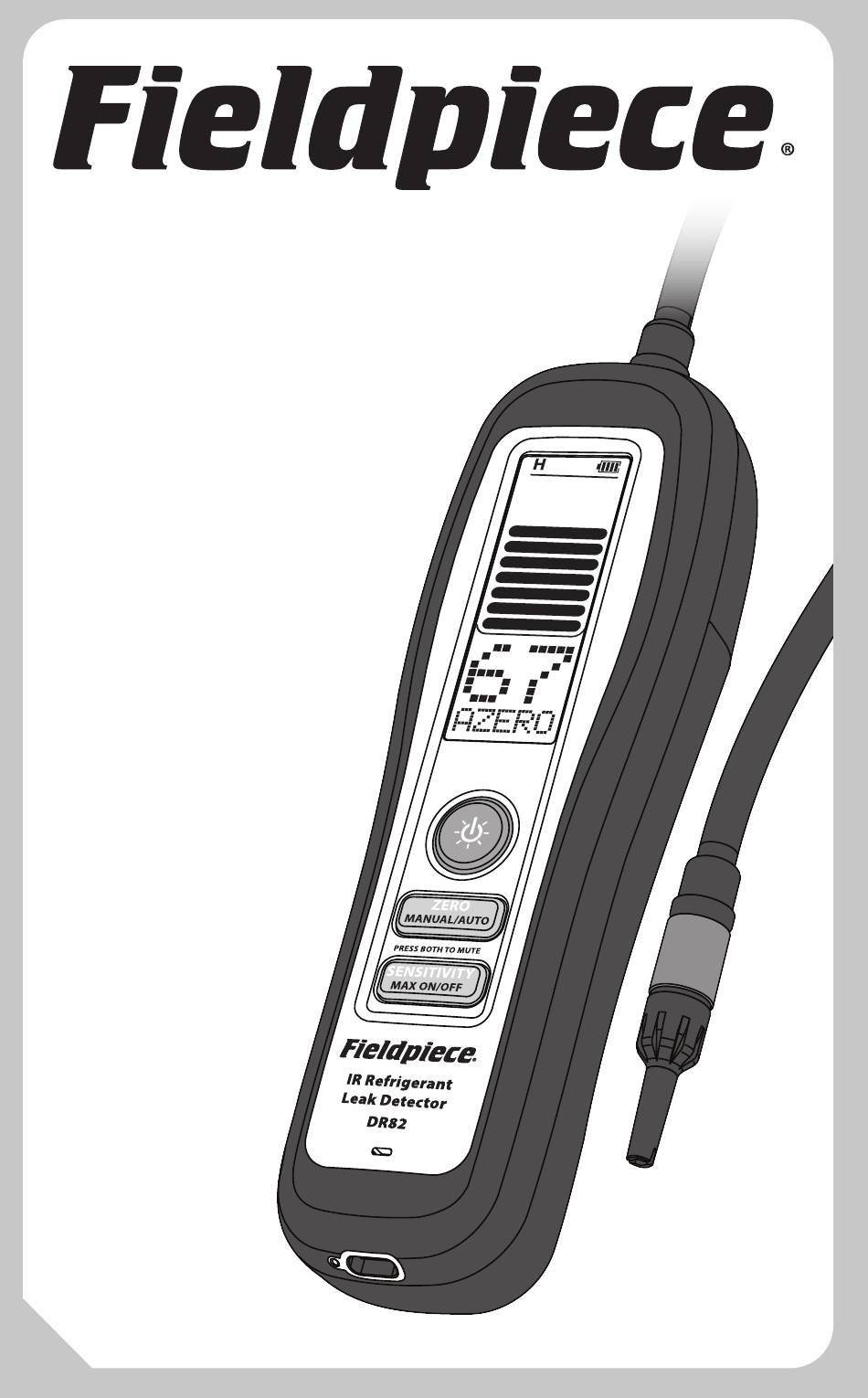

- Page 1 Infrared (IR) Refrigerant Leak Detector OPERATOR'S MANUAL Model DR82...
- Page 2 Description Compact and rugged, the DR82 Infrared Refrigerant Leak Detector helps you find leaks fast in the field. The 10 year infrared (IR) sensor detects all HFC, HCFC, CFC, HFO, and blends. Multiple indicators and sensitivity 20x higher than soap bubbles make it easy to track down even the smallest leaks in various environments.
-
Page 3: What's Included
What's Included DR82 Infrared Refrigerant Leak Detector Blow Molded Carrying Case (ABM2) AC Charger and USB-C Cable (RCA3) 5 x Filter Tips and Gaskets (RFT6) Operator’s Manual 1 Year Limited Warranty... -
Page 4: Specifications
Auto Power Off: 10 minutes without detection or button press Operating Environment: 32°F to 104°F (0°C to 40°C); < 75% RH (non-condensing) Storage Temperature: -4°F to 140°F (-20°C to 60°C); < 80% RH Weight: 14 oz (400g) Water Resistance: Designed to IP54 US Patent: www.fieldpiece.com/patents... -
Page 5: Certifications And Compliance
Certifications and Compliance EN 14624 Regulatory Compliance Mark Restriction of Hazardous Waste Electrical and Substances Compliant Electronic Equipment 5 Commonwealth Ave Woburn, MA 01801 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com... - Page 6 WARNINGS Inhalation of high concentrations of refrigerant vapor can block oxygen to the brain causing injury or death. Do not use this device in a combustible gas atmosphere or with A3 refrigerants such as R-290, propane or R-600, isobutane. Do not block exhaust port or device or will not function properly.
-
Page 7: Quick Start
Quick Start 1. Move to a refrigerant-free environment and hold until your DR82 powers on. 2. Allow warm-up (calibration) to complete. 3. Begin searching for the leak source. Move the tip slowly (~3 inches/sec) and as closely as possible to the suspected refrigerant line. - Page 8 Maintenance FILTER REPLACEMENT: The hydrophobic filter is built into the replaceable tip and should CLEANING: Clean the exterior with a damp be replaced periodically to maximize sensor life cloth. Do not use detergents or solvents. and performance. Five filtered tips (RFT6) are BATTERY CHARGING: Recharge the internal included.
-
Page 9: Functionality Test
3. With DR82 set to high sensitivity (H), remove the cap and wave the tip over the cap. You should see a very large leak size of approxi- mately "99" and a full bar graph. If not, the... -
Page 10: Operation
Press to toggle the blue backlight. Zero Modes (AZERO/MZERO) DR82 starts up in automatic zero mode (AZERO) which sets a new zero point every 4-5 seconds, indicated by a double beep. Moving closer to the leak source will show the relative increase in concentration, triggering the alarm. - Page 11 STATUS BAR - Sensitivity - Mute - Battery MESSAGE LINE SPEAKER EXHAUST PORT (DO NOT BLOCK) CHARGING PORT...
- Page 12 The recorded max is cleared when the sensitivity is changed or if manually zeroed. Sensitivity (H/M/L/T) DR82 starts up in high sensitivity (H) which is recommended for most situations. When leaks are difficult to pinpoint due to excess triggering or sensor saturation, press SENSITIVITY to cycle to another sensitivity (Medium/Low/Turbo).
- Page 13 Red Leak Indicator LED In most situations, the red LED at the tip is easier to monitor than the display. Because the blink rate increases as the relative concentration increases, many leaks can be found without ever viewing the display. LEAK SOURCE...
-
Page 14: Limited Warranty
Any implied warranties arising from the sale of a Fieldpiece product, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited to the above. Fieldpiece... - Page 15 More HVACR Products from Fieldpiece Digital Manifolds Vacuum Pumps...
- Page 16 Job Link® System Clamp Meters...
- Page 17 Job Link® System Probes Refrigerant Recovery Machines...
