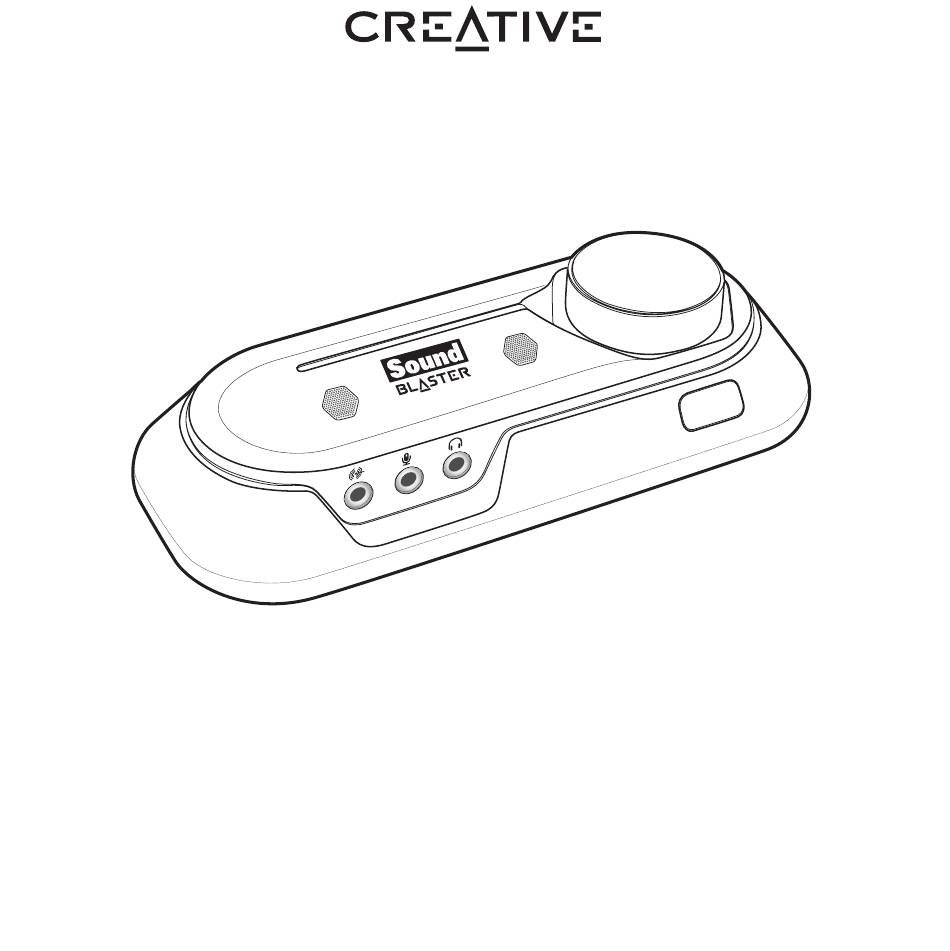

- Page 1 ® Sound Blaster Omni Surround 5.1 Model No.: SB1560...
-
Page 2: Setting Up Your Hardware
Setting up your hardware (a) USB port (c) Desktop computer (b) USB cable (d) Notebook computer NOTE The USB cable can be connected to your computer while the computer is turned on. The USB port(s) can be found on the front, side or back panel of your computer. -
Page 3: Installing Software
Click Start > Computer. 1. Using your web browser, visit ii. Right-click the CD or DVD drive icon, www.creative.com/support and locate and then click Open AutoPlay. the software package for the Mac OS. 2. To complete the installation, follow the 2. - Page 4 Connecting speakers 2.1 Speakers 5.1 Speakers Left Right Rear c/sub Left Right Rear c/sub Optical Out Optical Out Line Out Line Out (a) Y-Splitter (a) Y-Splitter cable cable (b) Analog speaker cable* (b) Analog speaker cable* (c) Front, rear and center/subwoofer audio input jacks (c) Audio input jack...
-
Page 5: Your Audio Device
Your Audio Device (a) Volume control dial - Turn to adjust volume - Press down to mute (d) Power LED (b) Infrared receiver (c) Internal microphone array... -
Page 6: Your Remote Control
Your Remote Control Replacing the battery Remove the plastic strip before using the remote control. To replace the battery, refer to the diagram below. RM-820... -
Page 7: Using Your Remote Control
Using your remote control Shutdown Mute on/off Not applicable. Back/Menu Volume up/down Not applicable. Menu Navigation Scroll up or down in a menu. Press OK to execute selected menu option. Shuffle Return Returns to a previous Repeat submenu or function. Previous Next Plays the previous track. - Page 8 Optional Connections c/sub Left Right Rear Optical Out Line Out (i) Optical cable* (c) Analog (j) RCA to RCA audio stereo cable* cable* (a) Headphones (b) Microphone (f) Home theater receiver (g) MD recorder (h) DAT recorder (d) Turntable (at line level) (e) MP3, CD or Cassette players (k) Hi-fi system NOTE...
- Page 9 Sound Blaster Omni Control Panel With the SBX Pro Studio, you can: - Adjust master volume levels - Adjust volume mixer settings - Configure playback settings for your speakers or headphones - Adjust equalizer settings - Enable Dolby Digital Live encoding - Enhance audio playback with SBX Pro Studio enhancements such as immersion control, dynamic range restoration, low-frequency boost, dialog boost, and automatic volume levelling.
- Page 10 Keep this document for future reference. Copyright © 2013 Creative Technology Ltd. All rights reserved. Creative, the Creative logo, Sound Blaster, the Sound Blaster logo, SBX Pro Studio, the SBX logo and CrystalVoice are trademarks or registered trademarks of Creative Technology Ltd. in the United States and/or other countries.
- Page 11 PN 03SB156000003 Rev.A...
