IS-25AUB
Installation Instructions • Instrucciones de instalación • Instructions d'installation
Series LF25AUB-Z3
S eries LF25AUB-Z3
S éries LF25AUB-Z3

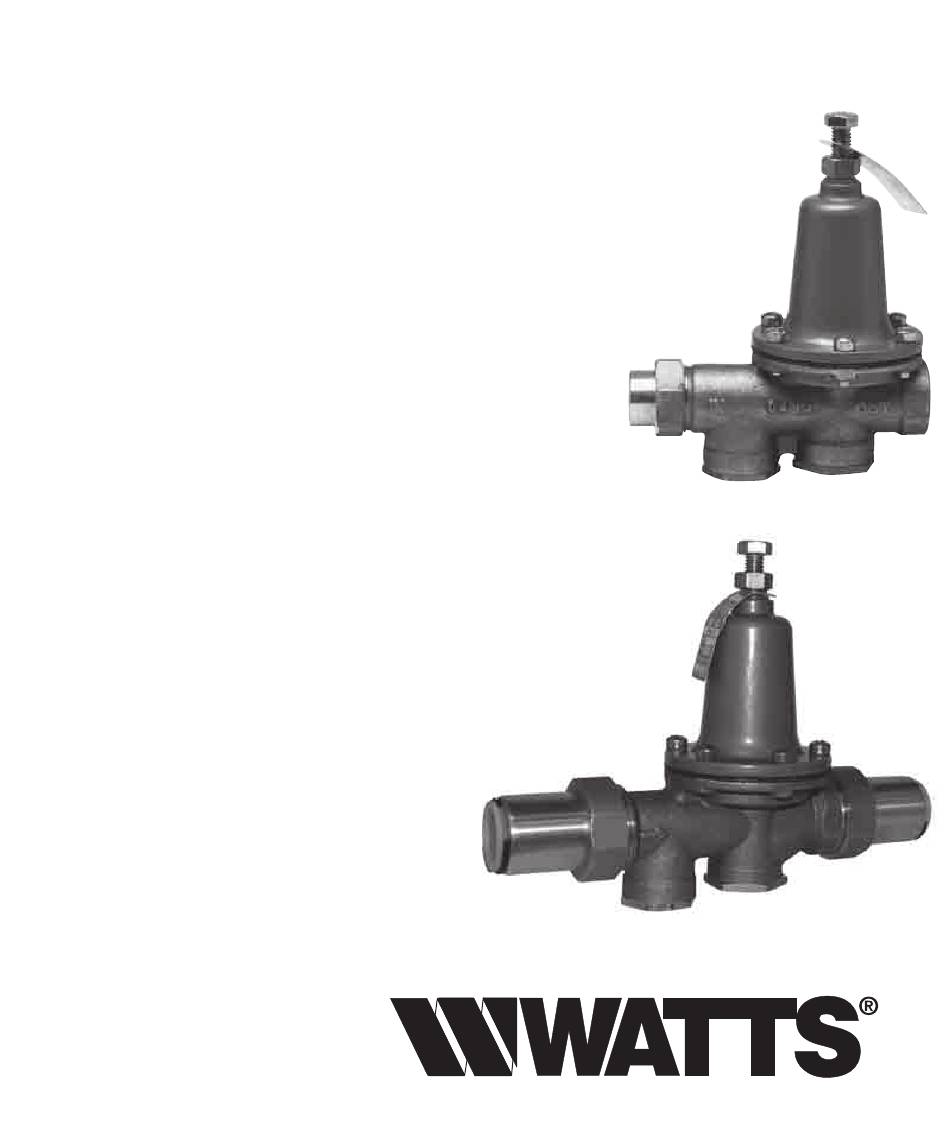

Water Pressure Reducing Valve
Válvula reductora de la
presión del agua
LF25AUB-Z3
Régulateur de pression d'eau
⁄
" - 2" (15-50mm)
1
2
LF25AUB-DU-QC-Z3
Advertisement
Table of Contents
Related Manuals for Watts LF25AUB-Z3
Summary of Contents for Watts LF25AUB-Z3
- Page 1 IS-25AUB Installation Instructions • Instrucciones de instalación • Instructions d’installation Series LF25AUB-Z3 S eries LF25AUB-Z3 S éries LF25AUB-Z3 Water Pressure Reducing Valve Válvula reductora de la presión del agua LF25AUB-Z3 Régulateur de pression d'eau ⁄ " - 2" (15-50mm) LF25AUB-DU-QC-Z3...
-
Page 2: Installation Instructions
PLY WITH PROPER INSTALLATION AND MAINTENANCE INSTRUCTIONS COULD RESULT IN PRODUCT FAILURE WHICH CAN CAUSE PROPERTY DAMAGE, PERSONAL INJURY AND/OR DEATH. Watts is not responsible for damages resulting from improper installation and/or maintenance. Local building or plumbing codes may require modifications to the information provided. -
Page 3: Bypass Feature
" - 1" sizes only are (101) - Bottom Plug Gasket† † Rubber Parts non-replaceable. (12) - Bottom Plug * Replaceable Repair Kits ** Non-Replaceable Kit for Series LF25AUB-Z3 includes all items shown above † ORDERING CODE KIT NO. SIZE (DN) 0125362 ⁄ " LF25AUB-RK ⁄... -
Page 4: Typical Installation
Typical Installation WATTS PRESSURE GAUGE (2 PLACES) WATER METER WATTS TO FIXTURES SUPPLY WATTS WATTS SHUTOFF VALVE BACKFLOW PRESSURE PREVENTER (2 PLACES) REGULATOR Series Installation Series installations are recommended where very high supply pressure must be reduced to a very low downstream pressure. -
Page 5: Troubleshooting
If the increased pressure is caused by thermal expansion, the pressure will immediately be relieved and the system will return to the set pressure. Watts offers a pressure test gauge, model 276H300 to assist you in determining if you have high water pressure. - Page 6 For more information: www.watts.com/prop65 Limited Warranty: Watts Regulator Co. (the “Company”) warrants each product to be free from defects in material and workmanship under normal usage for a period of one year from the date of original ship- ment.
