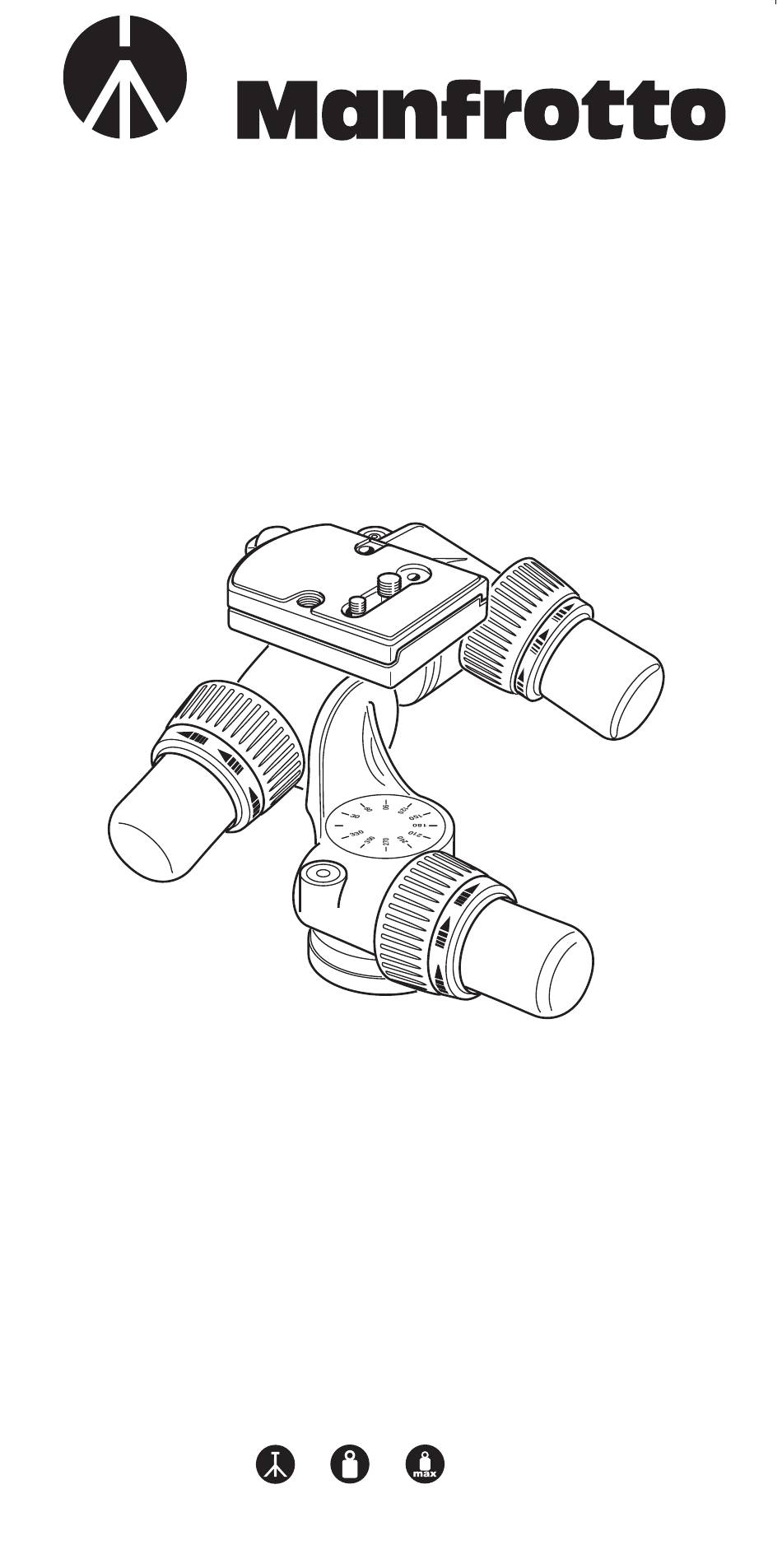

- Page 1 Made in Italy INSTRUCTIONS 16 cm 1,6 kg 7 kg 6 1/4” 3.5 lbs 15 lbs...
- Page 2 Made in Italy...
- Page 3 Made in Italy 30° 90° Made in Italy 360° 30° Made in Italy Made in Italy 90°...
- Page 4 ASSEMBLING HEAD ON TRIPOD Assemble the head on the tripod using 3/8” female thread “G”. The top plate on Manfrotto tripods are equipped with three set screws “V” which clamp against the base of the head to ensure effective and secure locking.
- Page 5 ASSEMBLING CAMERA ON PLATE Fix the camera onto the plate "I" by screwing home the camera screw "H" or “L” into the Cameras' threaded hole WITHOUT APPLYING FORCE. The screw "H" or “L” slides along the slit "R" allowing you to align the camera lens with the plate "I"...
- Page 6 RAPID 1 8 9 10 ADJUSTMENT & Use the following control rings (fig. 1) “D” = Pan “E” = Tilt “F” = Levelling Rapid adjustment can be made by using a hand to rotate the control wheel ("D", "E", "F") through 90° following the arrows (fig.
